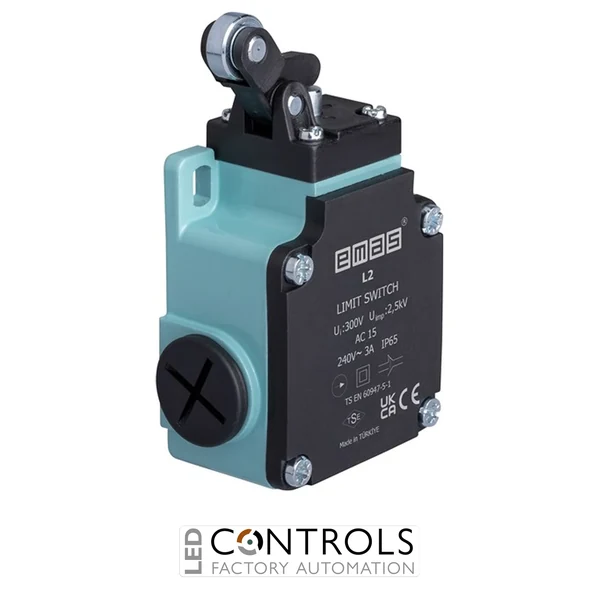

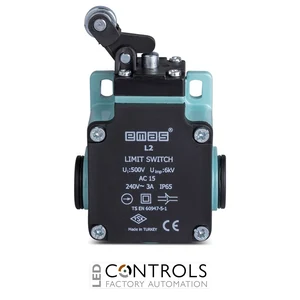

EMAS L2K13MIM411 Limit Switch – L2 Metal Body 14mm Metal Roller Lever Snap Action 1NO+1NC

The EMAS L2K13MIM411 Limit Switch is a durable industrial position detection switch designed for reliable performance in automation, machinery, and control applications. Featuring an L2 metal body construction, a 14 mm metal roller lever actuator, and a 1NO + 1NC snap action contact configuration, this limit switch provides accurate switching and dependable operation in demanding industrial environments.

Built with a metal body and plastic cover design, the EMAS L2K13MIM411 offers high mechanical durability, IP65 protection, interchangeable contact blocks, and multiple actuator options. It is suitable for industrial machinery, automation systems, conveyor equipment, and position monitoring applications.

Product Features

Brand: EMAS
Model: L2K13MIM411
Product Type: Industrial Limit Switch
Series: L2 Metal Body
Actuator Type: 14 mm Metal Roller Lever
Contact Action: Snap Action
Contact Configuration: 1NO + 1NC
Rated Operational Current: 3 A at 240 V AC
Usage Category: AC15
Mechanical Life: Minimum 10,000,000 operations
Electrical Life: Minimum 1,000,000 operations
Protection Rating: IP65
Operating Temperature: -25°C to +80°C
Standards: TS EN 60947-5-1, UL 508, VDE 0660

Applications

The EMAS L2K13MIM411 limit switch is suitable for a wide range of industrial automation and machine control applications, including:

Industrial machinery position sensing
Automation and control systems
Conveyor systems
Material handling equipment
Production line monitoring
Machine safety circuits

Why Choose EMAS L2K13MIM411?

The EMAS L2K13MIM411 combines rugged construction, reliable snap action switching, and a durable metal roller lever actuator for accurate position monitoring. With IP65 protection, long mechanical life, and industrial-grade components, it provides a dependable solution for demanding automation applications.

Technical Specifications

Specification Value Manufacturer	EMAS
Part Number	L2K13MIM411
Series	L2 Metal Body
Body Construction	Metal Body with Plastic Cover
Actuator Material	Metal
Actuator Diameter	14 mm
Actuator Type	Metal Roller Lever
Contact Material	AgNi
Contact Configuration	1NO + 1NC
Rated Current	3 A (240 V AC)
Insulation Voltage	300 V
Impulse Withstand Voltage	2.5 kV
Isolation Resistance	10 MΩ (500 V DC)
Operating Frequency	Mechanical 3000 operations/hour, Electrical 1800 operations/hour
Protection Degree	IP65
Cable Section	1 - 2.5 mm²
Cable Entries	3 cable entries suitable for PG13.5 or M20x1.5 glands
Contacts	1NO + 1NC
IP Rating	IP65
Actuator Type	Roller lever

Frequently Asked Questions

What is the EMAS L2K13MIM411?

The EMAS L2K13MIM411 is an L2 series industrial limit switch featuring a 14 mm metal roller lever actuator, snap action operation, and 1NO + 1NC contacts.

What type of actuator does the L2K13MIM411 use?

This model uses a 14 mm metal roller lever actuator designed for reliable mechanical position detection.

What is the protection rating of the EMAS L2K13MIM411?

The EMAS L2K13MIM411 has an IP65 protection rating, making it suitable for industrial environments requiring protection against dust and water jets.

What are the contact specifications of this limit switch?

The switch features a snap action mechanism with one normally open contact and one normally closed contact (1NO + 1NC).
