Why Choose the EMAS L2K13MUM331 EMAS L2 SERIES LMT SW. SNP ACT. 1NC+1NO-MTL LINEAR ROL.? The EMAS L2K13MUM331 EMAS L2 SERIES LMT SW. SNP ACT. 1NC+1NO-MTL LINEAR ROL. (L2K13MUM331) is a purpose-built solution for demanding industrial environments. It delivers long-term reliability, is easy to install, and supports a wide range of automation or safety applications. Key Takeaways Heavy-duty industrial construction Simple, secure installation Frequently Asked Questions About the EMAS L2K13MUM331 EMAS L2 SERIES LMT SW. SNP ACT. 1NC+1NO-MTL LINEAR ROL. What is the rated voltage? What is the current rating? What is the power rating? What are the typical applications? Does it meet industry certifications? Speed & Safety Benefits Quick installation: Designed for fast, hassle-free integration into control panels Reliable operation: Engineered for continuous use in demanding applications Certified safe: Meets or exceeds CE and RoHS requirements Key Features of the EMAS L2K13MUM331 EMAS L2 SERIES LMT SW. SNP ACT. 1NC+1NO-MTL LINEAR ROL. Industrial-grade reliability Manufactured by a leading brand Meets CE and RoHS standards EMAS L2K13MUM331 EMAS L2 SERIES LMT SW. SNP ACT. 1NC+1NO-MTL LINEAR ROL. Overview Refer to datasheet for detailed product overview. Choose the EMAS L2K13MUM331 EMAS L2 SERIES LMT SW. SNP ACT. 1NC+1NO-MTL LINEAR ROL. (L2K13MUM331) for reliability, compliance, and robust performance in every industrial application. Frequently Asked Questions What is the rated voltage? See product datasheet. What is the current rating? See product datasheet. What is the power rating? See product datasheet. What are the typical applications? Ideal for industrial automation, panels, and control systems. Does it meet industry certifications? Yes, this product is CE and RoHS compliant. Refer to datasheet for more information.
£36.67

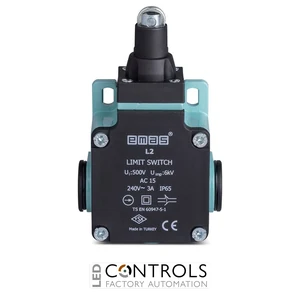

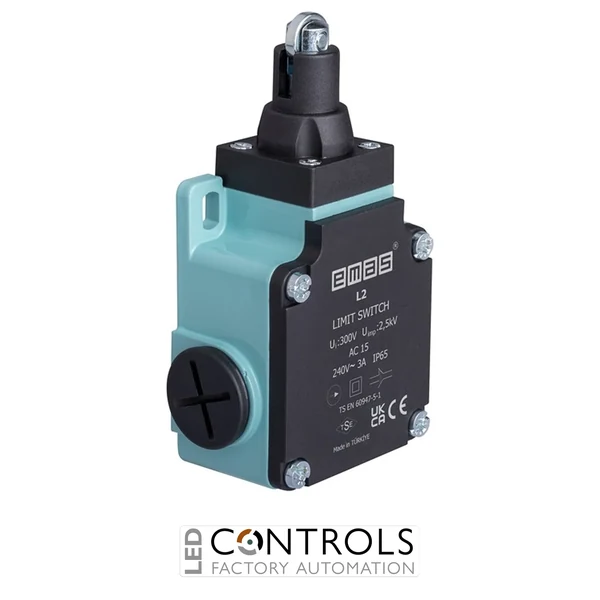

The EMAS L2K13MUM331 Limit Switch is a rugged industrial position detection switch designed for precise and reliable operation in automation, machinery, and control applications. Featuring an L2 metal body construction, a 13 mm metal roller plunger actuator, and a 1NO + 1NC snap action contact configuration, this limit switch delivers dependable switching performance for demanding industrial environments.
Designed with a durable metal body and plastic cover, the EMAS L2K13MUM331 provides high mechanical endurance, IP65 protection, interchangeable contact blocks, and flexible actuator options. It is suitable for industrial machinery, automation systems, conveyor equipment, and position monitoring applications.
| Specification | Value |
|---|---|
| Manufacturer | EMAS |
| Part Number | L2K13MUM331 |
| Series | L2 Metal Body |
| Body Construction | Metal Body with Plastic Cover |
| Actuator Material | Metal |
| Actuator Diameter | 13 mm |
| Actuator Type | Metal Roller Plunger |
| Contact Material | AgNi |
| Contact Configuration | 1NO + 1NC |
| Rated Current | 3 A (240 V AC) |
| Insulation Voltage | 300 V |
| Impulse Withstand Voltage | 2.5 kV |
| Isolation Resistance | 10 MΩ (500 V DC) |
| Operating Frequency | Mechanical 3000 operations/hour, Electrical 1800 operations/hour |
| Protection Degree | IP65 |
| Cable Section | 1 - 2.5 mm² |
| Cable Entries | 3 cable entries suitable for PG13.5 or M20x1.5 glands |
The EMAS L2K13MUM331 limit switch is suitable for various industrial automation and machine control applications, including:
The EMAS L2K13MUM331 combines rugged industrial construction, reliable snap action switching, and a precision metal roller plunger actuator for accurate position detection. With IP65 protection, long mechanical life, and industrial-grade components, it provides a dependable solution for demanding automation applications.
The EMAS L2K13MUM331 is an L2 series industrial limit switch featuring a 13 mm metal roller plunger actuator, snap action operation, and 1NO + 1NC contacts.
This model uses a 13 mm metal roller plunger actuator designed for accurate mechanical position detection.
The EMAS L2K13MUM331 has an IP65 protection rating, making it suitable for industrial environments requiring protection against dust and water jets.
The switch features a snap action mechanism with one normally open contact and one normally closed contact (1NO + 1NC).
