EMAS L2K13PUM211 EMAS L2 SERIES LMT SW. SNP ACT. 1NC+1NO- MTL PLUNGER

Why Choose the EMAS L2K13PUM211 EMAS L2 SERIES LMT SW.

SKU: L2K13PUM211MPN: L2K13PUM211

List Price £34.65 ex VAT

Your Price (ex VAT)

£34.65

Manufacturer Lead Time Please contact us for a delivery time before you order

Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Quantity:

SUBTOTAL (EX VAT) £34.65

Trade pricing is personalised to your account

Manufacturer Lead Time

£34.65

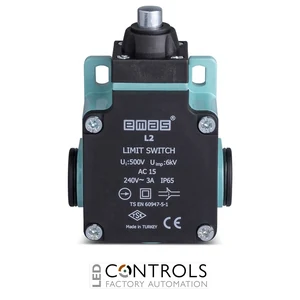

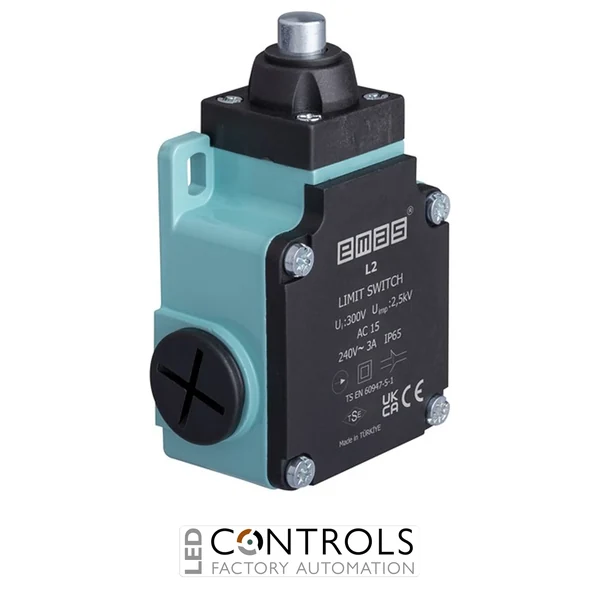

EMAS L2K13PUM211 Limit Switch – L2 Metal Body 10mm Metal Plunger Snap Action 1NO+1NC

The EMAS L2K13PUM211 Limit Switch is a compact and durable industrial position sensing switch designed for reliable operation in automation, machinery, and control applications. Featuring an L2 metal body construction, a 10 mm metal plunger actuator, and a 1NO + 1NC snap action contact configuration, this limit switch provides precise switching performance and dependable operation in demanding industrial environments.

Designed for industrial reliability, the EMAS L2K13PUM211 features a metal body with plastic cover, interchangeable contact block, multiple actuator options, three cable entries, and IP65 protection. It is suitable for machinery, automation equipment, production lines, and industrial control systems requiring accurate position detection.

Product Features

Brand: EMAS
Model: L2K13PUM211
Product Type: Industrial Limit Switch
Series: L2 Metal Body
Actuator Type: 10 mm Metal Plunger
Contact Action: Snap Action
Contact Configuration: 1NO + 1NC
Rated Operational Current: 3 A at 240 V AC
Usage Category: AC15
Mechanical Life: Minimum 10,000,000 operations
Electrical Life: Minimum 1,000,000 operations
Protection Rating: IP65
Operating Temperature: -25°C to +80°C
Standards: TS EN 60947-5-1, UL 508, VDE 0660

Applications

The EMAS L2K13PUM211 limit switch is suitable for various industrial automation and machine control applications, including:

Industrial machinery position sensing
Automation and control systems
Conveyor systems
Material handling equipment
Production line monitoring
Machine safety circuits

Why Choose EMAS L2K13PUM211?

The EMAS L2K13PUM211 combines rugged industrial construction, reliable snap action switching, and a precision metal plunger actuator for accurate position detection. With IP65 protection, high mechanical endurance, and industrial-grade components, it provides a dependable solution for demanding automation applications.

Technical Specifications

Specification Value Manufacturer	EMAS
Part Number	L2K13PUM211
Series	L2 Metal Body
Body Construction	Metal Body with Plastic Cover
Actuator Material	Metal
Actuator Diameter	10 mm
Actuator Type	Metal Plunger
Contact Material	AgNi
Contact Configuration	1NO + 1NC
Rated Current	3 A (240 V AC)
Insulation Voltage	300 V
Impulse Withstand Voltage	2.5 kV
Isolation Resistance	10 MΩ (500 V DC)
Operating Frequency	Mechanical 3000 operations/hour, Electrical 1800 operations/hour
Protection Degree	IP65
Cable Section	1 - 2.5 mm²
Cable Entries	3 cable entries suitable for PG13.5 or M20x1.5 glands
Contacts	1NO + 1NC
IP Rating	IP65
Actuator Type	Plunger

Frequently Asked Questions

What is the EMAS L2K13PUM211?

The EMAS L2K13PUM211 is an L2 series industrial limit switch featuring a 10 mm metal plunger actuator, snap action operation, and 1NO + 1NC contacts.

What type of actuator does the L2K13PUM211 use?

This model uses a 10 mm metal plunger actuator designed for accurate mechanical position detection.

What is the protection rating of the EMAS L2K13PUM211?

The EMAS L2K13PUM211 has an IP65 protection rating, making it suitable for industrial environments requiring protection against dust and water jets.

What are the contact specifications of this limit switch?

The switch features a snap action mechanism with one normally open contact and one normally closed contact (1NO + 1NC).
