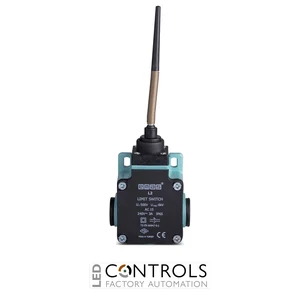

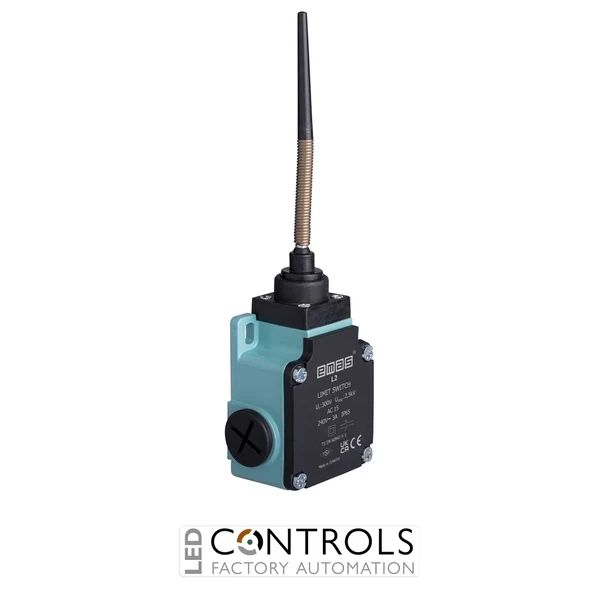

EMAS L2K13SOP101 IP65 metal-body snap-action limit switch with a 7 mm pointed plastic-tip spring lever, replaceable 1NO+1NC contacts and a 3 A AC-15 rating at 240 V AC.
£37.55
The EMAS L2K13SOP101 is a robust industrial snap-action limit switch designed for reliable detection of moving machine parts in automation and mechanical control systems. As part of the EMAS L2 metal-body series, it combines an aluminium housing with a plastic cover and a flexible metal spring lever actuator.
The actuator has a pointed plastic tip measuring 7 mm, allowing the switch to respond to movement from components that may not follow a perfectly fixed path. Its 1NO+1NC snap-action contact block changes state rapidly when the operating point is reached, supporting dependable control and position-monitoring functions.
Rated for 3 A at 240 V AC in AC-15 applications, the L2K13SOP101 provides a minimum mechanical life of 10,000,000 operations. Its IP65 enclosure, replaceable contact block and three cable entries make it suitable for demanding industrial machinery and automation installations.
Spring lever limit switches are well suited to machinery where the actuating component may approach from slightly different positions. The flexible lever deflects when contacted, operating the internal snap-action mechanism without requiring the rigid alignment associated with a conventional plunger.
The EMAS L2K13SOP101 uses a replaceable 1NO+1NC contact block to provide rapid electrical switching at its operating point. Its metal body, flexible actuator and multiple cable-entry options support installation across a wide range of industrial machinery.
| Manufacturer | EMAS |
|---|---|
| Series | L2 Metal Body |
| Model | L2K13SOP101 |
| Product type | Industrial limit switch |
| Body material | Aluminium |
| Cover material | Plastic |
| Actuator type | Metal spring lever |
| Actuator tip | Pointed plastic tip |
| Actuator tip size | 7 mm |
| Contact action | Snap action |
| Contact configuration | 1NO+1NC |
| Contact material | AgNi |
| Rated operational current | 3 A at 240 V AC |
| Utilisation category | AC-15 |
| Rated insulation voltage | 300 V |
| Rated impulse withstand voltage | 2.5 kV |
| Dielectric strength, body to contacts | 1,890 V AC |
| Dielectric strength, contact to contact | 1,890 V AC |
| Insulation resistance | 10 MΩ at 500 V DC |
| Mechanical life | Minimum 10,000,000 operations |
| Electrical life | Minimum 1,000,000 operations |
| Mechanical operating frequency | 3,000 operations/hour |
| Electrical operating frequency | 1,800 operations/hour |
| Operating temperature | -25 °C to +80 °C |
| Protection rating | IP65 |
| Pollution degree | 3 |
| Cable connection section | 1–2.5 mm² |
| Terminal tightening torque | 1.5 Nm |
| Short-circuit breaking capacity | 1 kA |
| Cable entries | 3 entries suitable for PG13.5 or M20×1.5 optional glands |
This limit switch detects the position or movement of machine components in industrial automation, conveyor and material handling applications.
It uses a flexible metal spring lever with a 7 mm pointed plastic tip.
The switch contains a replaceable 1NO+1NC snap-action contact block.
The L2K13SOP101 is rated for 3 A at 240 V AC in the AC-15 utilisation category.
The switch has an IP65 protection rating, supporting use in industrial environments exposed to dust and water jets.
EMAS L2 series limit switches provide durable metal-body construction, reliable snap-action switching and versatile actuator options for industrial machinery and automation systems.{ "@context": "https://schema.org/", "@type": "Product", "name": "EMAS L2K13SOP101 Spring Lever Limit Switch 1NO+1NC", "sku": "L2K13SOP101", "mpn": "L2K13SOP101", "brand": { "@type": "Brand", "name": "EMAS" }, "category": "Industrial Limit Switches", "description": "EMAS L2K13SOP101 IP65 metal-body snap-action limit switch with a 7 mm pointed plastic-tip spring lever, replaceable 1NO+1NC contacts and a 3 A AC-15 rating at 240 V AC.", "additionalProperty": [ { "@type": "PropertyValue", "name": "Actuator", "value": "Metal spring lever with pointed plastic tip" }, { "@type": "PropertyValue", "name": "Actuator tip size", "value": "7 mm" }, { "@type": "PropertyValue", "name": "Contact configuration", "value": "1NO+1NC snap action" }, { "@type": "PropertyValue", "name": "Rated operational current", "value": "3 A at 240 V AC" }, { "@type": "PropertyValue", "name": "Mechanical life", "value": "Minimum 10,000,000 operations" }, { "@type": "PropertyValue", "name": "Protection rating", "value": "IP65" } ] } { "@context": "https://schema.org", "@type": "FAQPage", "inLanguage": "en-GB", "mainEntity": [ { "@type": "Question", "name": "What is the EMAS L2K13SOP101 used for?", "acceptedAnswer": { "@type": "Answer", "text": "This limit switch detects the position or movement of machine components in industrial automation, conveyor and material handling applications." } }, { "@type": "Question", "name": "What actuator does the L2K13SOP101 use?", "acceptedAnswer": { "@type": "Answer", "text": "It uses a flexible metal spring lever with a 7 mm pointed plastic tip." } }, { "@type": "Question", "name": "What contacts are included?", "acceptedAnswer": { "@type": "Answer", "text": "The switch contains a replaceable 1NO+1NC snap-action contact block." } }, { "@type": "Question", "name": "What electrical rating does the switch have?", "acceptedAnswer": { "@type": "Answer", "text": "The L2K13SOP101 is rated for 3 A at 240 V AC in the AC-15 utilisation category." } }, { "@type": "Question", "name": "What protection rating does the L2K13SOP101 provide?", "acceptedAnswer": { "@type": "Answer", "text": "The switch has an IP65 protection rating, supporting use in industrial environments exposed to dust and water jets." } } ] }
