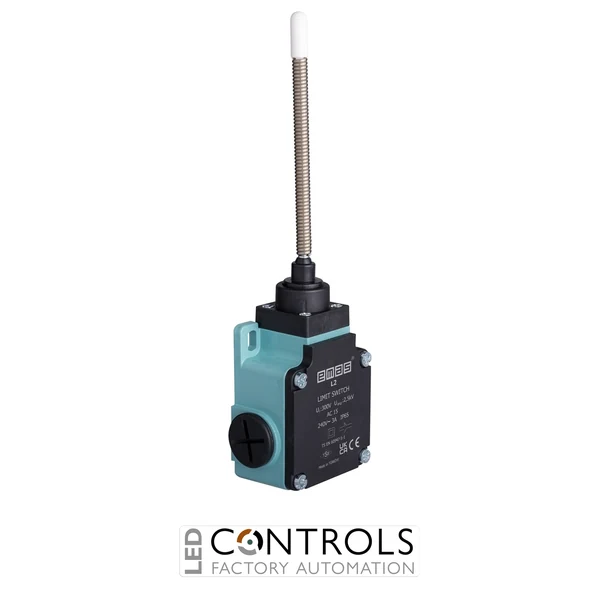

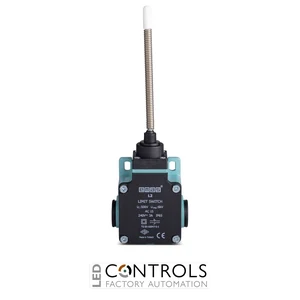

Why Choose the EMAS L2K13SOP102 Spring Lever Limit Switch?
The EMAS L2K13SOP102 is a robust industrial snap-action limit switch designed for reliable detection of moving machine parts in automation and mechanical control systems. As part of the EMAS L2 metal-body series, it combines a durable metal housing with a plastic cover and a flexible spring lever actuator.
The actuator has a blunt plastic tip with a diameter of 7 mm, providing a broader contact surface for dependable mechanical detection. Its 1NO+1NC snap-action contact block changes state rapidly when the operating point is reached, supporting reliable control and position-monitoring functions.
Rated for 3 A at 240 V AC in AC-15 applications, the L2K13SOP102 provides a minimum mechanical life of 10,000,000 operations. Its IP65 enclosure, replaceable contact block and three cable entries make it suitable for demanding industrial machinery and automation installations.
Key Advantages
- Reliable snap-action limit switch for industrial position detection.
- Flexible spring lever accommodates variable actuation paths.
- 7 mm blunt plastic tip provides a broad contact surface.
- 1NO+1NC contact configuration supports control and monitoring circuits.
- Minimum mechanical life of 10,000,000 operations.
- IP65 protection supports use in demanding industrial environments.
Key Features
- EMAS L2 metal-body limit switch series.
- Metal body with plastic cover.
- Spring lever actuator.
- 7 mm blunt plastic actuator tip.
- 1NO+1NC snap-action contacts.
- Replaceable contact block.
- Three cable entries for flexible installation.
- -25 °C to +80 °C operating temperature.
Reliable Position Detection for Industrial Machinery
Spring lever limit switches are well suited to machinery where the actuating component may approach from slightly different positions. The flexible lever deflects when contacted, operating the internal snap-action mechanism without requiring the rigid alignment associated with a conventional plunger.
The EMAS L2K13SOP102 uses a replaceable 1NO+1NC contact block to provide rapid electrical switching at its operating point. Its metal body, blunt plastic actuator tip and multiple cable-entry options support installation across a wide range of industrial machinery.
Typical Applications
- Conveyor position and product detection.
- Machine travel and end-position monitoring.
- Packaging and processing machinery.
- Material handling and transfer systems.
- Automated production equipment.
- OEM machinery and industrial control systems.
