Why Choose the EMAS L4K16MIP211 EMAS L4 SERIES LIMIT SW.-SNAP ACTION 2NC+2NO-PL. ROLLER? The EMAS L4K16MIP211 EMAS L4 SERIES LIMIT SW.-SNAP ACTION 2NC+2NO-PL. ROLLER (L4K16MIP211) is a purpose-built solution for demanding industrial environments. It delivers long-term reliability, is easy to install, and supports a wide range of automation or safety applications. Key Takeaways Heavy-duty industrial construction Simple, secure installation Frequently Asked Questions About the EMAS L4K16MIP211 EMAS L4 SERIES LIMIT SW.-SNAP ACTION 2NC+2NO-PL. ROLLER What is the rated voltage? What is the current rating? What is the power rating? What are the typical applications? Does it meet industry certifications? Speed & Safety Benefits Quick installation: Designed for fast, hassle-free integration into control panels Reliable operation: Engineered for continuous use in demanding applications Certified safe: Meets or exceeds CE and RoHS requirements Key Features of the EMAS L4K16MIP211 EMAS L4 SERIES LIMIT SW.-SNAP ACTION 2NC+2NO-PL. ROLLER Industrial-grade reliability Manufactured by a leading brand Meets CE and RoHS standards EMAS L4K16MIP211 EMAS L4 SERIES LIMIT SW.-SNAP ACTION 2NC+2NO-PL. ROLLER Overview Refer to datasheet for detailed product overview. Choose the EMAS L4K16MIP211 EMAS L4 SERIES LIMIT SW.-SNAP ACTION 2NC+2NO-PL. ROLLER (L4K16MIP211) for reliability, compliance, and robust performance in every industrial application. Frequently Asked Questions What is the rated voltage? See product datasheet. What is the current rating? See product datasheet. What is the power rating? See product datasheet. What are the typical applications? Ideal for industrial automation, panels, and control systems. Does it meet industry certifications? Yes, this product is CE and RoHS compliant. Refer to datasheet for more information.
£88.25

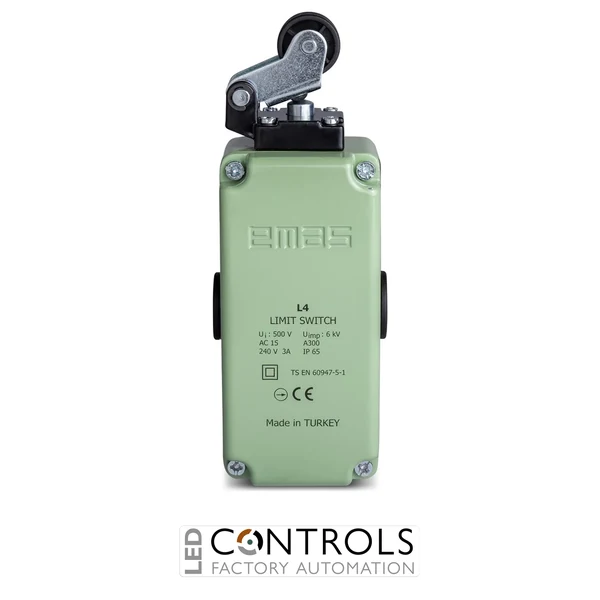

The EMAS L4K16MIP211 is an L4 Series industrial limit switch designed for dependable position detection and machine control applications. Featuring a snap action mechanism, 2NO+2NC contact configuration, and plastic roller lever actuator, this limit switch provides accurate and reliable switching performance for industrial automation systems.
Built with a robust metal body construction, the EMAS L4K16MIP211 delivers long mechanical life, reliable operation, and suitability for demanding industrial environments including machinery, conveyor systems, and automation equipment.
| Specification | Value |
|---|---|
| Product Type | Industrial Limit Switch |
| Contact Type | 2 Normally Open + 2 Normally Closed |
| Contact Action | Snap Action |
| Actuator Type | Plastic Roller Lever |
| Actuator Diameter | 22 mm |
| Rated Current | 3A (240V AC), AC15 |
| Insulation Voltage (Ui) | 300V |
| Impulse Withstand Voltage (Uimp) | 2.5 kV |
| Protection Degree | IP65 |
| Contact Material | AgNi |
| Cable Section | 1 - 2.5 mm² |
| Short Circuit Breaking Capacity | 1 kA |
| Standards | TS EN 60947-5-1, UL 508, VDE 0660 |
The EMAS L4K16MIP211 limit switch is commonly used in industrial automation, machine tools, conveyor systems, manufacturing equipment, safety circuits, and position monitoring applications requiring precise mechanical switching.
The EMAS L4K16MIP211 uses a plastic roller lever actuator with a 22 mm roller diameter.
This model features a 2NO + 2NC snap action contact configuration.
The EMAS L4K16MIP211 has an IP65 protection rating, providing protection against dust and low-pressure water exposure.
It is designed for industrial automation, machinery control, conveyor systems, and position sensing applications.
