Why Choose the EMAS L4K16PUM211 EMAS L4 SERIES LMT SW. SNP ACT. 2NC+2NO- MTL PLUNGER? The EMAS L4K16PUM211 EMAS L4 SERIES LMT SW. SNP ACT. 2NC+2NO- MTL PLUNGER (L4K16PUM211) is a purpose-built solution for demanding industrial environments. It delivers long-term reliability, is easy to install, and supports a wide range of automation or safety applications. Key Takeaways Heavy-duty industrial construction Simple, secure installation Frequently Asked Questions About the EMAS L4K16PUM211 EMAS L4 SERIES LMT SW. SNP ACT. 2NC+2NO- MTL PLUNGER What is the rated voltage? What is the current rating? What is the power rating? What are the typical applications? Does it meet industry certifications? Speed & Safety Benefits Quick installation: Designed for fast, hassle-free integration into control panels Reliable operation: Engineered for continuous use in demanding applications Certified safe: Meets or exceeds CE and RoHS requirements Key Features of the EMAS L4K16PUM211 EMAS L4 SERIES LMT SW. SNP ACT. 2NC+2NO- MTL PLUNGER Industrial-grade reliability Manufactured by a leading brand Meets CE and RoHS standards EMAS L4K16PUM211 EMAS L4 SERIES LMT SW. SNP ACT. 2NC+2NO- MTL PLUNGER Overview Refer to datasheet for detailed product overview. Choose the EMAS L4K16PUM211 EMAS L4 SERIES LMT SW. SNP ACT. 2NC+2NO- MTL PLUNGER (L4K16PUM211) for reliability, compliance, and robust performance in every industrial application. Frequently Asked Questions What is the rated voltage? See product datasheet. What is the current rating? See product datasheet. What is the power rating? See product datasheet. What are the typical applications? Ideal for industrial automation, panels, and control systems. Does it meet industry certifications? Yes, this product is CE and RoHS compliant. Refer to datasheet for more information.
£79.91

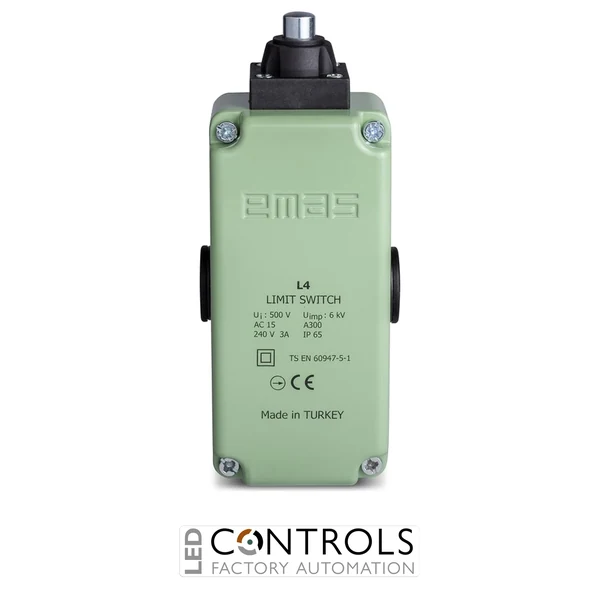

The EMAS L4K16PUM211 is an L4 Series industrial limit switch designed for accurate position detection and reliable machine control applications. Featuring a snap action switching mechanism, 2NO+2NC contact configuration, and a metal plunger actuator, this limit switch delivers dependable performance in industrial automation environments.
Manufactured with a durable metal body construction, the EMAS L4K16PUM211 provides excellent mechanical endurance and reliable operation for machinery, automation systems, and industrial control applications requiring precise mechanical switching.
| Specification | Value |
|---|---|
| Product Type | Industrial Limit Switch |
| Contact Type | 2 Normally Open + 2 Normally Closed |
| Contact Action | Snap Action |
| Actuator Type | Metal Plunger |
| Actuator Diameter | 10 mm |
| Rated Current | 3A (240V AC), AC15 |
| Insulation Voltage (Ui) | 300V |
| Impulse Withstand Voltage (Uimp) | 2.5 kV |
| Protection Degree | IP65 |
| Contact Material | AgNi |
| Cable Section | 1 - 2.5 mm² |
| Short Circuit Breaking Capacity | 1 kA |
| Operating Frequency | Mechanical 3000 operations/hour, Electrical 1800 operations/hour |
| Standards | TS EN 60947-5-1, UL 508, VDE 0660 |
The EMAS L4K16PUM211 limit switch is commonly used in industrial automation systems, machine tools, conveyor equipment, production machinery, safety circuits, and position monitoring applications where precise mechanical detection is required.
The EMAS L4K16PUM211 uses a metal plunger actuator with a 10 mm actuator diameter.
This model features a 2NO + 2NC snap action contact configuration.
The EMAS L4K16PUM211 has an IP65 protection rating, providing protection against dust and water ingress.
It is designed for industrial automation, machinery control, conveyor systems, and position sensing applications.
