Why Choose the EMAS L51K13HUM111 EMAS L51 SERIES LIMIT SW. SNAP ACTION PULL WIRE WITH RING? The EMAS L51K13HUM111 EMAS L51 SERIES LIMIT SW. SNAP ACTION PULL WIRE WITH RING (L51K13HUM111) is a purpose-built solution for demanding industrial environments. It delivers long-term reliability, is easy to install, and supports a wide range of automation or safety applications. Key Takeaways Heavy-duty industrial construction Simple, secure installation Frequently Asked Questions About the EMAS L51K13HUM111 EMAS L51 SERIES LIMIT SW. SNAP ACTION PULL WIRE WITH RING What is the rated voltage? What is the current rating? What is the power rating? What are the typical applications? Does it meet industry certifications? Speed & Safety Benefits Quick installation: Designed for fast, hassle-free integration into control panels Reliable operation: Engineered for continuous use in demanding applications Certified safe: Meets or exceeds CE and RoHS requirements Key Features of the EMAS L51K13HUM111 EMAS L51 SERIES LIMIT SW. SNAP ACTION PULL WIRE WITH RING Industrial-grade reliability Manufactured by a leading brand Meets CE and RoHS standards EMAS L51K13HUM111 EMAS L51 SERIES LIMIT SW. SNAP ACTION PULL WIRE WITH RING Overview Refer to datasheet for detailed product overview. Choose the EMAS L51K13HUM111 EMAS L51 SERIES LIMIT SW. SNAP ACTION PULL WIRE WITH RING (L51K13HUM111) for reliability, compliance, and robust performance in every industrial application. Frequently Asked Questions What is the rated voltage? See product datasheet. What is the current rating? See product datasheet. What is the power rating? See product datasheet. What are the typical applications? Ideal for industrial automation, panels, and control systems. Does it meet industry certifications? Yes, this product is CE and RoHS compliant. Refer to datasheet for more information.
£31.49

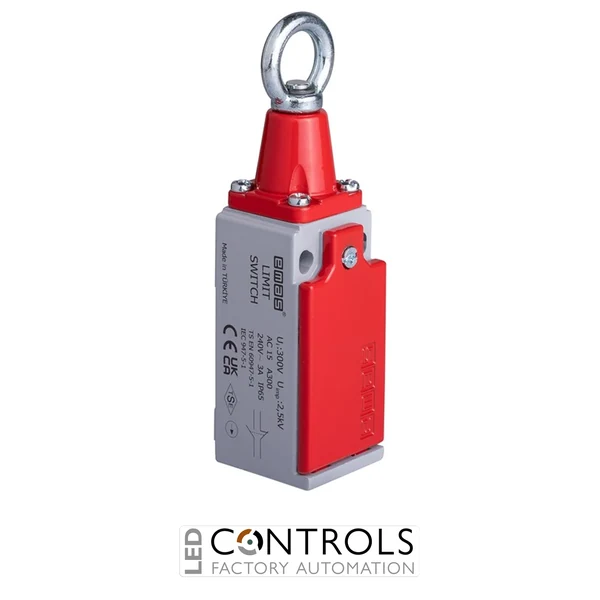

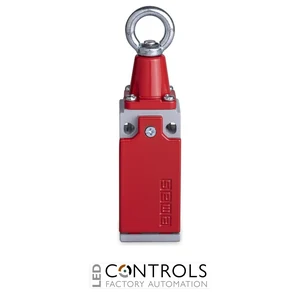

The EMAS L51K13HUM111 is an L51 Series industrial rope pull safety limit switch designed for emergency stop and safety monitoring applications in industrial automation systems. Featuring a durable metal body construction, snap action switching mechanism, and 1NO+1NC contact configuration, this safety switch provides reliable machine protection and emergency shutdown capability.
The L51K13HUM111 uses a metal rope pull safety actuator and includes a changeable contact block design, making it suitable for conveyor systems, production lines, and machinery where accessible emergency stop protection is required.
| Specification | Value |
|---|---|
| Product Type | Rope Pull Safety Limit Switch |
| Series | L51 Metal Body |
| Housing Material | Metal Body and Cover |
| Actuator Material | Metal |
| Actuator | Rope Pull Safety Switch |
| Contact Configuration | 1NO + 1NC |
| Contact Action | Snap Action |
| Rated Current | 3A (240V AC), AC15 |
| Insulation Voltage (Ui) | 300V |
| Impulse Withstand Voltage (Uimp) | 2.5 kV |
| Protection Degree | IP65 |
| Cable Section | 1 - 2.5 mm² |
| Operating Frequency | Mechanical 3000 operations/hour, Electrical 1800 operations/hour |
| Standards | TS EN 60947-5-1, UL 508, VDE 0660 |
The EMAS L51K13HUM111 rope pull safety switch is commonly used in conveyor belt emergency stop systems, manufacturing lines, industrial machinery, production equipment, and safety circuits where immediate machine shutdown is required.
The EMAS L51K13HUM111 uses a metal rope pull safety switch actuator designed for emergency stop applications.
The EMAS L51K13HUM111 features a 1NO+1NC snap action contact configuration.
The EMAS L51K13HUM111 provides IP65 protection against dust and water ingress.
It is commonly used on conveyor systems, industrial machines, production lines, and safety circuits requiring emergency stop functionality.
