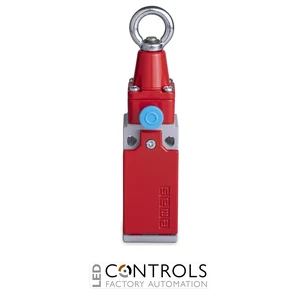

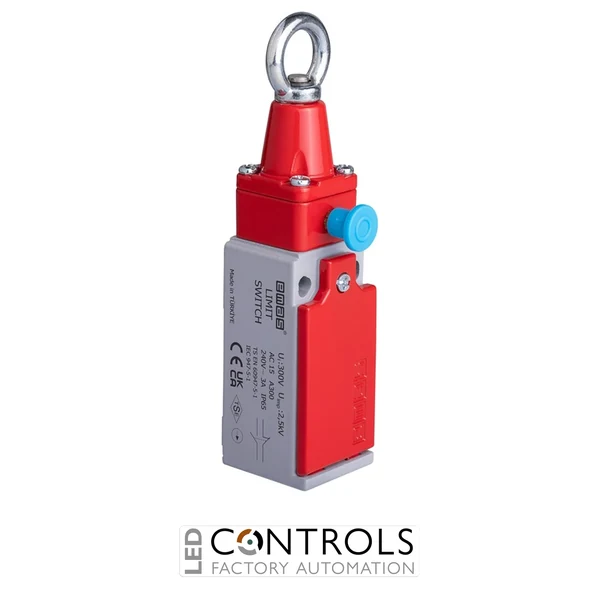

EMAS L51K13HUM112 L51 Series Metal Rope Pull Safety Switch With Reset Snap Action 1NO+1NC
Product Overview
The EMAS L51K13HUM112 is an L51 Series metal body rope pull safety limit switch
designed for emergency stop and machine safety applications. Featuring a durable
metal housing, reset function, snap action mechanism, and 1NO+1NC contact
configuration, this safety switch provides reliable protection for industrial
machinery and conveyor systems.
The L51K13HUM112 uses a metal rope pull safety actuator with a reset feature,
allowing operators to manually restore the switch after activation. Its robust
construction, IP65 protection rating, and long mechanical life make it suitable
for demanding industrial automation environments.
Key Features
- Manufacturer: EMAS
- Model: L51K13HUM112
- Series: L51 Metal Body Limit Switch
- Actuator Type: Metal Rope Pull Safety Switch
- Feature: With Reset
- Contact Configuration: 1NO + 1NC
- Switching Type: Snap Action
- Rated Current: 3A at 240V AC (AC15)
- Mechanical Life: Minimum 10,000,000 operations
- Electrical Life: Minimum 1,000,000 operations
- Protection Rating: IP65
- Contact Material: AgNi
- Operating Temperature: -25°C to +80°C
Applications
The EMAS L51K13HUM112 rope pull safety switch is commonly used for emergency stop
protection on conveyor belts, manufacturing equipment, industrial machinery,
production lines, and automated systems where immediate shutdown capability is
required.
Why Choose the EMAS L51K13HUM112?
- Integrated reset function for controlled machine restart
- Durable metal body construction for industrial environments
- Reliable snap action switching technology
- Long mechanical and electrical service life
- IP65 protection against dust and water ingress
- Suitable for industrial emergency stop applications
