Why Choose the EMAS L51K13LEM412 EMAS L51 SERIES LIMIT SW SLOW ACTION 1NO+1NC METAL HIN? The EMAS L51K13LEM412 EMAS L51 SERIES LIMIT SW SLOW ACTION 1NO+1NC METAL HIN (L51K13LEM412) is a purpose-built solution for demanding industrial environments. It delivers long-term reliability, is easy to install, and supports a wide range of automation or safety applications. Key Takeaways Heavy-duty industrial construction Simple, secure installation Frequently Asked Questions About the EMAS L51K13LEM412 EMAS L51 SERIES LIMIT SW SLOW ACTION 1NO+1NC METAL HIN What is the rated voltage? What is the current rating? What is the power rating? What are the typical applications? Does it meet industry certifications? Speed & Safety Benefits Quick installation: Designed for fast, hassle-free integration into control panels Reliable operation: Engineered for continuous use in demanding applications Certified safe: Meets or exceeds CE and RoHS requirements Key Features of the EMAS L51K13LEM412 EMAS L51 SERIES LIMIT SW SLOW ACTION 1NO+1NC METAL HIN Industrial-grade reliability Manufactured by a leading brand Meets CE and RoHS standards EMAS L51K13LEM412 EMAS L51 SERIES LIMIT SW SLOW ACTION 1NO+1NC METAL HIN Overview Refer to datasheet for detailed product overview. Choose the EMAS L51K13LEM412 EMAS L51 SERIES LIMIT SW SLOW ACTION 1NO+1NC METAL HIN (L51K13LEM412) for reliability, compliance, and robust performance in every industrial application. Frequently Asked Questions What is the rated voltage? See product datasheet. What is the current rating? See product datasheet. What is the power rating? See product datasheet. What are the typical applications? Ideal for industrial automation, panels, and control systems. Does it meet industry certifications? Yes, this product is CE and RoHS compliant. Refer to datasheet for more information.
£32.95

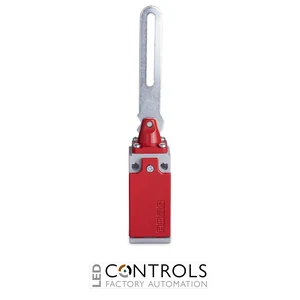

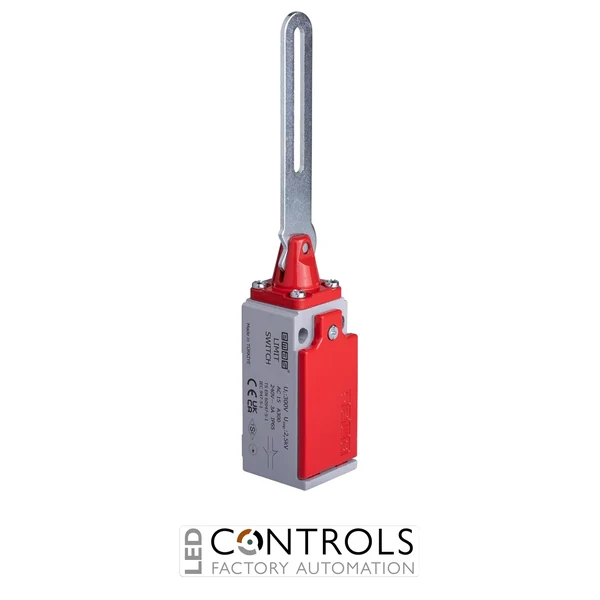

The EMAS L51K13LEM412 is an L51 Series metal body safety door hinge limit switch designed for machine guarding, access monitoring, and industrial safety applications. Featuring a durable metal construction, safety door hinge actuator, snap action operation, and 1NO+1NC contact configuration, this limit switch provides reliable monitoring of protective doors and machine access points.
Built for demanding industrial environments, the EMAS L51K13LEM412 offers high mechanical durability, IP65 protection, and dependable switching performance for automation systems, production machinery, and safety circuits.
| Specification | Value |
|---|---|
| Product Type | Safety Door Hinge Limit Switch |
| Series | L51 Metal Body |
| Housing Material | Metal Body and Cover |
| Actuator | Metal Safety Door Hinge Switch |
| Contact Configuration | 1NO + 1NC |
| Contact Action | Snap Action |
| Rated Current | 3A (240V AC), AC15 |
| Insulation Voltage (Ui) | 300V |
| Impulse Withstand Voltage (Uimp) | 2.5 kV |
| Protection Degree | IP65 |
| Isolation Resistance | 10 MΩ (500V DC) |
| Cable Section | 1 - 2.5 mm² |
| Operating Frequency | Mechanical 3000 operations/hour, Electrical 1800 operations/hour |
| Standards | TS EN 60947-5-1, UL 508, VDE 0660 |
The EMAS L51K13LEM412 safety hinge switch is commonly used in industrial machinery, automated production lines, machine guarding systems, protective doors, access panels, and safety monitoring circuits where reliable guard position detection is required.
The EMAS L51K13LEM412 uses a metal safety door hinge actuator designed for monitoring machine guards and protective access doors.
The EMAS L51K13LEM412 features a 1NO+1NC snap action contact configuration.
The EMAS L51K13LEM412 has an IP65 protection rating, providing resistance against dust and water ingress.
It is commonly used in industrial automation, machine safety systems, production equipment, and protective door monitoring applications.
