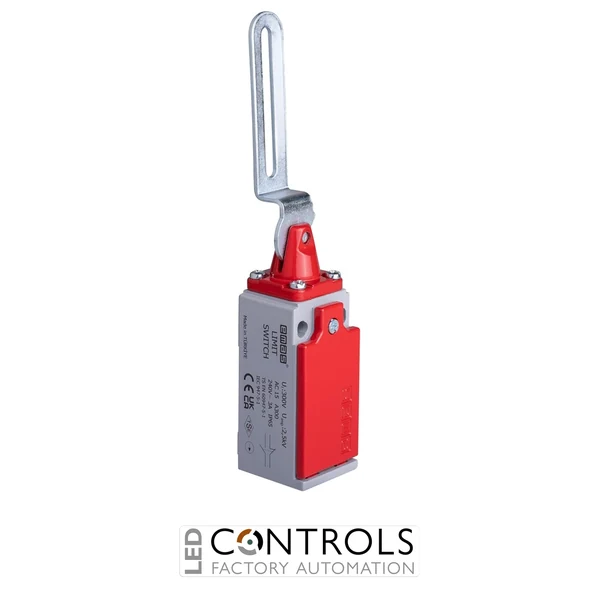

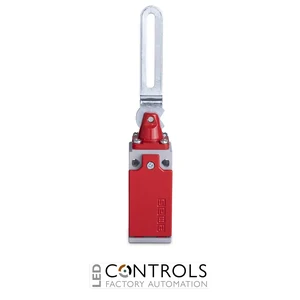

EMAS L51K13LEM511 L51 Series Metal Safety Door Hinge Switch Slow Action 1NO+1NC Limit Switch
Product Overview
The EMAS L51K13LEM511 is an L51 Series metal body safety door hinge limit switch
designed for machine guarding, access monitoring, and industrial safety applications.
Featuring a durable metal construction, slow action switching mechanism, and 1NO+1NC
contact configuration, this safety switch provides reliable monitoring of protective
doors and machine access points.
Designed with a metal safety door hinge actuator, the EMAS L51K13LEM511 provides
dependable operation in industrial automation systems, production machinery, and
safety circuits. Its robust housing, IP65 protection rating, and long mechanical life
make it suitable for demanding industrial environments.
Key Features
- Manufacturer: EMAS
- Model: L51K13LEM511
- Series: L51 Metal Body Limit Switch
- Actuator Type: Metal Safety Door Hinge Switch
- Contact Configuration: 1NO + 1NC
- Switching Type: Slow Action
- Actuator Material: Metal
- Rated Current: 3A at 240V AC (AC15)
- Mechanical Life: Minimum 10,000,000 operations
- Electrical Life: Minimum 1,000,000 operations
- Protection Rating: IP65
- Operating Temperature: -25°C to +80°C
- Contact Material: AgNi
Applications
The EMAS L51K13LEM511 safety door hinge switch is commonly used in industrial
machinery, automated production lines, machine guarding systems, protective doors,
access panels, and safety monitoring circuits where reliable guard position detection
is required.
Why Choose the EMAS L51K13LEM511?
- Reliable safety monitoring for machine doors and protective guards
- Heavy-duty metal body construction for industrial environments
- Slow action switching for controlled contact operation
- Long mechanical and electrical service life
- IP65 protection against dust and water ingress
- Suitable for industrial safety control applications
