Why Choose the EMAS L51K13MEM122 EMAS L51 SERIES LIMIT SW. SNAP ACTION 1NC+1NO SHORT METAL ROLLER? The EMAS L51K13MEM122 EMAS L51 SERIES LIMIT SW. SNAP ACTION 1NC+1NO SHORT METAL ROLLER (L51K13MEM122) is a purpose-built solution for demanding industrial environments. It delivers long-term reliability, is easy to install, and supports a wide range of automation or safety applications. Key Takeaways Heavy-duty industrial construction Simple, secure installation Frequently Asked Questions About the EMAS L51K13MEM122 EMAS L51 SERIES LIMIT SW. SNAP ACTION 1NC+1NO SHORT METAL ROLLER What is the rated voltage? What is the current rating? What is the power rating? What are the typical applications? Does it meet industry certifications? Speed & Safety Benefits Quick installation: Designed for fast, hassle-free integration into control panels Reliable operation: Engineered for continuous use in demanding applications Certified safe: Meets or exceeds CE and RoHS requirements Key Features of the EMAS L51K13MEM122 EMAS L51 SERIES LIMIT SW. SNAP ACTION 1NC+1NO SHORT METAL ROLLER Industrial-grade reliability Manufactured by a leading brand Meets CE and RoHS standards EMAS L51K13MEM122 EMAS L51 SERIES LIMIT SW. SNAP ACTION 1NC+1NO SHORT METAL ROLLER Overview Refer to datasheet for detailed product overview. Choose the EMAS L51K13MEM122 EMAS L51 SERIES LIMIT SW. SNAP ACTION 1NC+1NO SHORT METAL ROLLER (L51K13MEM122) for reliability, compliance, and robust performance in every industrial application. Frequently Asked Questions What is the rated voltage? See product datasheet. What is the current rating? See product datasheet. What is the power rating? See product datasheet. What are the typical applications? Ideal for industrial automation, panels, and control systems. Does it meet industry certifications? Yes, this product is CE and RoHS compliant. Refer to datasheet for more information.
£34.65

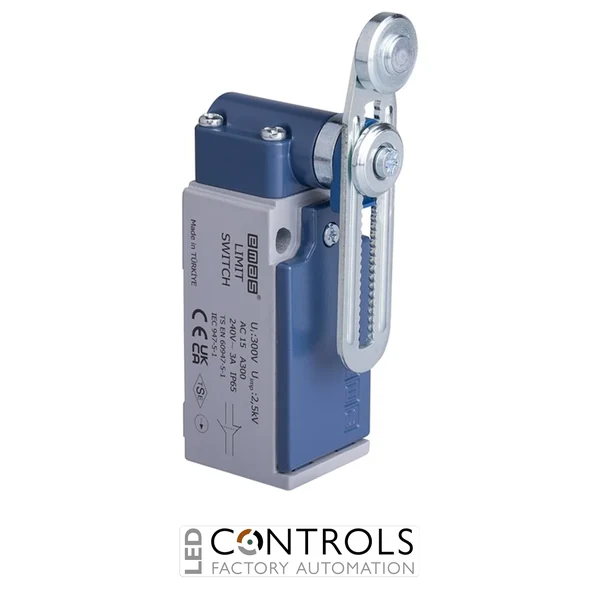

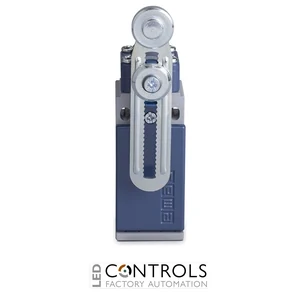

The EMAS L51K13MEM122 is an L51 Series industrial limit switch featuring a durable metal body construction, short adjustable metal roller arm actuator, snap action switching mechanism, and 1NO+1NC contact configuration. Designed for precise position detection and reliable machine control, this limit switch provides dependable performance in industrial automation applications.
The EMAS L51K13MEM122 uses a two-way angular action adjustable roller actuator with an 18mm metal roller, providing flexible mechanical operation for machinery, conveyors, and production equipment. The switch features IP65 protection, long mechanical life, and a robust metal construction suitable for demanding industrial environments.
| Specification | Value |
|---|---|
| Product Type | Industrial Limit Switch |
| Series | L51 Metal Body |
| Housing Material | Metal |
| Actuator Type | Angular Action Roller Two Way Adjustable |
| Roller Material | Metal |
| Roller Diameter | 18 mm |
| Contact Configuration | 1NO + 1NC |
| Contact Action | Snap Action |
| Rated Voltage | 240V AC |
| Rated Current | 3A AC |
| Protection Degree | IP65 |
| Insulation Resistance | 10 MΩ minimum (500V DC) |
| Mechanical Life | 10,000,000 operations minimum |
| Electrical Life | 1,000,000 operations minimum |
| Connection | PG13.5 / M20 Cable Entry |
The EMAS L51K13MEM122 limit switch is commonly used in industrial automation, conveyor systems, machine tools, packaging equipment, manufacturing lines, material handling systems, and position monitoring applications requiring accurate mechanical switching.
The EMAS L51K13MEM122 uses a short adjustable two-way angular roller arm actuator with an 18mm metal roller.
The EMAS L51K13MEM122 features a 1NO+1NC snap action contact configuration.
The EMAS L51K13MEM122 has an IP65 protection rating, providing resistance against dust and water ingress.
It is commonly used in industrial automation, machinery, conveyors, production equipment, and position control systems.
