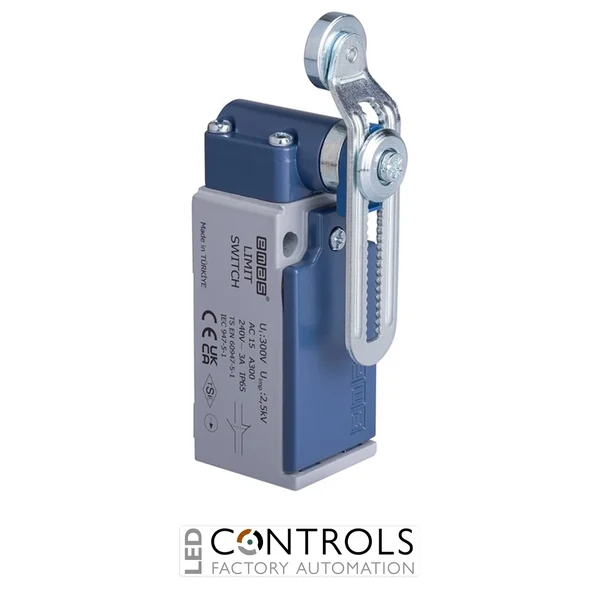

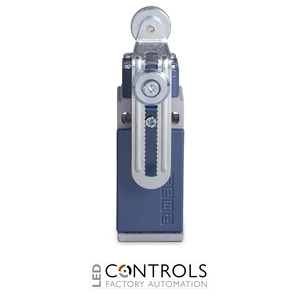

EMAS L51K13MEM124 L51 Series Metal Body 18mm Metal Adjustable Roller Arm Snap Action 1NO+1NC Limit Switch
Product Overview
The EMAS L51K13MEM124 is an L51 Series industrial limit switch featuring a durable
metal body construction, 18mm metal adjustable roller arm actuator, snap action
switching mechanism, and 1NO+1NC contact configuration. Designed for precise position
detection and reliable machine control, this limit switch provides dependable
performance in industrial automation applications.
The EMAS L51K13MEM124 features a two-way angular action adjustable roller arm with
a metal roller end unit, allowing flexible mechanical operation for machinery,
conveyors, and production equipment. The robust metal housing, IP65 protection rating,
and long mechanical service life make it suitable for demanding industrial
environments.
Key Features
- Manufacturer: EMAS
- Model: L51K13MEM124
- Series: L51 Metal Body Limit Switch
- Actuator Type: Two Way Angular Action Adjustable Roller Arm
- Actuator Material: Metal
- Roller Diameter: 18 mm
- Contact Configuration: 1NO + 1NC
- Switching Type: Snap Action
- Housing Material: Metal Body and Cover
- Rated Current: 3A at 240V AC
- Mechanical Life: Minimum 10,000,000 operations
- Electrical Life: Minimum 1,000,000 operations
- Protection Rating: IP65
- Operating Temperature: -5°C to +40°C
Applications
The EMAS L51K13MEM124 limit switch is commonly used in industrial automation,
conveyor systems, machine tools, packaging equipment, manufacturing lines,
material handling systems, and position monitoring applications requiring accurate
mechanical switching.
Why Choose the EMAS L51K13MEM124?
- Heavy-duty metal construction for industrial environments
- 18mm metal adjustable roller arm for flexible positioning
- Two-way angular action for reliable mechanical detection
- Reliable snap action switching performance
- Long mechanical and electrical service life
- IP65 protection against dust and water ingress
