Why Choose the EMAS L51K13MEP122 EMAS L51 SERIES LIMIT SW. SNAP ACTION 1NC+1NO-PLASTIC ROLLER? The EMAS L51K13MEP122 EMAS L51 SERIES LIMIT SW. SNAP ACTION 1NC+1NO-PLASTIC ROLLER (L51K13MEP122) is a purpose-built solution for demanding industrial environments. It delivers long-term reliability, is easy to install, and supports a wide range of automation or safety applications. Key Takeaways Heavy-duty industrial construction Simple, secure installation Frequently Asked Questions About the EMAS L51K13MEP122 EMAS L51 SERIES LIMIT SW. SNAP ACTION 1NC+1NO-PLASTIC ROLLER What is the rated voltage? What is the current rating? What is the power rating? What are the typical applications? Does it meet industry certifications? Speed & Safety Benefits Quick installation: Designed for fast, hassle-free integration into control panels Reliable operation: Engineered for continuous use in demanding applications Certified safe: Meets or exceeds CE and RoHS requirements Key Features of the EMAS L51K13MEP122 EMAS L51 SERIES LIMIT SW. SNAP ACTION 1NC+1NO-PLASTIC ROLLER Industrial-grade reliability Manufactured by a leading brand Meets CE and RoHS standards EMAS L51K13MEP122 EMAS L51 SERIES LIMIT SW. SNAP ACTION 1NC+1NO-PLASTIC ROLLER Overview Refer to datasheet for detailed product overview. Choose the EMAS L51K13MEP122 EMAS L51 SERIES LIMIT SW. SNAP ACTION 1NC+1NO-PLASTIC ROLLER (L51K13MEP122) for reliability, compliance, and robust performance in every industrial application. Frequently Asked Questions What is the rated voltage? See product datasheet. What is the current rating? See product datasheet. What is the power rating? See product datasheet. What are the typical applications? Ideal for industrial automation, panels, and control systems. Does it meet industry certifications? Yes, this product is CE and RoHS compliant. Refer to datasheet for more information.
£34.10

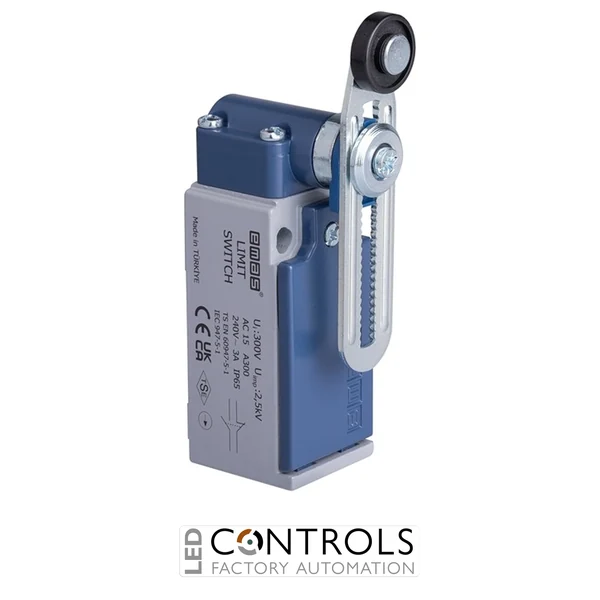

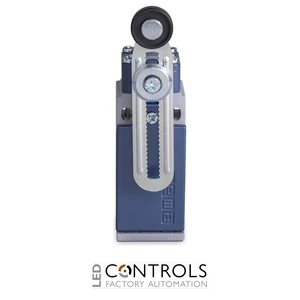

The EMAS L51K13MEP122 is a high-quality industrial limit switch from the EMAS L51 Metal Body series, designed for reliable position detection and control applications. Featuring an 18 mm plastic adjustable roller arm actuator, snap action mechanism, and 1NO+1NC contact configuration, this limit switch provides accurate switching performance for automation and machinery systems.
Built with a durable metal body and IP65 protection rating, the EMAS L51K13MEP122 is suitable for demanding industrial environments. It offers a long mechanical life of up to 10 million operations and reliable electrical performance for machine control, safety monitoring, and automation applications.
| Product Code | L51K13MEP122 |
| Actuator Diameter | 18 mm |
| Actuator Material | Plastic |
| Contact Type | 1NO + 1NC |
| Rated Current (Ie) | 3 A at 240V AC |
| Usage Category | AC15 |
| Mechanical Life | 10,000,000 operations |
| Electrical Life | 1,000,000 operations |
| Operating Frequency | Mechanical: 3000 operations/hour; Electrical: 1800 operations/hour |
| Insulation Voltage (Ui) | 300 V |
| Impulse Withstand Voltage (Uimp) | 2.5 kV |
| Operating Temperature | -25°C to +80°C |
| Protection Degree | IP65 |
| Contact Material | AgNi |
| Cable Section | 1-2.5 mm² |
| Screw Torque | 1.5 Nm |
| Short Circuit Breaking Capacity | 1 kA |
The EMAS L51K13MEP122 combines robust mechanical construction with dependable snap action switching technology. Its adjustable roller arm actuator allows flexible installation, while the durable metal housing and IP65 protection make it suitable for industrial environments requiring reliable limit detection.
The EMAS L51K13MEP122 uses an 18 mm plastic adjustable roller arm actuator designed for flexible mechanical positioning.
This limit switch features a snap action 1NO + 1NC contact configuration.
The EMAS L51K13MEP122 has an IP65 protection rating, providing resistance against dust and water ingress suitable for industrial applications.
