Why Choose the EMAS L51K13MEP124 EMAS L51 SERIES LIMIT SW. SNAP ACTION 1NC+1NO- SHORT PLASTIC ROLLER? The EMAS L51K13MEP124 EMAS L51 SERIES LIMIT SW. SNAP ACTION 1NC+1NO- SHORT PLASTIC ROLLER (L51K13MEP124) is a purpose-built solution for demanding industrial environments. It delivers long-term reliability, is easy to install, and supports a wide range of automation or safety applications. Key Takeaways Heavy-duty industrial construction Simple, secure installation Frequently Asked Questions About the EMAS L51K13MEP124 EMAS L51 SERIES LIMIT SW. SNAP ACTION 1NC+1NO- SHORT PLASTIC ROLLER What is the rated voltage? What is the current rating? What is the power rating? What are the typical applications? Does it meet industry certifications? Speed & Safety Benefits Quick installation: Designed for fast, hassle-free integration into control panels Reliable operation: Engineered for continuous use in demanding applications Certified safe: Meets or exceeds CE and RoHS requirements Key Features of the EMAS L51K13MEP124 EMAS L51 SERIES LIMIT SW. SNAP ACTION 1NC+1NO- SHORT PLASTIC ROLLER Industrial-grade reliability Manufactured by a leading brand Meets CE and RoHS standards EMAS L51K13MEP124 EMAS L51 SERIES LIMIT SW. SNAP ACTION 1NC+1NO- SHORT PLASTIC ROLLER Overview Refer to datasheet for detailed product overview. Choose the EMAS L51K13MEP124 EMAS L51 SERIES LIMIT SW. SNAP ACTION 1NC+1NO- SHORT PLASTIC ROLLER (L51K13MEP124) for reliability, compliance, and robust performance in every industrial application. Frequently Asked Questions What is the rated voltage? See product datasheet. What is the current rating? See product datasheet. What is the power rating? See product datasheet. What are the typical applications? Ideal for industrial automation, panels, and control systems. Does it meet industry certifications? Yes, this product is CE and RoHS compliant. Refer to datasheet for more information.
£34.39

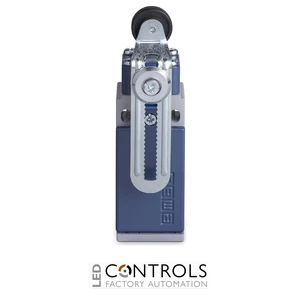

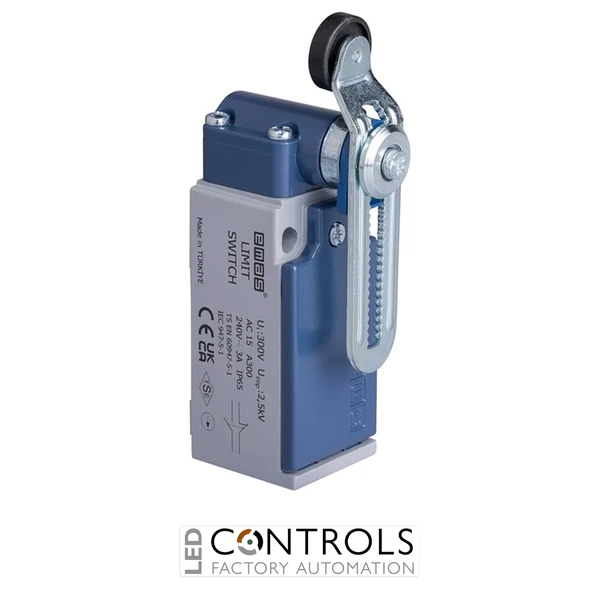

The EMAS L51K13MEP124 is a high-performance industrial limit switch from the EMAS L51 Metal Body series, engineered for accurate position sensing and dependable switching in automation and machine control applications. Featuring an 18 mm plastic adjustable roller arm actuator, snap action mechanism, and 1NO+1NC contact configuration, this limit switch provides reliable operation in demanding industrial environments.
Designed with a robust metal body and cover construction, the EMAS L51K13MEP124 delivers excellent mechanical durability with an IP65 protection rating. Its adjustable roller arm design allows flexible installation and precise actuation for industrial machinery, conveyor systems, and automation equipment.
| Product Code | L51K13MEP124 |
| Series | L51 Metal Body |
| Product Type | Limit Switch |
| Actuator Diameter | 18 mm |
| Actuator Material | Plastic |
| Actuator Type | Adjustable Roller Arm |
| Contact Type | 1NO + 1NC |
| Contact Action | Snap Action |
| Rated Current (Ie) | 3 A at 240V AC |
| Usage Category | AC15 |
| Mechanical Life | 10,000,000 operations |
| Electrical Life | 1,000,000 operations |
| Mechanical Operating Frequency | 3000 operations/hour |
| Electrical Operating Frequency | 1800 operations/hour |
| Insulation Voltage (Ui) | 300 V |
| Impulse Withstand Voltage (Uimp) | 2.5 kV |
| Dielectric Strength | 1890 V AC |
| Operating Temperature | -25°C to +80°C |
| Pollution Degree | 3 |
| Protection Degree | IP65 |
| Contact Material | AgNi |
| Cable Section | 1-2.5 mm² |
| Screw Torque | 1.5 Nm |
| Short Circuit Breaking Capacity | 1 kA |
The EMAS L51K13MEP124 combines rugged construction with accurate snap action switching technology. Its metal housing, adjustable plastic roller arm, and high mechanical life make it a dependable solution for industrial applications requiring precise limit detection and long-term reliability.
The EMAS L51K13MEP124 uses an 18 mm plastic adjustable roller arm actuator.
The EMAS L51K13MEP124 features a snap action 1NO + 1NC contact configuration.
The EMAS L51K13MEP124 has an IP65 protection rating, providing protection against dust and water ingress for industrial applications.
The limit switch provides a minimum mechanical life of 10 million operations.
