Why Choose the EMAS L51K13MIP411 EMAS L51 SERIES LIMIT SW. SNAP ACTION 1NC+1NO-PLASTIC ROLLER? The EMAS L51K13MIP411 EMAS L51 SERIES LIMIT SW. SNAP ACTION 1NC+1NO-PLASTIC ROLLER (L51K13MIP411) is a purpose-built solution for demanding industrial environments. It delivers long-term reliability, is easy to install, and supports a wide range of automation or safety applications. Key Takeaways Heavy-duty industrial construction Simple, secure installation Frequently Asked Questions About the EMAS L51K13MIP411 EMAS L51 SERIES LIMIT SW. SNAP ACTION 1NC+1NO-PLASTIC ROLLER What is the rated voltage? What is the current rating? What is the power rating? What are the typical applications? Does it meet industry certifications? Speed & Safety Benefits Quick installation: Designed for fast, hassle-free integration into control panels Reliable operation: Engineered for continuous use in demanding applications Certified safe: Meets or exceeds CE and RoHS requirements Key Features of the EMAS L51K13MIP411 EMAS L51 SERIES LIMIT SW. SNAP ACTION 1NC+1NO-PLASTIC ROLLER Industrial-grade reliability Manufactured by a leading brand Meets CE and RoHS standards EMAS L51K13MIP411 EMAS L51 SERIES LIMIT SW. SNAP ACTION 1NC+1NO-PLASTIC ROLLER Overview Refer to datasheet for detailed product overview. Choose the EMAS L51K13MIP411 EMAS L51 SERIES LIMIT SW. SNAP ACTION 1NC+1NO-PLASTIC ROLLER (L51K13MIP411) for reliability, compliance, and robust performance in every industrial application. Frequently Asked Questions What is the rated voltage? See product datasheet. What is the current rating? See product datasheet. What is the power rating? See product datasheet. What are the typical applications? Ideal for industrial automation, panels, and control systems. Does it meet industry certifications? Yes, this product is CE and RoHS compliant. Refer to datasheet for more information.
£29.20

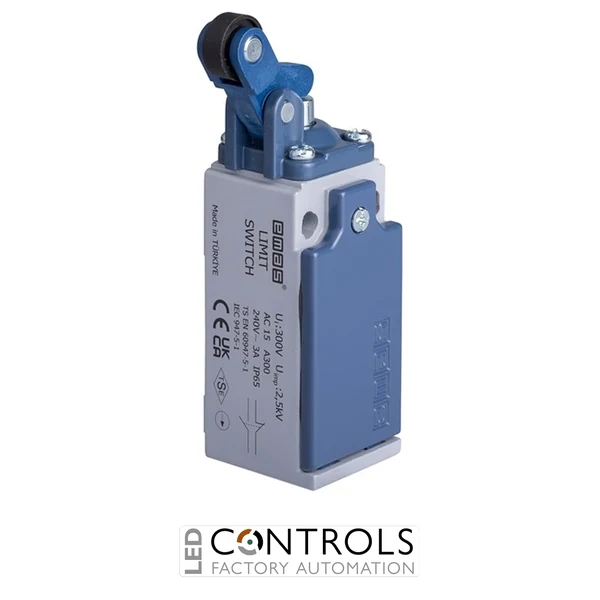

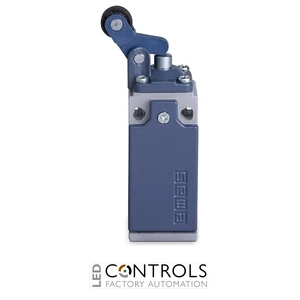

The EMAS L51K13MIP411 is a high-quality industrial limit switch from the EMAS L51 Metal Body series, engineered for accurate position sensing and dependable switching in industrial automation and machinery applications. Featuring a 14 mm plastic roller lever actuator, snap action mechanism, and 1NO+1NC contact configuration, this limit switch provides reliable performance for demanding industrial environments.
Designed with a rugged metal body and cover construction, the EMAS L51K13MIP411 offers excellent mechanical durability, IP65 protection, and long operational life. Its plastic roller lever actuator provides smooth mechanical activation, making it suitable for conveyors, machine tools, production equipment, and industrial control systems.
| Product Code | L51K13MIP411 |
| Series | L51 Metal Body |
| Product Type | Limit Switch |
| Actuator Diameter | 14 mm |
| Actuator Material | Plastic |
| Actuator Type | Roller Lever |
| Contact Type | 1NO + 1NC |
| Contact Action | Snap Action |
| Rated Current (Ie) | 3 A at 240V AC |
| Usage Category | AC15 |
| Mechanical Life | 10,000,000 operations |
| Electrical Life | 1,000,000 operations |
| Mechanical Operating Frequency | 3000 operations/hour |
| Electrical Operating Frequency | 1800 operations/hour |
| Insulation Voltage (Ui) | 300 V |
| Impulse Withstand Voltage (Uimp) | 2.5 kV |
| Dielectric Strength | 1890 V AC |
| Isolation Resistance | 10 MΩ at 500 V DC |
| Operating Temperature | -25°C to +80°C |
| Pollution Degree | 3 |
| Protection Degree | IP65 |
| Contact Material | AgNi |
| Cable Section | 1-2.5 mm² |
| Screw Torque | 1.5 Nm |
| Short Circuit Breaking Capacity | 1 kA |
| Standards | TS EN 60947-5-1, UL 508, VDE 0660 |
The EMAS L51K13MIP411 combines durable metal construction with precise snap action switching technology for dependable position detection. Its 14 mm plastic roller lever actuator offers flexible mechanical operation, while its IP65 protection rating and long mechanical life make it suitable for continuous industrial applications.
The EMAS L51K13MIP411 uses a 14 mm plastic roller lever actuator.
The EMAS L51K13MIP411 features a snap action 1NO + 1NC contact configuration.
The EMAS L51K13MIP411 has an IP65 protection rating, suitable for industrial environments requiring protection against dust and water ingress.
The limit switch provides a minimum mechanical life of 10 million operations.
