Why Choose the EMAS L51K13ROP101 EMAS L51 SERIES LIMIT SW. SNAP ACTION 1NC+1NO PLASTIC RIGID ROD? The EMAS L51K13ROP101 EMAS L51 SERIES LIMIT SW. SNAP ACTION 1NC+1NO PLASTIC RIGID ROD (L51K13ROP101) is a purpose-built solution for demanding industrial environments. It delivers long-term reliability, is easy to install, and supports a wide range of automation or safety applications. Key Takeaways Heavy-duty industrial construction Simple, secure installation Frequently Asked Questions About the EMAS L51K13ROP101 EMAS L51 SERIES LIMIT SW. SNAP ACTION 1NC+1NO PLASTIC RIGID ROD What is the rated voltage? What is the current rating? What is the power rating? What are the typical applications? Does it meet industry certifications? Speed & Safety Benefits Quick installation: Designed for fast, hassle-free integration into control panels Reliable operation: Engineered for continuous use in demanding applications Certified safe: Meets or exceeds CE and RoHS requirements Key Features of the EMAS L51K13ROP101 EMAS L51 SERIES LIMIT SW. SNAP ACTION 1NC+1NO PLASTIC RIGID ROD Industrial-grade reliability Manufactured by a leading brand Meets CE and RoHS standards EMAS L51K13ROP101 EMAS L51 SERIES LIMIT SW. SNAP ACTION 1NC+1NO PLASTIC RIGID ROD Overview Refer to datasheet for detailed product overview. Choose the EMAS L51K13ROP101 EMAS L51 SERIES LIMIT SW. SNAP ACTION 1NC+1NO PLASTIC RIGID ROD (L51K13ROP101) for reliability, compliance, and robust performance in every industrial application. Frequently Asked Questions What is the rated voltage? See product datasheet. What is the current rating? See product datasheet. What is the power rating? See product datasheet. What are the typical applications? Ideal for industrial automation, panels, and control systems. Does it meet industry certifications? Yes, this product is CE and RoHS compliant. Refer to datasheet for more information.
£28.06

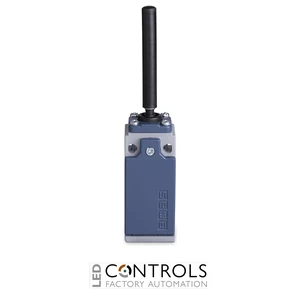

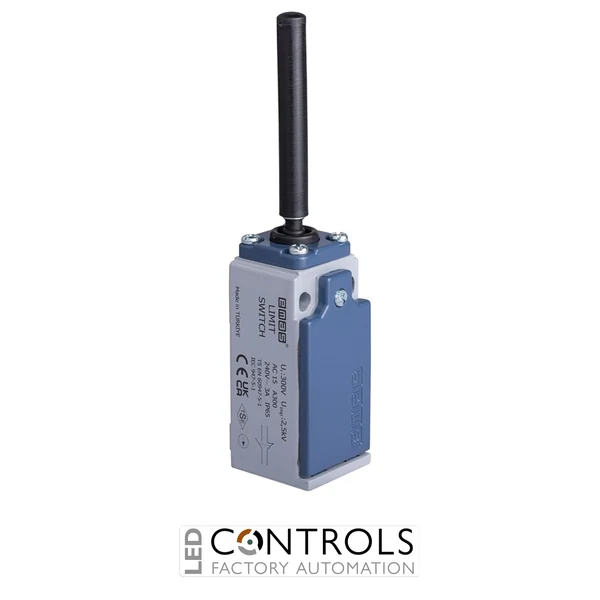

The EMAS L51K13ROP101 is a reliable industrial limit switch from the EMAS L51 Metal Body series, designed for accurate position detection and dependable switching in automation and machine control applications. Featuring a 9 mm plastic rod lever actuator, snap action mechanism, and 1NO+1NC contact configuration, this limit switch provides precise and repeatable operation for industrial environments.
Manufactured with a rugged metal body and cover construction, the EMAS L51K13ROP101 offers excellent durability, IP65 protection, and long operational life. Its plastic rod lever actuator provides sensitive mechanical detection, making it suitable for machinery, conveyors, production equipment, and industrial control systems requiring reliable limit sensing.
| Product Code | L51K13ROP101 |
| Series | L51 Metal Body |
| Product Type | Limit Switch |
| Actuator Diameter | 9 mm |
| Actuator Material | Plastic |
| Actuator Type | Rod Lever |
| Contact Type | 1NO + 1NC |
| Contact Action | Snap Action |
| Rated Current (Ie) | 3 A at 240V AC |
| Usage Category | AC15 |
| Mechanical Life | 10,000,000 operations |
| Electrical Life | 1,000,000 operations |
| Mechanical Operating Frequency | 3000 operations/hour |
| Electrical Operating Frequency | 1800 operations/hour |
| Insulation Voltage (Ui) | 300 V |
| Impulse Withstand Voltage (Uimp) | 2.5 kV |
| Operating Temperature | -25°C to +80°C |
| Protection Degree | IP65 |
| Contact Material | AgNi |
| Cable Section | 1-2.5 mm² |
| Screw Torque | 1.5 Nm |
| Short Circuit Breaking Capacity | 1 kA |
| Standards | TS EN 60947-5-1, UL 508, VDE 0660 |
The EMAS L51K13ROP101 combines a rugged metal enclosure with reliable snap action switching technology for accurate position sensing. Its 9 mm plastic rod lever actuator provides flexible mechanical operation, while the IP65 protection rating and extended mechanical life make it suitable for continuous industrial applications.
The EMAS L51K13ROP101 uses a 9 mm plastic rod lever actuator.
The EMAS L51K13ROP101 features a snap action 1NO + 1NC contact configuration.
The EMAS L51K13ROP101 has an IP65 protection rating, making it suitable for industrial environments requiring protection against dust and water ingress.
The limit switch provides a minimum mechanical life of 10 million operations.
