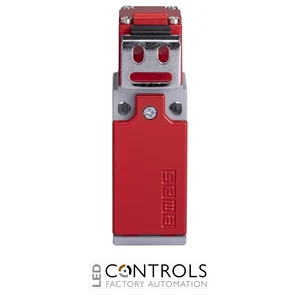

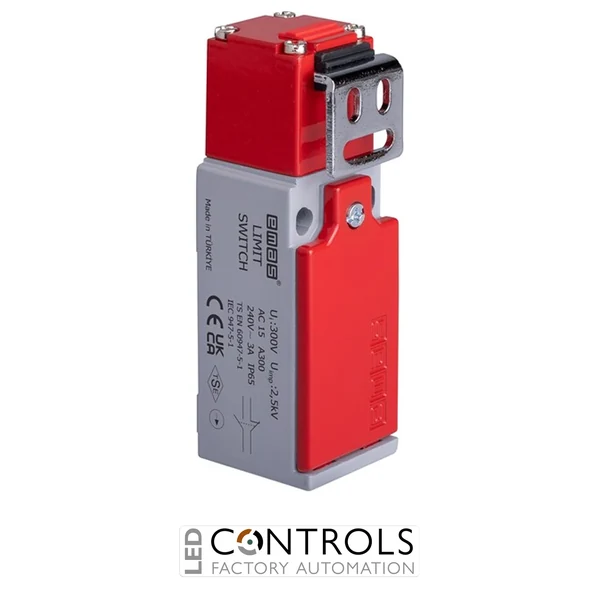

EMAS L51K23LUM321 Limit Switch – L51 Metal Body Right Angle Key Safety Switch Slow Action 1NO+1NC
The EMAS L51K23LUM321 is a durable industrial safety limit switch from the EMAS L51 Metal Body series, designed for machine safety monitoring, guard door interlocking, and position control applications. Featuring a rugged metal body and cover, metal right angle key safety actuator, slow action switching mechanism, and 1NO + 1NC contacts, this limit switch delivers reliable operation in demanding industrial environments.
Engineered for industrial automation systems, the EMAS L51K23LUM321 provides long service life with a minimum mechanical life of 10 million operations and electrical life of 1 million operations. With IP65 protection, AgNi contact material, and compliance with TS EN 60947-5-1, UL 508, and VDE 0660 standards, it is suitable for safety applications requiring dependable switching performance.
EMAS L51K23LUM321 Product Features
- Manufacturer: EMAS
- Series: L51 Metal Body Limit Switch
- Product Type: Safety Limit Switch
- Actuator Type: Metal Right Angle Key Safety Switch
- Contact Configuration: 1NO + 1NC
- Contact Action: Slow Action
- Rated Current: 3A at 240V AC
- Usage Category: AC15
- Mechanical Life: Minimum 10,000,000 operations
- Electrical Life: Minimum 1,000,000 operations
- Protection Rating: IP65
- Operating Temperature: -25°C to +80°C
- Standards: TS EN 60947-5-1, UL 508, VDE 0660
Applications
The EMAS L51K23LUM321 safety limit switch is commonly used in:
- Machine safety door monitoring
- Industrial automation systems
- Safety interlock applications
- Production line protection
- Machinery guarding systems
- Control and monitoring circuits
Why Choose EMAS L51K23LUM321?
The EMAS L51K23LUM321 combines a strong metal construction with reliable safety interlocking technology. Its right angle key actuator, slow action contacts, IP65 protection, and extended mechanical durability make it an effective solution for industrial machinery safety and access monitoring applications.
