£39.84

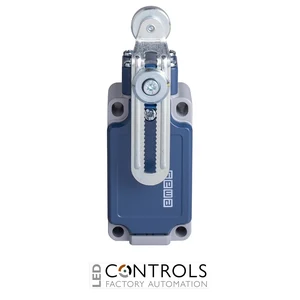

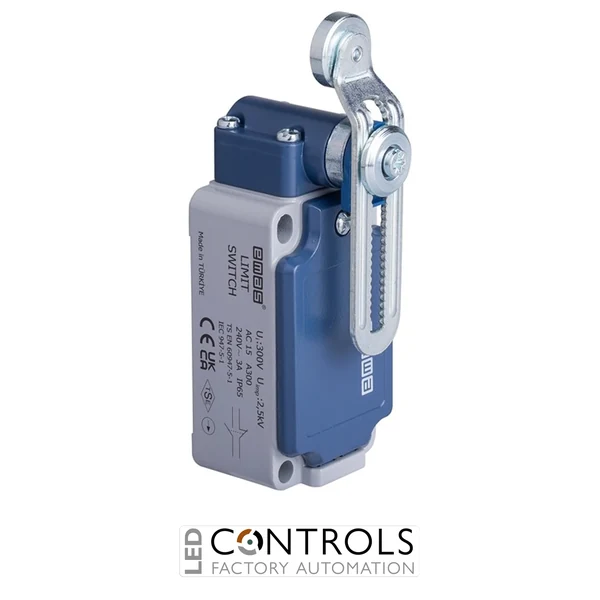

The EMAS L52K13MEM124 is a robust industrial limit switch from the EMAS L52 Metal Body series, designed for precise position detection and dependable machine control applications. Featuring a durable metal body construction, 18 mm metal adjustable roller arm actuator, and snap action switching mechanism with 1NO+1NC contacts, this limit switch delivers reliable performance in demanding industrial environments.
Engineered for industrial automation systems, machinery, and control circuits, the L52K13MEM124 provides long mechanical life, IP65 protection, and compliance with industrial standards including TS EN 60947-5-1, UL 508, and VDE 0660.
| Specification | Value |
|---|---|
| Product Type | Industrial Limit Switch |
| Series | L52 Metal Body |
| Actuator Type | Adjustable Roller Arm |
| Actuator Diameter | 18 mm |
| Actuator Material | Metal |
| Contact Action | Snap Action |
| Contact Configuration | 1NO + 1NC |
| Rated Current (Ie) | 3 A at 240V AC |
| Usage Category | AC15 |
| Mechanical Life | 10,000,000 operations minimum |
| Electrical Life | 1,000,000 operations minimum |
| Operating Frequency | Mechanical 3000 operations/hour, Electrical 1800 operations/hour |
| Insulation Voltage (Ui) | 300 V |
| Impulse Withstand Voltage (Uimp) | 2.5 kV |
| Operating Temperature | -25°C to +80°C |
| Protection Degree | IP65 |
| Contact Material | AgNi |
| Cable Section | 1-2.5 mm² |
| Screw Torque | 1.5 Nm |
| Standards | TS EN 60947-5-1, UL 508, VDE 0660, CE, ERE, TSE, UKCA |
The EMAS L52K13MEM124 combines a strong metal housing with a precision adjustable roller arm actuator to provide accurate and repeatable switching performance. Its high mechanical endurance, IP65 protection, and reliable snap action contacts make it an ideal solution for industrial automation and machine control systems.
The EMAS L52K13MEM124 uses an 18 mm metal adjustable roller arm actuator designed for flexible machine position detection.
This limit switch features a 1NO + 1NC snap action contact configuration.
The switch has an IP65 protection rating, providing protection against dust and low-pressure water jets.
The product complies with TS EN 60947-5-1, UL 508, VDE 0660, CE, ERE, TSE, and UKCA standards.
