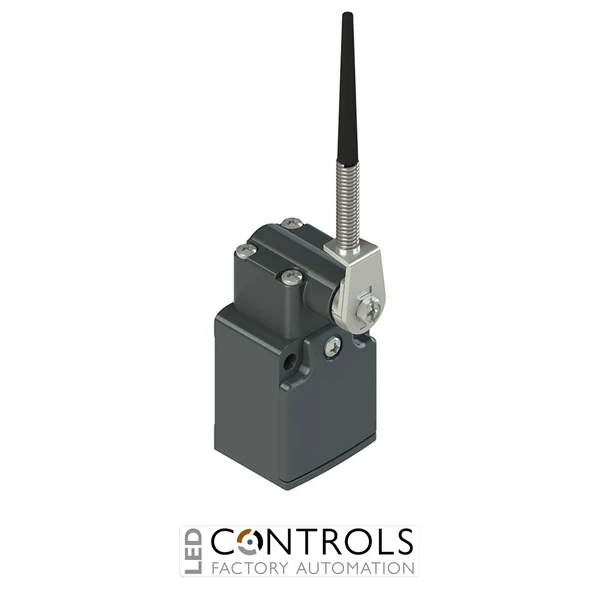

FC 334 Pizzato Position switch, coiled spring lever with plastic point

FC 334 Pizzato Position switch, coiled spring lever with plastic point

Pizzato FC334 electromechanical position switch with flexible rod rotating lever actuator, 1NO+1NC snap-action contacts and IP67 protection for industrial machinery applications.

SKU: FC334Alt SKU: FC334MPN: FC 334
Price
List Price £23.72 ex VAT
Your Price (ex VAT)
£23.72
Manufacturer Lead Time Standard Manufacturer Lead Time 4-5 Weeks, Call For Express Delivery Options
Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Sign up for a trade account Quick & easy setup
SUBTOTAL (EX VAT) £23.72
Trade pricing is personalised to your account

Manufacturer Lead Time

£23.72

Why Choose the Pizzato FC334 Safety Limit Switch?

The Pizzato FC334 is a heavy-duty position and safety limit switch designed for reliable detection of mechanical movement in industrial automation systems. As part of the robust Pizzato FC series, it is engineered with a durable metal housing and precision actuator for long-lasting performance in demanding environments.

This model features a coiled spring lever with plastic tip, allowing flexible and smooth actuation even when contact with moving components varies. Its snap-action contact block (1 NO + 1 NC) ensures fast and reliable switching, making it suitable for both control and safety-related applications.

With an IP67 protection rating and high mechanical durability, the FC334 is ideal for use in environments exposed to dust, moisture, and vibration. It is widely used in machine guarding, conveyors, and automated systems requiring consistent and accurate position monitoring.

Key Advantages

  • Heavy-duty industrial limit switch for automation systems.
  • Coiled spring lever actuator for flexible and responsive operation.
  • Snap-action contacts for fast switching performance.
  • Durable metal housing for harsh environments.
  • High IP67 protection rating against dust and water.
  • Reliable operation with high mechanical endurance.

Key Features

  • Pizzato FC series position switch.
  • 1 NO + 1 NC snap-action contact configuration.
  • Coiled spring lever with plastic tip actuator.
  • Metal housing with threaded conduit entry (PG11).
  • Compact cuboid design for easy installation.
  • High switching reliability for industrial applications.
  • Designed for continuous operation in automation systems.

Reliable Position Detection for Industrial Machinery

The Pizzato FC334 is designed to monitor movement and position within machinery, ensuring safe and controlled operation. Its flexible spring lever actuator adapts to variable contact conditions, making it ideal for applications where precise alignment is not always guaranteed.

The snap-action contact system ensures rapid switching, reducing electrical arcing and improving reliability. This makes the FC334 suitable for both control logic and safety-related signalling within industrial automation systems.

Typical Applications

  • Machine guarding and safety interlocking systems.
  • Conveyor and material handling systems.
  • Packaging and processing machinery.
  • Automated production lines.
  • Position monitoring in moving mechanical systems.
  • Industrial automation and OEM machinery.

Technical Specifications

IP Rating IP67
Series FC Series
Product type Position / safety limit switch
Contact configuration 1 NO + 1 NC
Contact type Snap-action (quick-break)
Actuator type Coiled spring lever with plastic tip
Rated voltage up to 400 V AC
Rated current up to 6–10 A (application dependent)
Protection rating IP67
Housing material Metal housing
Conduit entry PG11 threaded entry
Operating temperature approx. -25 to +80 °C
Mechanical durability up to 20 million cycles
Dimensions approx. 40 × 49 × 33 mm
HS Code 85369095
Contacts 1NO + 1NC
Actuator Type Spring rod / wobble stick
Housing Material Metal
Connection PG11 cable entry

Frequently Asked Questions

What is the Pizzato FC334 used for?

This switch is used for position detection and control in industrial machinery, helping monitor moving parts and ensure safe operation.

What type of actuator does the FC334 use?

It uses a coiled spring lever with a plastic tip, allowing flexible actuation in dynamic environments.

What contact configuration is included?

The switch features 1 normally open (NO) and 1 normally closed (NC) snap-action contacts.

Is the FC334 suitable for harsh environments?

Yes, it has a metal housing and IP67 protection rating, making it suitable for industrial conditions.

What is the mechanical life of this switch?

The FC334 can achieve up to 20 million mechanical cycles, depending on application conditions.
