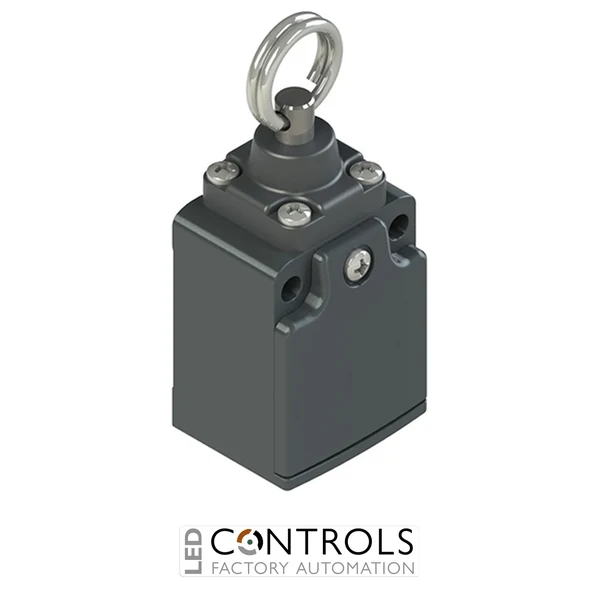

Pizzato FC376-E8 industrial rope-actuated position switch with 1NO+1NC contacts, metal housing and IP67 protection for emergency stop and automation applications.
£19.55
The Pizzato FC376-E8 is a heavy-duty industrial rope actuated position switch designed for reliable machine monitoring, emergency signalling, and safety applications. Part of the Pizzato FC Series, this robust limit switch features a durable metal housing, IP67 protection, and a 1NO + 1NC snap-action contact block for dependable switching performance in demanding industrial environments.
Designed for rope pull applications, the FC376-E8 provides reliable position detection along conveyors, production lines, and industrial machinery where extended-area actuation is required. Its rugged construction and high environmental protection make it suitable for harsh operating conditions.
| Brand | Pizzato Elettrica |
| Product Type | Rope Actuated Position Switch / Limit Switch |
| Model | FC376-E8 |
| Series | FC Series |
| Actuator Type | Rope Actuation |
| Contact Configuration | 1NO + 1NC Snap Action |
| Rated Current | 6A |
| Rated Voltage | Up to 250VAC / 400VAC applications depending on configuration |
| Protection Rating | IP67 |
| Housing Material | Metal |
| Connection | PG11 Conduit Entry |
| Operating Temperature | -25°C to +80°C |
The Pizzato FC376-E8 combines rugged mechanical construction with reliable snap-action switching technology, making it an ideal solution for industrial rope-operated detection systems. The metal enclosure, IP67 protection, and proven FC Series design provide long service life and dependable operation in demanding environments.
What is the Pizzato FC376-E8 used for?
The FC376-E8 is used for rope-operated position detection and safety monitoring on industrial machinery, conveyors, and automation systems.
What contact configuration does the FC376-E8 have?
The switch uses a 1NO + 1NC snap-action contact arrangement for reliable control and safety circuit integration.
Is the Pizzato FC376-E8 suitable for outdoor or harsh environments?
Yes. With an IP67 protection rating and metal housing, the FC376-E8 is designed for industrial environments where protection against dust and water ingress is required.
{ "@context": "https://schema.org/", "@type": "Product", "name": "Pizzato FC376-E8 Rope Actuated Position Switch", "brand": { "@type": "Brand", "name": "Pizzato Elettrica" }, "mpn": "FC376-E8", "description": "Heavy-duty rope actuated position switch with metal housing, 1NO + 1NC snap-action contacts, PG11 conduit entry and IP67 protection.", "additionalProperty": [ { "@type": "PropertyValue", "name": "Actuator Type", "value": "Rope Actuation" }, { "@type": "PropertyValue", "name": "Contact Configuration", "value": "1NO + 1NC Snap Action" }, { "@type": "PropertyValue", "name": "Protection Rating", "value": "IP67" } ] }| Current | 6 A |
|---|---|
| IP Rating | IP67 |
| Series | FC Series |
| Product type | Rope-actuated position / limit switch |
| Contact configuration | 1 NO + 1 NC |
| Rated current | up to 6 A |
| Rated voltage | up to 400 V AC |
| Protection rating | IP67 |
| Operating temperature | approx. -25 to +80 °C |
| Housing material | Metal |
| Dimensions | approx. 40 × 49 × 33 mm |
| Mechanical durability | up to 20 million operations |
| HS Code | 85369095 |
