Why Choose the Pizzato FD1134 Limit Switch?
The Pizzato FD1134 is a heavy-duty industrial position limit switch with coiled spring rod actuator, engineered for reliable and flexible position detection in demanding automation environments. As part of the rugged Pizzato FD series, it delivers consistent switching performance and long mechanical life in high-cycle industrial applications.

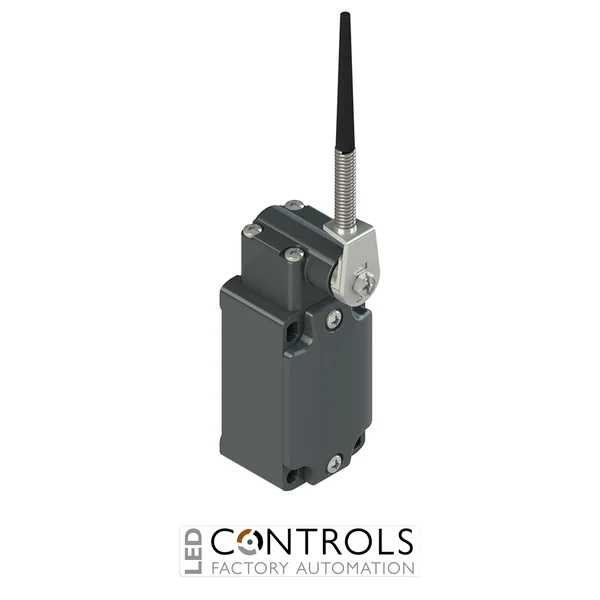

This model features a coiled spring lever with plastic tip, designed to accommodate misalignment and variable contact points. This makes it particularly suitable for applications where precise alignment is not guaranteed. Its metal housing with PG13.5 conduit entry ensures durability and resistance to vibration, dust, and moisture in harsh industrial conditions.
With a 2 NC snap-action contact configuration, the FD1134 is optimised for safety circuits where fail-safe operation is required. Normally closed contacts ensure that circuits open in the event of actuation or faults, making it ideal for machine safety and interlocking systems.
Key Advantages
- Heavy-duty limit switch for industrial automation.
- Coiled spring actuator compensates for misalignment.
- 2 NC contact configuration ideal for safety circuits.
- Durable metal housing for harsh environments.
- Snap-action contacts for fast and reliable switching.
- IP67 protection rating for dust and water resistance.
Key Features
- Pizzato FD series position switch.
- Coiled spring lever with plastic tip.
- Contact configuration: 2 NC.
- Snap-action switching mechanism.
- PG13.5 cable entry (no cable gland supplied).
- IP67 protection rating.
- Designed for high-cycle industrial applications.
Designed for Flexible and Safe Actuation
Limit switches such as the Pizzato FD1134 are essential for monitoring the position of moving machine components. The coiled spring actuator allows flexible engagement with moving parts, reducing mechanical stress and improving durability in applications with irregular motion.
The use of normally closed contacts enhances safety by ensuring fail-safe behaviour, where circuits open in the event of a fault or activation, making it suitable for critical machine safety applications.
Typical Applications
- Machine safety interlocks and protective circuits.
- End-of-travel detection in industrial machinery.
- Automation and control systems.
- Conveyor and material handling equipment.
- Packaging and processing machinery.
- OEM machine building and integration.
