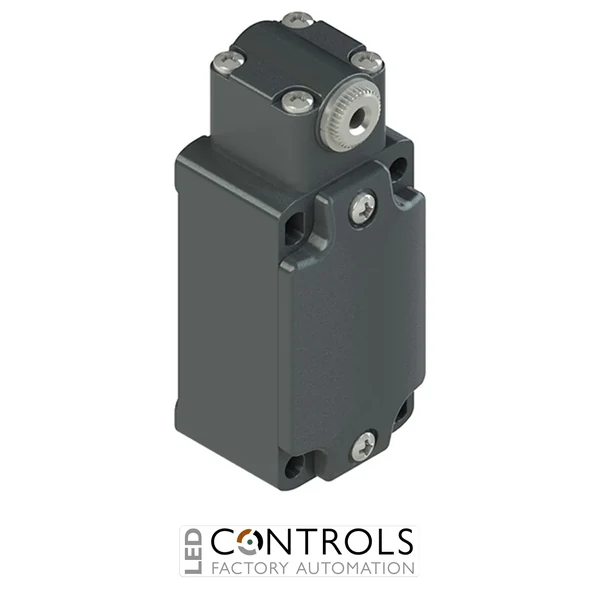

Why Choose the Pizzato FD1158-M2 Position Limit Switch?
The Pizzato FD1158-M2 is a heavy-duty position limit switch designed for industrial applications requiring rotating lever actuation and enhanced safety performance. As part of the robust Pizzato FD series, it provides dependable position detection and long-term reliability in demanding automation environments.
Engineered with a rugged metal housing, the FD1158-M2 ensures durability under continuous mechanical stress. It features a 2 normally closed (NC) snap-action contact configuration with positive opening, making it ideal for safety-related control circuits where reliable disconnection is critical.
This version includes a compact head designed for rotating levers, allowing flexible actuator configurations depending on machine design requirements. With an M20 × 1.5 threaded conduit entry and IP67 protection rating, it is suitable for harsh industrial environments exposed to dust, moisture and vibration.
Key Advantages
- Heavy-duty industrial limit switch for rotating lever applications.
- 2NC contacts provide reliable safety circuit functionality.
- Snap-action switching ensures fast and consistent response.
- Positive opening mechanism for enhanced safety compliance.
- Compact rotating lever head for flexible machine integration.
- IP67 protection for operation in harsh environments.
Key Features
- Pizzato FD series position switch.
- 2 normally closed contacts, snap-action switching.
- Positive opening contacts for safety applications.
- Compact head for rotating lever actuators.
- Metal housing with high mechanical strength.
- Silver alloy contacts for reliable electrical performance.
- M20 × 1.5 threaded conduit entry.
- IP67 protection rating (EN 60529).
Reliable Position Detection with Safety Integration
The Pizzato FD1158-M2 is designed for applications where both precise position detection and safety functionality are required. Its dual NC contact configuration ensures redundancy, while the snap-action mechanism delivers fast and reliable switching.
The compact rotating lever head allows integration with a wide range of actuators, making it ideal for custom machine designs. Its robust construction ensures long-term reliability even in environments exposed to vibration, dust and moisture.
Typical Applications
- Machine safety guarding and interlock systems.
- Industrial automation and production lines.
- Custom machinery requiring rotating lever actuation.
- Conveyor and material handling systems.
- Packaging and assembly machinery.
- OEM machine building and control panels.
