Why Choose the Pizzato FD504-K50 Position Limit Switch?

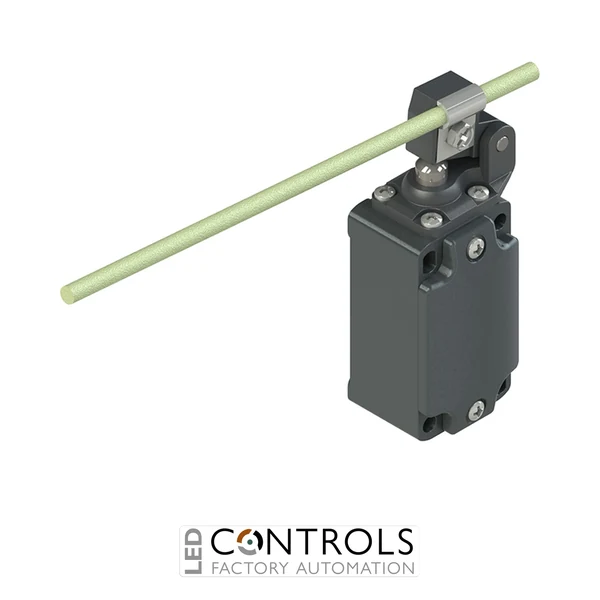

The Pizzato FD504-K50 is a heavy-duty industrial position limit switch designed for precise detection of mechanical movement in demanding automation environments. As part of the robust Pizzato FD series, it features a piston plunger with adjustable glass-fibre rod lever, allowing flexible and accurate actuation across a wide range of machine configurations.
This variant includes an integrated M12 5-pole metal connector, enabling fast and secure electrical connection without the need for separate wiring terminals. Its snap-action contact system (1 NO + 1 NC) ensures rapid and consistent switching performance for both control and safety-related circuits.
With a rugged metal housing, IP67 protection rating and wide operating temperature range, the FD504-K50 is engineered for reliable operation in harsh industrial environments exposed to dust, moisture and vibration.
Key Advantages
- Heavy-duty limit switch for industrial automation.
- Integrated M12 connector for fast installation and wiring.
- Adjustable glass-fibre rod lever for flexible actuation.
- Durable metal housing for harsh environments.
- 1 NO + 1 NC contacts for versatile control integration.
- Snap-action switching ensures fast response.
Key Features
- Pizzato FD series position switch.
- Piston plunger actuator with adjustable fibre-glass rod lever.
- Snap-action contact block (1 NO + 1 NC).
- M12 5-pole metal connector for plug-in wiring.
- Silver contacts for reliable conductivity.
- Single conduit design with integrated connector interface.
- High mechanical endurance for repeated operations.
Reliable Position Detection with Plug-In Connectivity
The FD504-K50 is designed to detect mechanical movement and provide accurate feedback to control systems. Its snap-action contacts ensure consistent switching regardless of actuation speed, improving both machine safety and operational efficiency.
The integrated M12 connector simplifies installation and maintenance, making this model particularly suitable for modular machinery and systems requiring quick replacement or servicing.
Typical Applications
- Machine guarding and safety interlocking systems.
- Industrial automation and modular machinery.
- Conveyor and material handling equipment.
- Packaging and production machinery.
- Position monitoring of moving components.
- OEM equipment requiring quick-connect wiring solutions.
