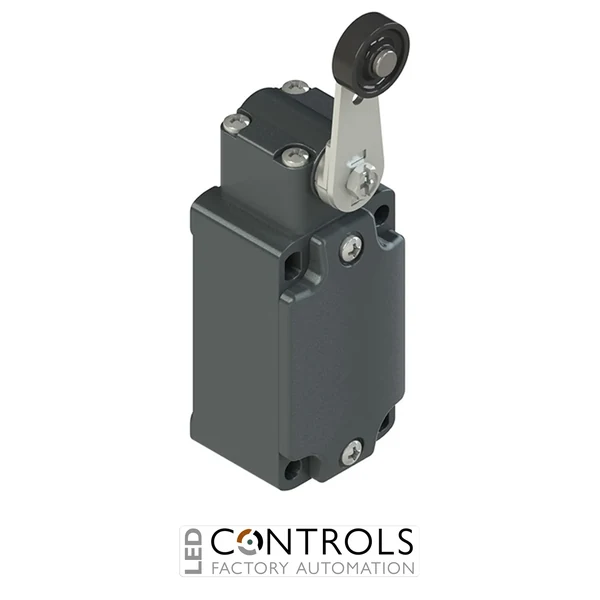

Why Choose the Pizzato FD552-K21 Position Switch?
The Pizzato FD552-K21 is a robust position limit switch with roller lever and pre-assembled cable gland, designed for reliable mechanical detection in industrial automation systems. As part of the proven Pizzato FD series, it offers consistent switching performance, high durability and simplified installation in demanding environments.
This model features a durable metal housing combined with a technopolymer roller lever actuator, ensuring smooth engagement with moving machine components. The integrated K21 cable gland allows faster installation and improved sealing for cable connections, reducing wiring time on site.
The FD552-K21 includes 1 normally open (NO) and 1 normally closed (NC) snap action contact with positive opening, making it suitable for both control and safety-related applications. With IP67 protection and a wide operating temperature range, it is engineered for reliable use in harsh industrial environments.
Key Advantages
- Heavy-duty position switch for industrial automation.
- Pre-assembled K21 cable gland simplifies installation.
- Roller lever actuator ensures smooth and accurate actuation.
- 1 NO + 1 NC contact configuration for versatile applications.
- Positive opening contacts for safety circuits.
- IP67 protection rating for resistance to dust and water ingress.
Key Features
- Pizzato FD series position switch.
- 1 NO + 1 NC snap action contacts.
- Positive opening mechanism for enhanced safety compliance.
- Technopolymer roller lever with approx. 20 mm diameter.
- Metal housing with integrated cable gland.
- K21 cable gland for cable diameters approx. 6 to 12 mm.
- Compact rotating head for flexible mounting.
Accurate Position Detection for Industrial Systems
Position switches such as the Pizzato FD552-K21 are essential components in industrial automation systems. They detect the movement or position of mechanical parts and provide electrical feedback to control systems, ensuring safe operation and improved efficiency.
The addition of the integrated cable gland makes this version particularly suited for installations requiring fast assembly and reliable cable sealing, reducing installation time and improving system reliability.
Typical Applications
- End-of-travel detection in industrial machinery.
- Machine guarding and safety interlock systems.
- Conveyor and material handling systems.
- Packaging and production equipment.
- Automated manufacturing lines.
- General industrial automation environments.
