Why Choose the Pizzato FM1001-W3M2 Limit Switch?

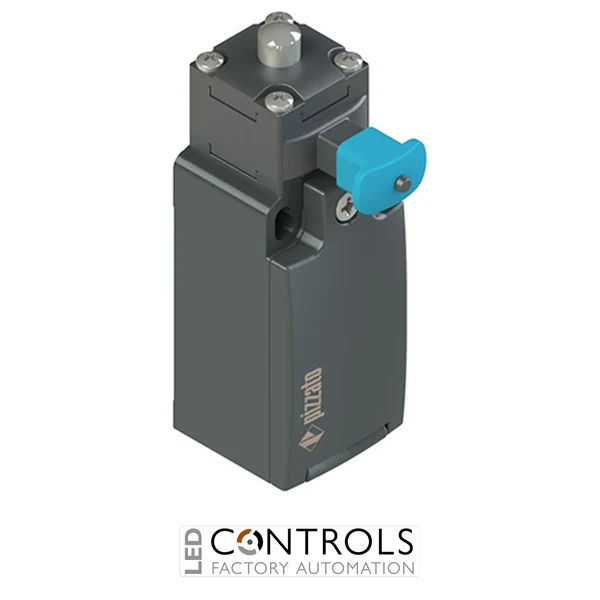

The Pizzato FM1001-W3M2 is a heavy-duty limit/position switch with reset mechanism, engineered for precise detection and enhanced operational safety in industrial automation systems. As part of the robust Pizzato FM series, it is designed for demanding applications requiring reliable position monitoring and controlled reset functionality.
This model features a short piston plunger actuator combined with a reset device (W3 simultaneous reset), allowing the switch to be manually or mechanically reset after actuation. Its metal housing construction ensures durability and long service life in harsh industrial environments.
Equipped with 2 normally open (NO) slow-action contacts, the FM1001-W3M2 provides dependable switching for control circuits. The M20 x 1.5 threaded conduit entry enables straightforward installation, while its high ingress protection makes it suitable for washdown and heavy-duty applications.
Key Advantages
- Reliable position detection with integrated reset function.
- Short plunger actuator for accurate mechanical operation.
- 2 NO contacts for flexible control circuit design.
- Simultaneous reset mechanism (W3) for controlled operation.
- Durable metal housing for industrial environments.
- IP67 / IP69K protection for resistance to dust, water and cleaning processes.
Key Features
- Pizzato FM series limit switch.
- Short piston plunger actuator.
- Integrated reset device (W3 simultaneous reset).
- 2 NO slow-action contacts (B10 contact block).
- Metal housing construction.
- M20 x 1.5 threaded conduit entry.
- IP67 (EN 60529) and IP69K (ISO 20653) protection.
- Designed for safety and controlled reset applications.
Controlled Reset for Enhanced Safety Systems
Limit switches with reset functionality, such as the FM1001-W3M2, are commonly used in applications where a machine must not restart automatically after actuation. The integrated reset mechanism ensures that systems require intentional reset before resuming operation, improving safety and process control.
The Pizzato FM series is widely trusted by engineers for its mechanical strength, reliability and compatibility with industrial automation systems, making it ideal for safety-critical installations.
Typical Applications
- Industrial machinery with controlled restart requirements.
- Safety interlocking and reset systems.
- Conveyor and material handling equipment.
- Packaging and processing machinery.
- End-of-travel detection with manual reset.
- OEM machine building applications.
