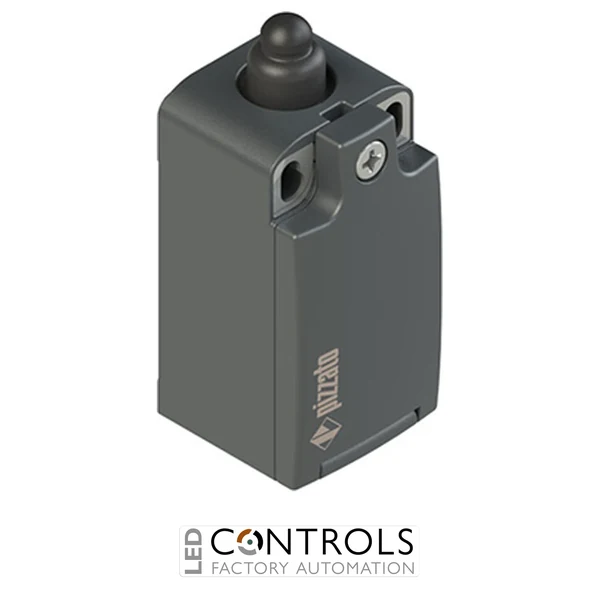

Why Choose the Pizzato FR5A1-XA Limit Switch?
The Pizzato FR5A1-XA is a compact and highly reliable limit switch with short piston plunger actuator, designed for accurate position detection in industrial automation systems. As part of the proven Pizzato FR series, it delivers consistent switching performance for machine control and monitoring applications.
Built with a durable technopolymer housing and precision internal components, the FR5A1-XA ensures long service life in demanding industrial environments. Its compact design allows seamless integration into machinery, conveyors and control panels where space efficiency and reliability are critical.
This variant features a short piston plunger with external gasket, a 1 normally open + 1 normally closed contact configuration and a PG11 conduit entry without cable gland or connector. With snap-action switching, silver contacts, IP67 protection and an operating temperature range of approximately -25 to +80 °C, it is well suited for a wide range of industrial applications.
Key Advantages
- Reliable position detection for industrial machinery.
- 1 NO + 1 NC contacts for flexible control circuits.
- Open PG11 conduit entry allows flexible wiring configurations.
- IP67 protection rating for resistance to dust and moisture.
- Compact and durable technopolymer construction.
- Manufactured by Pizzato Elettrica, a leading European automation specialist.
Key Features
- Pizzato FR series limit switch.
- Short piston plunger actuator with external gasket.
- 1 NO + 1 NC contact configuration.
- Snap-action switching mechanism.
- Silver contacts for reliable electrical performance.
- PG11 cable entry without gland or connector.
- Wide operating temperature range -25 to +80 °C.
Precise Position Detection for Industrial Automation
Limit switches such as the Pizzato FR5A1-XA detect the position of moving machine components and convert mechanical movement into electrical signals. This enables control systems to monitor machine status, trigger operations or safely stop equipment when required.
The FR series is widely used across industrial automation thanks to its reliability, compact design and versatility. Its plunger actuator is particularly suited for applications requiring accurate linear actuation and repeatable switching performance.
Typical Applications
- Position detection in industrial machinery.
- End-of-travel monitoring for moving components.
- Packaging and processing equipment.
- Conveyor systems and material handling.
- General automation and control systems.
