Why Choose the Pizzato FR656-W3K21 Position Switch?

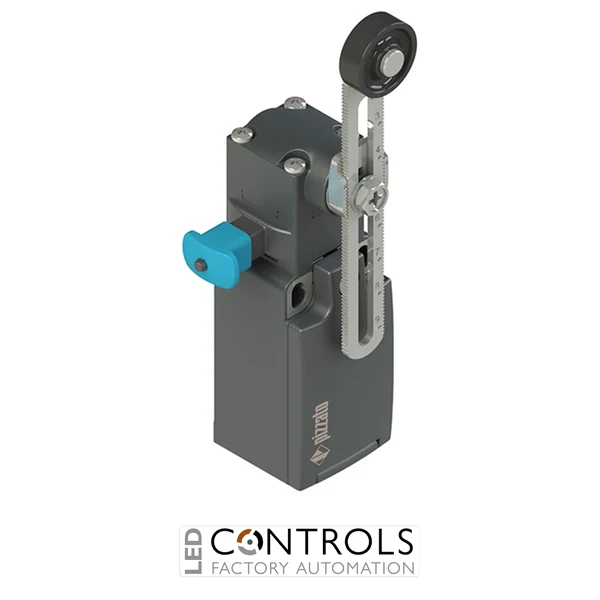

The Pizzato FR656-W3K21 is a high-performance industrial position switch with integrated reset device, designed for precise detection and controlled operation in automation and machine safety systems. As part of the trusted Pizzato FR series, this model features an adjustable safety lever with a technopolymer roller, ensuring smooth actuation and reliable switching even under mechanical misalignment.
Constructed with a durable technopolymer housing and reinforced zinc-plated steel components, the FR656-W3K21 is engineered for long-term reliability in harsh industrial environments. Its sealed design provides excellent resistance against dust and water ingress, making it suitable for demanding applications and washdown conditions.
This variant includes a 1 NO + 1 NC contact configuration with a slow-action switching mechanism, combined with positive opening operation and a manual reset function. This ensures safe and controlled switching in both control and safety-critical circuits such as machine guarding and interlocking systems.
Key Advantages
- Reliable limit switch with reset function for industrial position detection.
- Adjustable roller lever for smooth and consistent actuation.
- 1 NO + 1 NC contacts for flexible control circuits.
- Manual reset device enhances operational safety and control.
- Positive opening contacts for fail-safe switching.
- IP67 and IP69K protection ratings for harsh environments.
Key Features
- Pizzato FR series position switch.
- Adjustable safety lever with 20 mm technopolymer roller.
- Manual reset mechanism (simultaneous reset).
- 1 normally open + 1 normally closed contact.
- Slow-action switching mechanism.
- Positive opening safety function.
- Rated current up to 10 A.
- Maximum switching voltage up to 250 V AC.
- PG13.5 cable entry.
Controlled Switching for Industrial Safety Systems
Position switches such as the Pizzato FR656-W3K21 are used to detect movement or position within industrial machinery. The adjustable roller lever ensures smooth engagement with moving parts, reducing wear and enabling consistent actuation in high-cycle environments.
The integrated manual reset function ensures that the switch must be reset after activation, providing controlled restart capability. This makes it particularly suitable for safety circuits, emergency stop systems and machine interlocking applications where operator intervention is required before restarting machinery.
Typical Applications
- Industrial machinery position monitoring.
- Safety interlocking and guarding systems.
- Emergency stop and reset-controlled systems.
- Conveyor and material handling systems.
- Packaging and processing equipment.
- General industrial automation systems.
