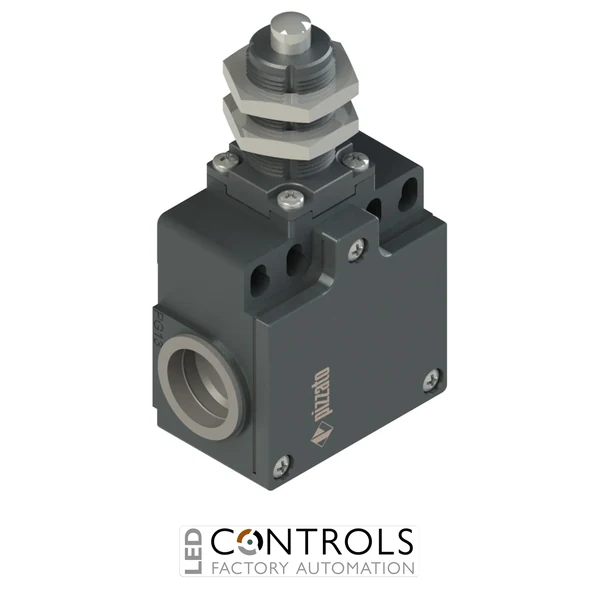

Pizzato FZ212-M2 is an IP67 metal industrial position switch featuring a threaded piston plunger, 2 × (1NO + 1NC) snap-action contacts and two M20 × 1.5 threaded cable entries for dependable machinery position monitoring.
£23.15
The Pizzato FZ212-M2 is a robust industrial position and limit switch with a threaded piston plunger, designed for dependable mechanical position, presence and end-of-travel detection in machinery and automation systems. As part of the established Pizzato FZ series, it combines a durable metal enclosure with direct linear plunger actuation for reliable operation in demanding industrial environments.
The FZ212-M2 incorporates a 2 × (1NO + 1NC) snap-action contact configuration, providing a total of two normally open and two normally closed contacts. Its contact block 2 uses Pizzato's R-type snap-action switching mechanism, delivering rapid and repeatable electrical switching once the actuator reaches its operating point.
The threaded piston plunger provides direct mechanical actuation by cams, stops and other moving machine components. The M2 configuration features a metal enclosure with two M20 × 1.5 threaded cable entries and IP67 protection, providing a durable solution for metric industrial wiring installations and demanding machinery environments.
Position switches such as the Pizzato FZ212-M2 provide an electromechanical method of detecting the physical position, presence or end of travel of moving machine components. When a cam, stop or other component depresses the threaded piston plunger, mechanical movement is transferred to the internal contact block, producing rapid snap-action switching for use by the associated machine control system.
The combination of two normally open and two normally closed contacts provides flexibility for signalling, sequencing and control functions from a single position switch. Combined with its robust metal enclosure, threaded plunger, M20 metric cable entries and IP67 protection, the FZ212-M2 provides a dependable solution for position monitoring across industrial machinery and automated equipment.
| HS Code | 85369095 |
|---|---|
| Manufacturer | Pizzato Elettrica |
| Series | FZ |
| Model | FZ212-M2 |
| Manufacturer part number | FZ 212-M2 |
| Product type | Position / limit switch |
| Actuator type | Threaded piston plunger |
| Contact configuration | 2 × (1NO + 1NC) |
| Normally open contacts | 2 |
| Normally closed contacts | 2 |
| Contact block | 2 |
| Contact type | R |
| Switching action | Snap action |
| Positive opening | No |
| Suitable for safety functions | No |
| Housing material | Metal |
| Housing finish | Painted |
| Enclosure form | Block |
| Cable entries | 2 × M20 × 1.5 threaded entries |
| Electrical connection | Metric cable entry |
| Protection rating | IP67 according to EN 60529 |
| Status indicator | No |
| Mounting | Machine / equipment mounting |
| Application | Industrial position and travel monitoring |
| Alternative SKU | FZ212M2 |
| Barcode / EAN | 8018851359668 |
The FZ212-M2 is an industrial position and limit switch used to detect the position, presence or end of travel of mechanical components in machinery and automation systems.
The FZ212-M2 uses a threaded piston plunger designed for direct mechanical actuation by cams, stops and other moving machine components.
The FZ212-M2 incorporates contact block 2 with 2 × (1NO + 1NC) snap-action contacts, providing two normally open and two normally closed contacts.
The M2 version has two M20 × 1.5 threaded cable entries, providing metric cable entry points for industrial control wiring.
The FZ212-M2 provides IP67 protection according to EN 60529, making it suitable for industrial environments requiring dependable protection against dust and moisture ingress.
Pizzato Elettrica FZ series position switches provide dependable mechanical position detection for machine builders, automation engineers and industrial control applications, combining robust metal construction with versatile actuator options and reliable electromechanical switching technology.
