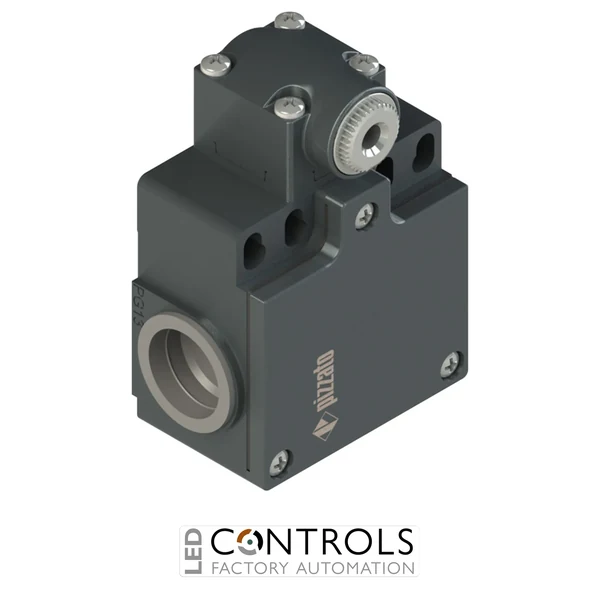

Pizzato FZ2138 is an IP67 metal position switch for swivelling levers with 3NC slow-action contacts, positive-opening operation and two PG 13.5 cable entries for industrial machinery and automation applications.
£20.47
The Pizzato FZ2138 is a robust industrial position switch for swivelling levers designed for reliable position, limit and movement detection in industrial machinery and automation systems. As part of the Pizzato FZ series, it combines a durable metal housing with a three-contact slow-action switching arrangement for dependable machine monitoring and control.
This position switch features a 3NC slow-action contact configuration, providing three normally closed contacts for machine control and safety-related applications. Positive-opening operation provides direct mechanical opening of the safety contacts, making the FZ2138 suitable for safety functions when correctly combined with a suitable actuator and incorporated into an appropriately designed machine safety system.
With a rugged IP67-rated metal housing and two PG 13.5 threaded cable entries, the FZ2138 is designed for dependable service in demanding industrial environments. The switch is supplied with a head designed for swivelling levers, allowing a compatible Pizzato actuator to be selected according to the movement, geometry and operating requirements of the machine.
Position switches such as the Pizzato FZ2138 provide electromechanical detection of the movement or position of machine components. Movement of a compatible swivelling lever operates the internal slow-action contact block, allowing the machine control or safety system to identify limits, positions and mechanical states reliably.
The FZ2138 is particularly useful where the actuator needs to be selected separately to suit a specific machine design. Compatible swivelling levers can provide different roller materials, dimensions and operating geometries, while the robust FZ metal housing and IP67 protection make the switch suitable for demanding industrial installations.
| HS Code | 85369095 |
|---|---|
| Manufacturer | Pizzato Elettrica |
| Series | FZ |
| Model | FZ 2138 |
| Alternative SKU | FZ2138 |
| Product type | Position switch for swivelling levers |
| Actuator | Swivelling lever type, actuator supplied separately |
| Contact configuration | 3NC |
| Contact block | B21 |
| Contact action | Slow action |
| Positive opening | Yes |
| Suitable for safety functions | Yes, with a suitable safety-rated actuator and installation |
| Protection rating | IP67 according to EN 60529 |
| Housing material | Metal |
| Housing finish | Painted |
| Cable entries | 2 × PG 13.5 threaded entries |
| Status indicator | No |
| Barcode | 8018851052026 |
The FZ2138 is used for reliable position, movement and limit detection in industrial machinery, automation equipment and safety-related machine control applications.
The switch has a 3NC slow-action contact configuration, providing three normally closed contacts.
The FZ2138 has a head designed for swivelling lever actuators. The lever actuator is selected separately to suit the required machine movement and installation.
The switch has an IP67 protection rating according to EN 60529, providing protection against dust ingress and temporary immersion in water when correctly installed.
Yes. The FZ2138 incorporates positive-opening contacts and can be used for safety functions when paired with a suitable safety-rated actuator and correctly integrated into an appropriate machine safety system.
Pizzato Elettrica FZ series position switches provide robust electromechanical position detection for machine builders, automation engineers and industrial equipment manufacturers requiring reliable switching, flexible actuation and durable construction.
