KBD1L20 - PLASTIC ROLLER SIDE PUSH LEVER 2NO SLOW

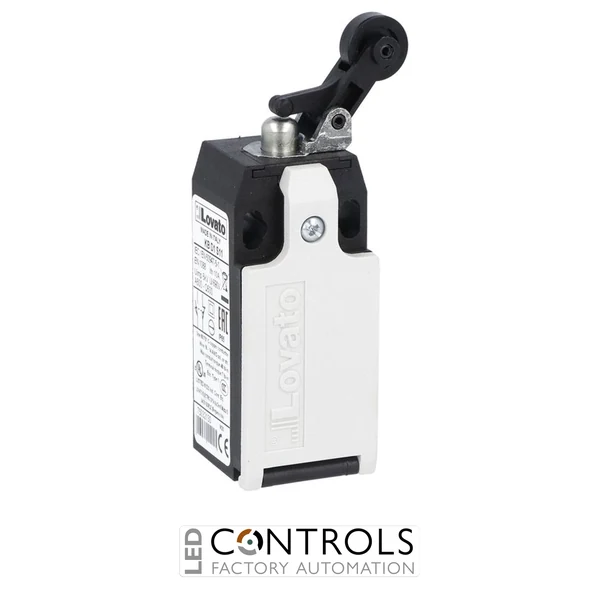

KBD1L20 – PLASTIC ROLLER SIDE PUSH LEVER 2NO SLOW

Lovato Electric KBD1L20 electrical installation component for professional commercial and industrial assemblies, suitable for maintenance, replacement and panel building applications.

SKU: KBD1L20MPN: KBD1L20
Price
List Price £38.46 ex VAT
Your Price (ex VAT)
£38.46
Manufacturer Lead Time Please contact us for a delivery time before you order
Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Sign up for a trade account Quick & easy setup
SUBTOTAL (EX VAT) £38.46
Trade pricing is personalised to your account

Manufacturer Lead Time

£38.46

Lovato KBD1L20 Limit Switch - K Series Roller Side Push Lever 2NO Slow Action Plastic Roller

The Lovato KBD1L20 is a K Series industrial limit switch featuring a roller side push lever actuator with a plastic roller, polymer thermoplastic housing and 2NO slow-action contacts. Designed for dependable mechanical position detection and industrial automation applications, this compact limit switch provides reliable switching performance for machinery and control systems.

Product Overview

The Lovato KBD1L20 limit switch is engineered for applications requiring accurate position sensing, robust construction and repeatable switching operation. It features K Series construction, EN 50047 compliant dimensions, a bottom M20 cable entry and a roller side push lever actuator with a plastic roller.

With a polymer thermoplastic body, IP65 protection and two normally open slow-action contacts, the KBD1L20 provides a reliable solution for industrial machinery, automation equipment and electrical control installations.

Key Features

  • Genuine Lovato Electric KBD1L20 industrial limit switch
  • K Series roller side push lever actuator
  • Plastic roller actuator design
  • 2NO slow-action contact configuration
  • Polymer thermoplastic housing
  • M20 bottom cable entry
  • EN 50047 compliant dimensions
  • IP65 protection rating
  • Suitable for industrial automation and machine position monitoring

Applications

  • Industrial machinery position detection
  • Automation control systems
  • Machine monitoring equipment
  • Material handling systems
  • Manufacturing process machinery
  • Electrical control panels

Why Choose Lovato KBD1L20?

Lovato Electric K Series limit switches are designed for reliable industrial operation, offering durable construction, accurate mechanical sensing and simple installation. The KBD1L20 combines a robust thermoplastic enclosure, roller lever actuator and slow-action contact technology for dependable machine control.

Technical Specifications

Weight [g] 76
Qty. per package 1
Multiple qty. of packs per order 1
Package dimensions [mm] 100X044X032
Volume [cm³] 140.8
Bar code [EAN13] 8013975113998
Product designation Roller side push lever
Product type designation KBD
Housing Polymer thermoplastic
Roller Metal
Type of contact 1NO+1NC Slow action
Thermal current Ith 10
IEC/EN 60947-5-1 designation A600 Q600
Rated insulation voltage Ui [V] 690
Rated impulse withstand voltage Uimp 6
Insulation class II
Short-circuit protection with fuse 10 gG/SC QUICK FUSE
min 16
max 14
IEC Conventional free air thermal current Ith 10
Resistance per pole (average value) <10
Operating head fixing Locking bayonet insert
min [mm²] 1.5
max [mm²] 2.5
Cable connection Self-releasing screw terminal
Cable entry M20 on the bottom
Mechanical life <10000000
Mechanical operation 3600
min [°C] -40
max [°C] +70
Terminals IP20
Body housing IP65
Pollution degree 3
ETIM 8.0 EC000030 - End switch
HS Code 85365080
Housing Material Plastic
Connection M20 cable entry

Frequently Asked Questions

What is the Lovato KBD1L20 used for?

The Lovato KBD1L20 is used for detecting mechanical movement and position changes in industrial machinery, automation systems and control equipment.

What type of actuator does the KBD1L20 have?

The KBD1L20 features a roller side push lever actuator fitted with a plastic roller.

What contacts are included in the Lovato KBD1L20?

The Lovato KBD1L20 includes two normally open (2NO) slow-action contacts.

What cable entry does the KBD1L20 use?

The Lovato KBD1L20 uses an M20 cable entry located at the bottom of the housing.
