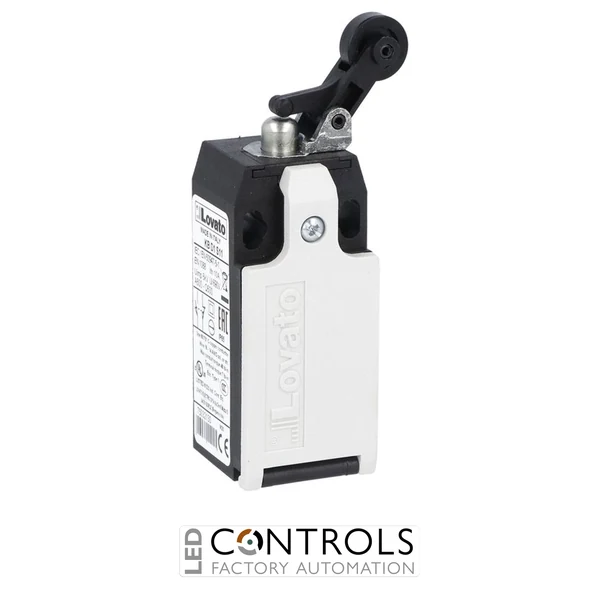

KBD1S02 – PLASTIC ROLLER SIDE PUSH LEVER 2NC SNAP

Q: What is the Lovato KBD1S02 used for?

The Lovato KBD1S02 is used for detecting mechanical movement and position changes in industrial machinery, automation systems and control equipment.

Q: What type of actuator does the KBD1S02 have?

The KBD1S02 features a roller side push lever actuator fitted with a plastic roller.

Q: What contacts are included in the Lovato KBD1S02?

The Lovato KBD1S02 includes two normally closed (2NC) snap-action contacts.

Q: What cable entry does the KBD1S02 use?

The Lovato KBD1S02 uses an M20 cable entry located at the bottom of the housing.

Lovato Electric KBD1S02 electrical installation component for professional commercial and industrial assemblies, suitable for maintenance, replacement and panel building applications.

SKU: KBD1S02MPN: KBD1S02

List Price £48.16 ex VAT

Your Price (ex VAT)

£48.16

Manufacturer Lead Time Please contact us for a delivery time before you order

Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Quantity:

SUBTOTAL (EX VAT) £48.16

Trade pricing is personalised to your account

Manufacturer Lead Time

£48.16

Lovato KBD1S02 Limit Switch - K Series Roller Side Push Lever 2NC Snap Action Plastic Roller

The Lovato KBD1S02 is a K Series industrial limit switch featuring a roller side push lever actuator, plastic roller, polymer thermoplastic housing and 2NC snap-action contacts. Designed for reliable mechanical position detection and industrial automation applications, this compact limit switch provides fast and repeatable switching performance for machinery and control systems.

Product Overview

The Lovato KBD1S02 limit switch is engineered for applications requiring accurate position monitoring, dependable mechanical operation and easy installation. It features EN 50047 compliant dimensions, a bottom M20 cable entry and a roller side push lever actuator with a plastic roller.

Part of the Lovato K Series range, the KBD1S02 combines a durable polymer thermoplastic enclosure, IP65 protection and snap-action contacts to provide a reliable solution for industrial machinery, automation equipment and electrical control applications.

Key Features

Genuine Lovato Electric KBD1S02 industrial limit switch
K Series roller side push lever actuator
Plastic roller actuator design
2NC snap-action contact configuration
Polymer thermoplastic housing
M20 bottom cable entry
EN 50047 compliant dimensions
IP65 protection rating
Suitable for industrial automation and machine position detection

Applications

Industrial machinery position detection
Automation control systems
Machine monitoring equipment
Material handling systems
Manufacturing process machinery
Electrical control panels

Why Choose Lovato KBD1S02?

Lovato Electric K Series limit switches are designed for reliable industrial operation, offering durable construction, accurate mechanical sensing and simple installation. The KBD1S02 combines a robust thermoplastic enclosure, roller lever actuator and snap-action contact technology for dependable machine control.

Technical Specifications

Weight [g]	80
Qty. per package	1
Multiple qty. of packs per order	1
Package dimensions [mm]	100X044X032
Volume [cm³]	140.8
Bar code [EAN13]	8013975114018
Product designation	Roller side push lever
Product type designation	KBD
Housing	Polymer thermoplastic
Roller	Metal
Type of contact	1NO+1NC Snap action
Thermal current Ith	10
IEC/EN 60947-5-1 designation	A600 Q600
Rated insulation voltage Ui [V]	690
Rated impulse withstand voltage Uimp	6
Insulation class	II
Short-circuit protection with fuse	10 gG/SC QUICK FUSE
min	16
max	14
IEC Conventional free air thermal current Ith	10
Resistance per pole (average value)	<10
Operating head fixing	Locking bayonet insert
min [mm²]	1.5
max [mm²]	2.5
Cable connection	Self-releasing screw terminal
Cable entry	M20 on the bottom
Mechanical life	<10000000
Mechanical operation	3600
min [°C]	-40
max [°C]	+70
Terminals	IP20
Body housing	IP65
Pollution degree	3
ETIM 8.0	EC000030 - End switch
HS Code	85365080
Housing Material	Plastic
Connection	M20 cable entry

Frequently Asked Questions

What is the Lovato KBD1S02 used for?

The Lovato KBD1S02 is used for detecting mechanical movement and position changes in industrial machinery, automation systems and control equipment.

What type of actuator does the KBD1S02 have?

The KBD1S02 features a roller side push lever actuator fitted with a plastic roller.

What contacts are included in the Lovato KBD1S02?

The Lovato KBD1S02 includes two normally closed (2NC) snap-action contacts.

What cable entry does the KBD1S02 use?

The Lovato KBD1S02 uses an M20 cable entry located at the bottom of the housing.

Weight [g]	80
Qty. per package	1
Multiple qty. of packs per order	1
Package dimensions [mm]	100X044X032
Volume [cm³]	140.8
Bar code [EAN13]	8013975114018
Product designation	Roller side push lever
Product type designation	KBD
Housing	Polymer thermoplastic
Roller	Metal
Type of contact	1NO+1NC Snap action
Thermal current Ith	10
IEC/EN 60947-5-1 designation	A600 Q600
Rated insulation voltage Ui [V]	690
Rated impulse withstand voltage Uimp	6
Insulation class	II
Short-circuit protection with fuse	10 gG/SC QUICK FUSE
min	16
max	14
IEC Conventional free air thermal current Ith	10
Resistance per pole (average value)	<10
Operating head fixing	Locking bayonet insert
min [mm²]	1.5
max [mm²]	2.5
Cable connection	Self-releasing screw terminal
Cable entry	M20 on the bottom
Mechanical life	<10000000
Mechanical operation	3600
min [°C]	-40
max [°C]	+70
Terminals	IP20
Body housing	IP65
Pollution degree	3
ETIM 8.0	EC000030 - End switch
HS Code	85365080
Housing Material	Plastic
Connection	M20 cable entry
