Why Choose the Lovato Electric KBL1L12 Limit Switch?

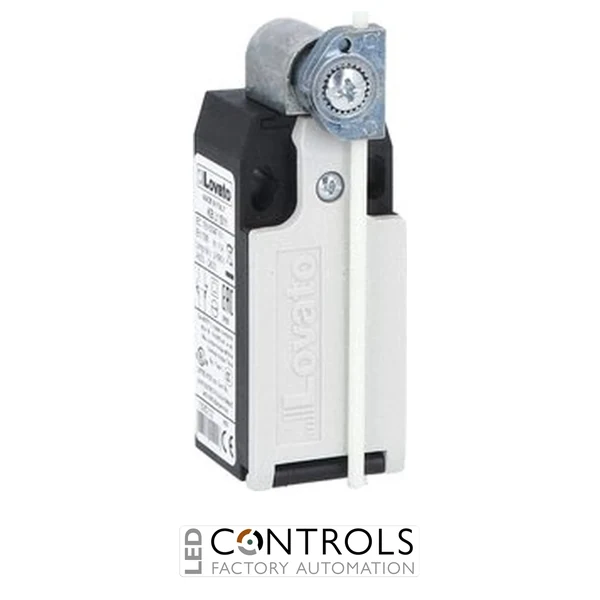

The Lovato Electric KBL1L12 is a K series industrial limit switch with adjustable rod lever designed for position detection and machine control applications. Its polymer thermoplastic housing and aluminium-zinc alloy adjustable rod provide a durable electromechanical switching solution for machinery and industrial automation systems requiring flexible mechanical actuation.
The KBL1L12 incorporates 1 normally open and 2 normally closed (1NO+2NC) slow-action contacts and has a conventional thermal current rating of 10 A. The switch uses a direct mechanical operating principle and provides positive opening of the normally closed contacts for dependable position monitoring.
With dimensions according to EN 50047, a bottom M20 cable entry and an IP65 protection rating, the KBL1L12 is designed for industrial machinery installations. The adjustable rod lever enables the actuator position to be configured to suit different machine movements and operating geometries.
Key Advantages
- Industrial K series limit switch with adjustable rod lever.
- 1NO+2NC slow-action contacts for machine position detection.
- Positive opening of the normally closed contacts.
- Adjustable rod lever provides flexibility for different machine actuation points.
- Durable polymer thermoplastic housing.
- 10 A conventional thermal current rating.
- IP65 protection for industrial environments.
Key Features
- Lovato Electric K series limit switch.
- Adjustable rod lever actuator.
- Aluminium-zinc alloy rod.
- 1NO+2NC slow-action contact configuration.
- Positive opening action.
- 10 A thermal current Ith.
- M20 bottom cable entry.
- Dimensions according to EN 50047.
- IP65 protection rating.
- Direct mechanical operating principle.
Reliable Position Detection for Industrial Machinery
Industrial limit switches provide electromechanical position detection by changing contact state when their actuator is physically operated by a moving machine component. This allows machinery control systems to detect travel limits, component positions and mechanical movements using a direct switching method.
The Lovato Electric KBL1L12 combines an adjustable rod lever with one normally open and two normally closed slow-action contacts. Its adjustable actuator provides flexibility when matching the switch to machine movement, while its thermoplastic construction and IP65 protection make it suitable for professional machine-building and industrial automation applications.
Typical Applications
- Industrial machinery position detection.
- Machine travel and end-position monitoring.
- Factory automation systems.
- Conveyors and material handling equipment.
- Production and processing machinery.
- Applications requiring an adjustable mechanical actuation point.
