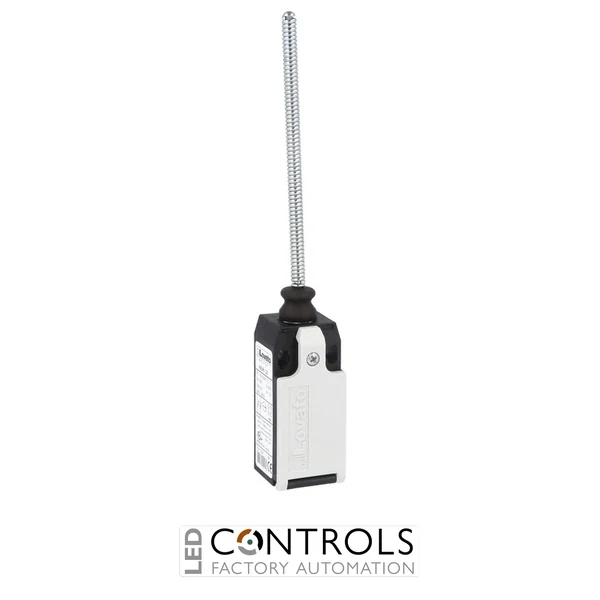

KBM1S11 - WOBBLE STICK OMND 1NO+1NC SNAP ACTION

KBM1S11 – WOBBLE STICK OMND 1NO+1NC SNAP ACTION

Lovato Electric KBM1S11 electrical installation component for professional commercial and industrial assemblies, suitable for maintenance, replacement and panel building applications.

SKU: KBM1S11MPN: KBM1S11
Price
List Price £43.41 ex VAT
Your Price (ex VAT)
£43.41
Manufacturer Lead Time Please contact us for a delivery time before you order
Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Sign up for a trade account Quick & easy setup
SUBTOTAL (EX VAT) £43.41
Trade pricing is personalised to your account

Manufacturer Lead Time

£43.41

Lovato KBM1S11 Wobble Stick Omnidirectional Limit Switch

Lovato KBM1S11 Wobble Stick Omnidirectional Limit Switch

The Lovato Electric KBM1S11 is a K series wobble stick omnidirectional limit switch designed for reliable mechanical position sensing in industrial automation and control applications. Featuring a flexible rod actuator, polymer thermoplastic housing, and 1NO+1NC snap action contacts, this compact limit switch provides dependable operation where multi-directional actuation and long service life are required.

Product Overview

The Lovato KBM1S11 combines a flexible wobble stick actuator with a robust thermoplastic body to provide reliable switching performance in industrial environments. The omnidirectional design allows activation from multiple directions, making it suitable for machinery monitoring, automation equipment, conveyor systems, and general industrial control installations. The switch includes a bottom M20 cable entry and complies with EN 50047 dimensional standards.

Key Features

  • Manufacturer: Lovato Electric
  • Model: KBM1S11
  • K series omnidirectional wobble stick limit switch
  • Flexible rod actuator
  • 1NO + 1NC snap action contacts
  • Polymer thermoplastic housing
  • IP65 protection rating
  • M20 bottom cable entry
  • EN 50047 compliant dimensions
  • Suitable for industrial automation and machinery applications

Applications

  • Industrial automation systems
  • Machine position monitoring
  • Material handling equipment
  • Conveyor systems
  • Manufacturing machinery
  • Control and monitoring installations

Why Choose the Lovato KBM1S11?

The Lovato KBM1S11 provides a flexible and dependable switching solution for industrial applications requiring accurate mechanical detection. Its omnidirectional flexible rod actuator allows easy activation from various angles, while the 1NO+1NC snap action contact arrangement provides versatile control options. With IP65 protection and durable thermoplastic construction, it is designed for reliable operation in demanding environments.

Technical Specifications

Weight [g] 100
Qty. per package 1
Multiple qty. of packs per order 1
Package dimensions [mm] 216X041X044
Volume [cm³] 389.664
Bar code [EAN13] 8013975115107
Product designation Wobble stick, omnidirectional
Product type designation KBM
Housing Polymer thermoplastic
Rod Flexible
Type of contact 1NO+1NC Snap action
Thermal current Ith 10
IEC/EN 60947-5-1 designation A600 Q600
Rated insulation voltage Ui [V] 690
Rated impulse withstand voltage Uimp 6
Insulation class II
Short-circuit protection with fuse 10 gG/SC QUICK FUSE
min 16
max 14
IEC Conventional free air thermal current Ith 10
Resistance per pole (average value) <10
Operating head fixing Locking bayonet insert
min [mm²] 1.5
max [mm²] 2.5
Cable connection Self-releasing screw terminal
Cable entry M20 on the bottom
Mechanical life <10000000
Mechanical operation 3600
min [°C] -40
max [°C] +70
Terminals IP20
Body housing IP65
Pollution degree 3
ETIM 8.0 EC000030 - End switch
HS Code 85365080
Housing Material Plastic
Connection M20 cable entry

Frequently Asked Questions

What type of switch is the Lovato KBM1S11?

The Lovato KBM1S11 is an omnidirectional wobble stick limit switch from the Lovato K series, designed for industrial position detection applications.

What contacts does the Lovato KBM1S11 have?

The KBM1S11 features 1 normally open (NO) and 1 normally closed (NC) snap action contacts.

What actuator does the KBM1S11 use?

The KBM1S11 uses a flexible rod wobble stick actuator that enables switching from multiple directions.

What is the protection rating of the Lovato KBM1S11?

The Lovato KBM1S11 has an IP65 protection rating, providing protection against dust ingress and water jets suitable for industrial environments.
