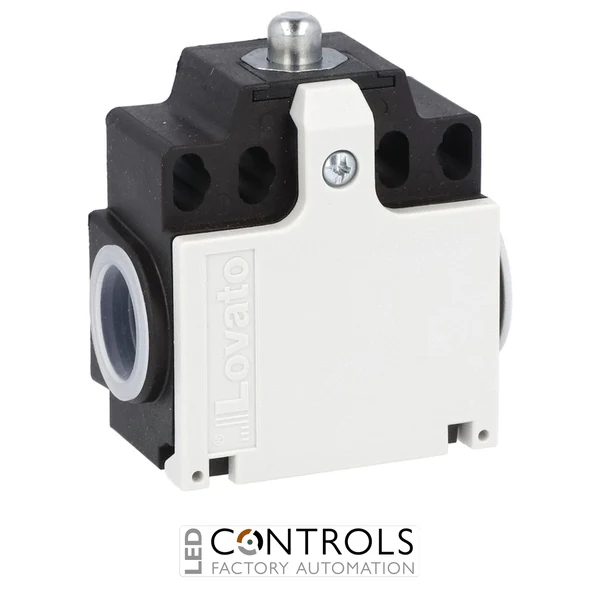

KCA1L11 – TOP PLUNGER 2 ENTRIES PLAST. L/S 1NO+1NC

Q: What type of actuator does the Lovato KCA1L11 use?

The Lovato KCA1L11 uses a top push rod plunger actuator with an aluminium-zinc alloy metal plunger.

Q: What contacts does the Lovato KCA1L11 have?

The KCA1L11 features one normally open and one normally closed slow-action contact configuration.

Q: What is the protection rating of the Lovato KCA1L11?

The Lovato KCA1L11 has an IP65 protection rating, suitable for industrial environments.

Lovato Electric KCA1L11 electrical installation component for professional commercial and industrial assemblies, suitable for maintenance, replacement and panel building applications.

SKU: KCA1L11MPN: KCA1L11

List Price £34.60 ex VAT

Your Price (ex VAT)

£34.60

Manufacturer Lead Time Please contact us for a delivery time before you order

Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Quantity:

SUBTOTAL (EX VAT) £34.60

Trade pricing is personalised to your account

Manufacturer Lead Time

£34.60

Lovato KCA1L11 Limit Switch - Top Push Rod Plunger, 1NO+1NC Slow Action Contacts

The Lovato KCA1L11 is a K Series industrial limit switch featuring a top push rod plunger actuator, polymer thermoplastic housing, aluminium-zinc alloy metal plunger, and 1NO+1NC slow-action contacts. Designed for dependable position sensing and machine control applications, this compact switch delivers reliable switching performance in industrial automation environments.

Product Overview

Manufactured by Lovato Electric, the KCA1L11 is part of the K Series range of metal and plastic limit switches. The EN 50047 compatible design includes a top push rod plunger mechanism, two side M20 cable entries, durable thermoplastic body construction, and 1NO+1NC slow-action contacts for reliable industrial switching applications.

Key Features

Manufacturer: Lovato Electric
Model: KCA1L11
Series: K Series limit switches
Top push rod plunger actuator
Aluminium-zinc alloy metal plunger
1NO + 1NC slow-action contacts
Polymer thermoplastic housing
M20 side cable entries
IP65 protection rating
EN 50047 compatible dimensions
Suitable for industrial automation and machine control applications

Applications

The Lovato KCA1L11 is suitable for a variety of industrial switching and position monitoring applications, including:

Machine position sensing
Industrial automation equipment
Mechanical limit detection
Production line monitoring
Machine control systems
Industrial safety-related switching applications

Why Choose Lovato KCA1L11?

The Lovato KCA1L11 combines a compact industrial design with a durable thermoplastic enclosure, robust metal plunger actuator, and reliable 1NO+1NC slow-action contacts. Its IP65 protection rating and proven K Series construction make it a dependable solution for industrial position detection and automation applications.

Technical Specifications

Weight [g]	80
Qty. per package	1
Multiple qty. of packs per order	1
Package dimensions [mm]	060X045X070
Volume [cm³]	189
Bar code [EAN13]	8013975126646
Product designation	Top push rod plunger
Product type designation	KCA
Housing	Polymer thermoplastic
Rod	Aluminium-zinc alloy
Type of contact	1NO+1NC Slow action
Thermal current Ith	10
IEC/EN 60947-5-1 designation	A600 Q600
Rated insulation voltage Ui [V]	690
Rated impulse withstand voltage Uimp	6
Insulation class	II
Short-circuit protection with fuse	10 gG/SC QUICK FUSE
min	16
max	14
IEC Conventional free air thermal current Ith	10
Resistance per pole (average value)	<10
Operating head fixing	Locking bayonet insert
min [mm²]	1.5
max [mm²]	2.5
Cable connection	Self-releasing screw terminal
Cable entry	M20 on the sides
Mechanical life	<10000000
Mechanical operation	3600
min [°C]	-40
max [°C]	+70
Terminals	IP20
Body housing	IP65
Pollution degree	3
ETIM 8.0	EC000030 - End switch
HS Code	85365080
Housing Material	Plastic
Connection	M20 cable entry

Frequently Asked Questions

What type of actuator does the Lovato KCA1L11 use?

The Lovato KCA1L11 uses a top push rod plunger actuator with an aluminium-zinc alloy metal plunger.

What contacts does the Lovato KCA1L11 have?

The KCA1L11 features one normally open and one normally closed slow-action contact configuration.

What is the protection rating of the Lovato KCA1L11?

The Lovato KCA1L11 has an IP65 protection rating, suitable for industrial environments.

Weight [g]	80
Qty. per package	1
Multiple qty. of packs per order	1
Package dimensions [mm]	060X045X070
Volume [cm³]	189
Bar code [EAN13]	8013975126646
Product designation	Top push rod plunger
Product type designation	KCA
Housing	Polymer thermoplastic
Rod	Aluminium-zinc alloy
Type of contact	1NO+1NC Slow action
Thermal current Ith	10
IEC/EN 60947-5-1 designation	A600 Q600
Rated insulation voltage Ui [V]	690
Rated impulse withstand voltage Uimp	6
Insulation class	II
Short-circuit protection with fuse	10 gG/SC QUICK FUSE
min	16
max	14
IEC Conventional free air thermal current Ith	10
Resistance per pole (average value)	<10
Operating head fixing	Locking bayonet insert
min [mm²]	1.5
max [mm²]	2.5
Cable connection	Self-releasing screw terminal
Cable entry	M20 on the sides
Mechanical life	<10000000
Mechanical operation	3600
min [°C]	-40
max [°C]	+70
Terminals	IP20
Body housing	IP65
Pollution degree	3
ETIM 8.0	EC000030 - End switch
HS Code	85365080
Housing Material	Plastic
Connection	M20 cable entry
