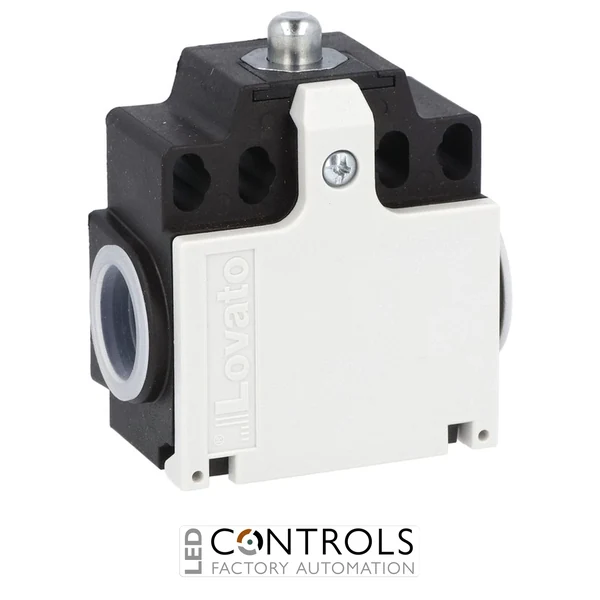

KCA1S02 - TOP PLUNGER 2 ENTRIES PLASTIC L/S 2NC

KCA1S02 – TOP PLUNGER 2 ENTRIES PLASTIC L/S 2NC

Lovato Electric KCA1S02 electrical installation component for professional commercial and industrial assemblies, suitable for maintenance, replacement and panel building applications.

SKU: KCA1S02MPN: KCA1S02
Price
List Price £46.56 ex VAT
Your Price (ex VAT)
£46.56
Manufacturer Lead Time Please contact us for a delivery time before you order
Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Sign up for a trade account Quick & easy setup
SUBTOTAL (EX VAT) £46.56
Trade pricing is personalised to your account

Manufacturer Lead Time

£46.56

Lovato KCA1S02 Limit Switch - Top Push Rod Plunger, 2NC Snap Action Contacts

The Lovato KCA1S02 is a K Series industrial limit switch featuring a top push rod plunger actuator, polymer thermoplastic housing, aluminium-zinc alloy metal rod, and 2NC snap-action contacts. Designed for reliable position detection and machine control applications, this compact switch provides fast and dependable switching performance in industrial automation environments.

Product Overview

Manufactured by Lovato Electric, the KCA1S02 is part of the K Series metal and plastic limit switch range. The EN 50047 compatible design includes a top push rod plunger mechanism, two M20 side cable entries, durable thermoplastic body construction, and 2NC snap-action contacts for reliable industrial switching applications.

Key Features

  • Manufacturer: Lovato Electric
  • Model: KCA1S02
  • Series: K Series limit switches
  • Top push rod plunger actuator
  • Aluminium-zinc alloy metal rod
  • 2NC snap-action contacts
  • Polymer thermoplastic housing
  • M20 side cable entries
  • IP65 body protection rating
  • EN 50047 compatible dimensions
  • Suitable for industrial automation and machine control applications

Applications

The Lovato KCA1S02 is suitable for a variety of industrial switching and position monitoring applications, including:

  • Machine position sensing
  • Industrial automation equipment
  • Mechanical limit detection
  • Production line monitoring
  • Machine control systems
  • Industrial switching applications

Why Choose Lovato KCA1S02?

The Lovato KCA1S02 combines a compact industrial design with a durable thermoplastic enclosure, robust metal plunger actuator, and reliable snap-action contacts. Its IP65 protection rating and proven K Series construction make it a dependable solution for industrial position detection and automation applications.

Technical Specifications

Weight [g] 80
Qty. per package 1
Multiple qty. of packs per order 1
Package dimensions [mm] 060X045X070
Volume [cm³] 189
Bar code [EAN13] 8013975126622
Product designation Top push rod plunger
Product type designation KCA
Housing Polymer thermoplastic
Rod Aluminium-zinc alloy
Type of contact 2NC Snap action
Thermal current Ith 10
IEC/EN 60947-5-1 designation A600 Q600
Rated insulation voltage Ui [V] 690
Rated impulse withstand voltage Uimp 6
Insulation class II
Short-circuit protection with fuse 10 gG/SC QUICK FUSE
min 16
max 14
IEC Conventional free air thermal current Ith 10
Resistance per pole (average value) <10
Operating head fixing Locking bayonet insert
min [mm²] 1.5
max [mm²] 2.5
Cable connection Self-releasing screw terminal
Cable entry M20 on the sides
Mechanical life <10000000
Mechanical operation 3600
min [°C] -40
max [°C] +70
Terminals IP20
Body housing IP65
Pollution degree 3
ETIM 8.0 EC000030 - End switch
HS Code 85365080
Housing Material Plastic
Connection M20 cable entry

Frequently Asked Questions

What type of actuator does the Lovato KCA1S02 use?

The Lovato KCA1S02 uses a top push rod plunger actuator with an aluminium-zinc alloy metal rod.

What contacts does the Lovato KCA1S02 have?

The KCA1S02 features two normally closed (2NC) snap-action contacts.

What is the protection rating of the Lovato KCA1S02?

The Lovato KCA1S02 has an IP65 body protection rating, suitable for industrial environments.
