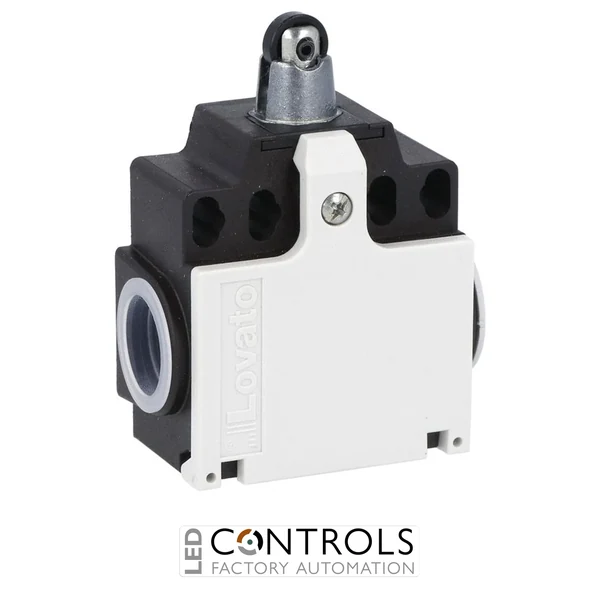

KCB1L20 - TOP ROLLER PUSH 2 ENTRIES LIMIT SW. 2NO

KCB1L20 – TOP ROLLER PUSH 2 ENTRIES LIMIT SW. 2NO

Lovato Electric KCB1L20 electrical installation component for professional commercial and industrial assemblies, suitable for maintenance, replacement and panel building applications.

SKU: KCB1L20MPN: KCB1L20
Price
List Price £41.50 ex VAT
Your Price (ex VAT)
£41.50
Manufacturer Lead Time Please contact us for a delivery time before you order
Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Sign up for a trade account Quick & easy setup
SUBTOTAL (EX VAT) £41.50
Trade pricing is personalised to your account

Manufacturer Lead Time

£41.50

Lovato KCB1L20 Limit Switch – K Series Top Roller Push Plunger 2NO

The Lovato KCB1L20 is a K Series industrial limit switch featuring a top roller push plunger actuator, polymer thermoplastic housing, plastic roller, and 2NO slow action contacts. Designed for reliable mechanical position sensing in industrial automation and control systems, this compact limit switch provides durable switching performance for machinery and equipment applications.

Product Overview

The Lovato KCB1L20 limit switch is designed for applications requiring dependable mechanical detection and switching. It features dimensions compatible with EN 50047, two side cable entry design, M20 cable entry, plastic construction, and IP65 protection for industrial environments.

Key Features

  • Brand: LOVATO Electric
  • Model: KCB1L20
  • K Series industrial limit switch
  • Top roller push plunger actuator
  • Contact configuration: 2NO slow action
  • Polymer thermoplastic housing
  • Plastic roller actuator
  • Two side cable entry design
  • EN 50047 compatible dimensions
  • M20 cable entry
  • IP65 body protection rating
  • Rated thermal current Ith: 10A
  • Rated insulation voltage Ui: 690V

Applications

The Lovato KCB1L20 is suitable for industrial automation equipment, conveyor systems, machine tools, packaging machinery, production lines, and mechanical position monitoring applications requiring reliable limit switching.

Why Choose Lovato KCB1L20?

  • Reliable mechanical switching for industrial environments
  • Compact K Series design compatible with EN 50047
  • Durable thermoplastic construction
  • IP65 protection for harsh industrial conditions
  • Suitable for automation and machine control systems
  • Trusted LOVATO Electric performance

Technical Specifications

Weight [g] 88
Qty. per package 1
Multiple qty. of packs per order 1
Package dimensions [mm] 065X046X090
Volume [cm³] 269.1
Bar code [EAN13] 8013975126721
Product designation Top roller push plunger
Product type designation KCB
Housing Polymer thermoplastic
Roller Plastic
Type of contact 2NO Slow action
Thermal current Ith 10
IEC/EN 60947-5-1 designation A600 Q600
Rated insulation voltage Ui [V] 690
Rated impulse withstand voltage Uimp 6
Insulation class II
Short-circuit protection with fuse 10 gG/SC QUICK FUSE
min 16
max 14
IEC Conventional free air thermal current Ith 10
Resistance per pole (average value) <10
Operating head fixing Locking bayonet insert
min [mm²] 1.5
max [mm²] 2.5
Cable connection Self-releasing screw terminal
Cable entry M20 on the bottom
Mechanical life <10000000
Mechanical operation 3600
min [°C] -40
max [°C] +70
Terminals IP20
Body housing IP65
Pollution degree 3
ETIM 8.0 EC000030 - End switch
HS Code 85365080
Housing Material Plastic
Connection M20 cable entry

Frequently Asked Questions

What type of actuator does the Lovato KCB1L20 use?

The Lovato KCB1L20 uses a top roller push plunger actuator with a plastic roller for mechanical position detection.

What contact arrangement does the Lovato KCB1L20 have?

The Lovato KCB1L20 features two normally open (2NO) slow action contacts.

Is the Lovato KCB1L20 suitable for industrial automation?

Yes. The KCB1L20 is designed for industrial automation, machinery control, and position sensing applications.
