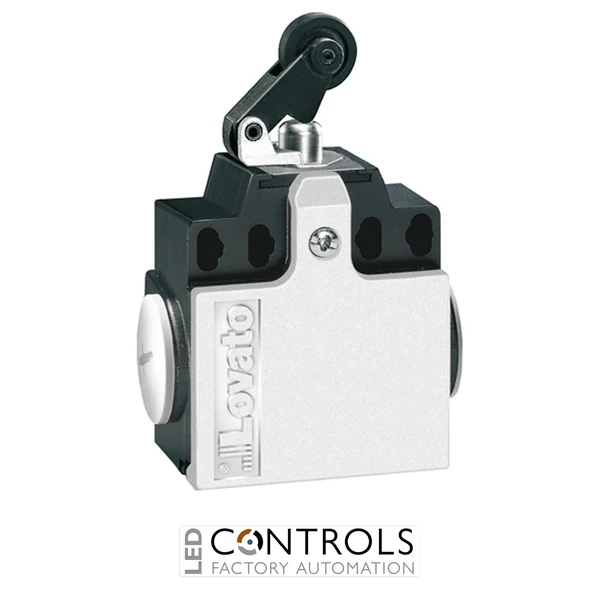

KCC1S02 – ROLLER CENTRE LEVER 2 ENTRIES L/S 2NC

Q: What type of actuator does the Lovato KCC1S02 use?

The Lovato KCC1S02 uses a roller centre push lever actuator with a plastic roller for mechanical position detection.

Q: What contact arrangement does the Lovato KCC1S02 have?

The Lovato KCC1S02 features two normally closed (2NC) snap action contacts.

Q: Is the Lovato KCC1S02 suitable for industrial automation?

Yes. The KCC1S02 is designed for industrial automation, machinery control, and mechanical sensing applications.

Lovato Electric KCC1S02 electrical installation component for professional commercial and industrial assemblies, suitable for maintenance, replacement and panel building applications.

SKU: KCC1S02MPN: KCC1S02

List Price £51.93 ex VAT

Your Price (ex VAT)

£51.93

Manufacturer Lead Time Please contact us for a delivery time before you order

Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Quantity:

SUBTOTAL (EX VAT) £51.93

Trade pricing is personalised to your account

Manufacturer Lead Time

£51.93

Lovato KCC1S02 Limit Switch – K Series Roller Centre Push Lever 2NC Snap Action Plastic Roller

The Lovato KCC1S02 is a K Series industrial limit switch featuring a roller centre push lever actuator, polymer thermoplastic housing, plastic roller, and 2NC snap action contacts. Designed for reliable mechanical position sensing in industrial automation and machine control applications, this compact switch provides fast switching response, durable construction, and dependable operation in demanding industrial environments.

Product Overview

The Lovato KCC1S02 limit switch is engineered for machinery and automation systems requiring accurate mechanical detection and reliable switching. It features a roller centre push lever actuator, two side cable entry design, dimensions compatible with EN 50047, plastic body construction, M20 cable entry, and 2NC snap action contacts for quick and reliable operation.

Key Features

Brand: LOVATO Electric
Model: KCC1S02
K Series industrial limit switch
Roller centre push lever actuator
Contact configuration: 2NC snap action
Plastic roller actuator
Polymer thermoplastic housing
Two side cable entry design
EN 50047 compatible dimensions
M20 side cable entry
IP65 protection rating
Rated current: 10A
Operating temperature range: -25°C to +70°C

Applications

The Lovato KCC1S02 is suitable for industrial automation equipment, conveyor systems, machine tools, packaging machinery, production lines, and mechanical position monitoring applications where reliable and fast limit switching is required.

Why Choose Lovato KCC1S02?

Fast and reliable snap action switching
Durable plastic roller design
Compact K Series construction
EN 50047 compatible mounting dimensions
IP65 protection against dust and water ingress
Suitable for industrial automation and OEM machinery
Trusted LOVATO Electric industrial quality

Technical Specifications

Weight [g]	88
Qty. per package	1
Multiple qty. of packs per order	1
Package dimensions [mm]	065X046X090
Volume [cm³]	269.1
Bar code [EAN13]	8013975126806
Product designation	Roller centre push lever
Product type designation	KCC
Housing	Polymer thermoplastic
Roller	Plastic
Type of contact	2NC Snap action
Thermal current Ith	10
IEC/EN 60947-5-1 designation	A600 Q600
Rated insulation voltage Ui [V]	690
Rated impulse withstand voltage Uimp	6
Insulation class	II
Short-circuit protection with fuse	10 gG/SC QUICK FUSE
min	16
max	14
IEC Conventional free air thermal current Ith	10
Resistance per pole (average value)	<10
Operating head fixing	Locking bayonet insert
min [mm²]	1.5
max [mm²]	2.5
Cable connection	Self-releasing screw terminal
Cable entry	M20 on the sides
Mechanical life	<10000000
Mechanical operation	3600
min [°C]	-40
max [°C]	+70
Terminals	IP20
Body housing	IP65
Pollution degree	3
ETIM 8.0	EC000030 - End switch
HS Code	85365080
Housing Material	Plastic
Connection	M20 cable entry

Frequently Asked Questions

What type of actuator does the Lovato KCC1S02 use?

The Lovato KCC1S02 uses a roller centre push lever actuator with a plastic roller for mechanical position detection.

What contact arrangement does the Lovato KCC1S02 have?

The Lovato KCC1S02 features two normally closed (2NC) snap action contacts.

Is the Lovato KCC1S02 suitable for industrial automation?

Yes. The KCC1S02 is designed for industrial automation, machinery control, and mechanical sensing applications.

Weight [g]	88
Qty. per package	1
Multiple qty. of packs per order	1
Package dimensions [mm]	065X046X090
Volume [cm³]	269.1
Bar code [EAN13]	8013975126806
Product designation	Roller centre push lever
Product type designation	KCC
Housing	Polymer thermoplastic
Roller	Plastic
Type of contact	2NC Snap action
Thermal current Ith	10
IEC/EN 60947-5-1 designation	A600 Q600
Rated insulation voltage Ui [V]	690
Rated impulse withstand voltage Uimp	6
Insulation class	II
Short-circuit protection with fuse	10 gG/SC QUICK FUSE
min	16
max	14
IEC Conventional free air thermal current Ith	10
Resistance per pole (average value)	<10
Operating head fixing	Locking bayonet insert
min [mm²]	1.5
max [mm²]	2.5
Cable connection	Self-releasing screw terminal
Cable entry	M20 on the sides
Mechanical life	<10000000
Mechanical operation	3600
min [°C]	-40
max [°C]	+70
Terminals	IP20
Body housing	IP65
Pollution degree	3
ETIM 8.0	EC000030 - End switch
HS Code	85365080
Housing Material	Plastic
Connection	M20 cable entry
