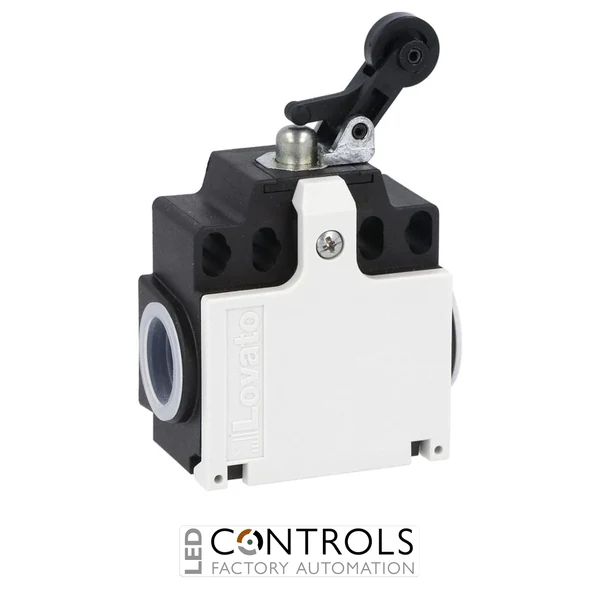

KCD1L11 – ROLLER SIDE PUSH LEVER 2ENTR L/S 1NO+1NC

Q: What type of actuator does the Lovato KCD1L11 use?

The Lovato KCD1L11 uses a roller side push lever actuator with a metal roller for reliable mechanical switching.

Q: What contact configuration does the Lovato KCD1L11 have?

The KCD1L11 features one normally open and one normally closed slow action contact configuration.

Q: What protection rating does the Lovato KCD1L11 provide?

The Lovato KCD1L11 provides IP65 protection for the switch housing and IP20 protection for the terminals.

Lovato Electric KCD1L11 electrical installation component for professional commercial and industrial assemblies, suitable for maintenance, replacement and panel building applications.

SKU: KCD1L11MPN: KCD1L11

List Price £40.01 ex VAT

Your Price (ex VAT)

£40.01

Manufacturer Lead Time Please contact us for a delivery time before you order

Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Quantity:

SUBTOTAL (EX VAT) £40.01

Trade pricing is personalised to your account

Manufacturer Lead Time

£40.01

Lovato KCD1L11 Limit Switch - K Series Roller Side Push Lever, 1NO+1NC Slow Action

The Lovato KCD1L11 is a K Series industrial limit switch designed for reliable mechanical position sensing and control in automation and machinery applications. Featuring a roller side push lever actuator, polymer thermoplastic housing, metal roller, and 1NO+1NC slow action contacts, this limit switch delivers dependable switching performance for industrial control systems, production machinery, and material handling equipment.

Built to EN 50047 compatible dimensions, the Lovato KCD1L11 provides robust construction, easy installation, and long mechanical service life. Its roller side push lever design allows accurate actuation from moving machine components, making it suitable for a wide range of industrial automation applications.

Lovato KCD1L11 Features

K Series industrial limit switch from Lovato Electric
Roller side push lever actuator
1 normally open + 1 normally closed (1NO+1NC) slow action contacts
Metal roller actuator for reliable mechanical operation
Polymer thermoplastic housing
Two side M20 cable entries
Dimensions compatible with EN 50047 standards
10A thermal current rating
IP65 protection rating for housing
IP20 terminal protection
Suitable for industrial automation, machinery, and control systems

Applications

The Lovato KCD1L11 limit switch is suitable for industrial automation applications including machine tools, conveyor systems, packaging machinery, production lines, material handling equipment, and electrical control panels requiring accurate mechanical position monitoring.

Why Choose Lovato KCD1L11?

Lovato Electric K Series limit switches are engineered for durability, dependable switching, and simple installation. The KCD1L11 combines a rugged metal roller mechanism with versatile 1NO+1NC slow action contacts, providing a practical solution for industrial position detection and automation control.

Technical Specifications

Weight [g]	94
Qty. per package	1
Multiple qty. of packs per order	1
Package dimensions [mm]	065X046X090
Volume [cm³]	269.1
Bar code [EAN13]	8013975126943
Product designation	Roller side push lever
Product type designation	KCD
Housing	Polymer thermoplastic
Roller	Plastic
Type of contact	2NC Slow action
Thermal current Ith	10
IEC/EN 60947-5-1 designation	A600 Q600
Rated insulation voltage Ui [V]	690
Rated impulse withstand voltage Uimp	6
Insulation class	II
Short-circuit protection with fuse	10 gG/SC QUICK FUSE
min	16
max	14
IEC Conventional free air thermal current Ith	10
Resistance per pole (average value)	<10
Operating head fixing	Locking bayonet insert
min [mm²]	1.5
max [mm²]	2.5
Cable connection	Self-releasing screw terminal
Cable entry	M20 on the sides
Mechanical life	<10000000
Mechanical operation	3600
min [°C]	-40
max [°C]	+70
Terminals	IP20
Body housing	IP65
Pollution degree	3
ETIM 8.0	EC000030 - End switch
HS Code	85365080
Housing Material	Plastic
Connection	M20 cable entry

Frequently Asked Questions

What type of actuator does the Lovato KCD1L11 use?

The Lovato KCD1L11 uses a roller side push lever actuator with a metal roller for reliable mechanical switching.

What contact configuration does the Lovato KCD1L11 have?

The KCD1L11 features one normally open and one normally closed slow action contact configuration.

What protection rating does the Lovato KCD1L11 provide?

The Lovato KCD1L11 provides IP65 protection for the switch housing and IP20 protection for the terminals.

Weight [g]	94
Qty. per package	1
Multiple qty. of packs per order	1
Package dimensions [mm]	065X046X090
Volume [cm³]	269.1
Bar code [EAN13]	8013975126943
Product designation	Roller side push lever
Product type designation	KCD
Housing	Polymer thermoplastic
Roller	Plastic
Type of contact	2NC Slow action
Thermal current Ith	10
IEC/EN 60947-5-1 designation	A600 Q600
Rated insulation voltage Ui [V]	690
Rated impulse withstand voltage Uimp	6
Insulation class	II
Short-circuit protection with fuse	10 gG/SC QUICK FUSE
min	16
max	14
IEC Conventional free air thermal current Ith	10
Resistance per pole (average value)	<10
Operating head fixing	Locking bayonet insert
min [mm²]	1.5
max [mm²]	2.5
Cable connection	Self-releasing screw terminal
Cable entry	M20 on the sides
Mechanical life	<10000000
Mechanical operation	3600
min [°C]	-40
max [°C]	+70
Terminals	IP20
Body housing	IP65
Pollution degree	3
ETIM 8.0	EC000030 - End switch
HS Code	85365080
Housing Material	Plastic
Connection	M20 cable entry
