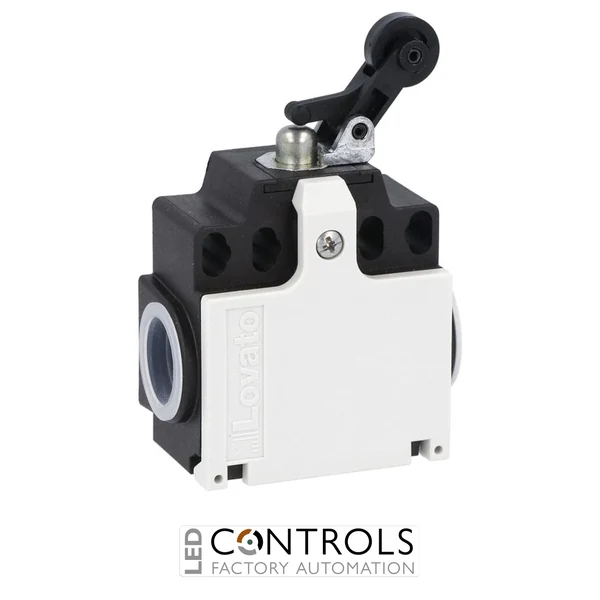

KCD1L20 - ROLLER SIDE PUSH LEVER 2 ENTRIES L/S 2NO

KCD1L20 – ROLLER SIDE PUSH LEVER 2 ENTRIES L/S 2NO

Lovato Electric KCD1L20 electrical installation component for professional commercial and industrial assemblies, suitable for maintenance, replacement and panel building applications.

SKU: KCD1L20MPN: KCD1L20
Price
List Price £42.27 ex VAT
Your Price (ex VAT)
£42.27
Manufacturer Lead Time Please contact us for a delivery time before you order
Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Sign up for a trade account Quick & easy setup
SUBTOTAL (EX VAT) £42.27
Trade pricing is personalised to your account

Manufacturer Lead Time

£42.27

Lovato KCD1L20 Limit Switch - K Series Roller Side Push Lever, 2NO Slow Action

The Lovato KCD1L20 is a K Series industrial limit switch designed for reliable mechanical position detection and control in automation and machinery applications. Featuring a roller side push lever actuator, polymer thermoplastic housing, plastic roller, and 2 normally open (2NO) slow action contacts, this limit switch provides dependable switching performance for industrial control systems, production machinery, and material handling equipment.

Designed with two side M20 cable entries and dimensions compatible with EN 50047 standards, the Lovato KCD1L20 offers easy installation, robust construction, and long mechanical service life. Its roller side push lever mechanism allows accurate actuation from moving machine components, making it suitable for a wide range of industrial automation applications.

Lovato KCD1L20 Features

  • K Series industrial limit switch from Lovato Electric
  • Roller side push lever actuator design
  • 2 normally open (2NO) slow action contacts
  • Plastic roller actuator for smooth mechanical operation
  • Polymer thermoplastic housing construction
  • Two side M20 cable entries
  • Dimensions compatible with EN 50047 standards
  • 10A thermal current rating
  • 690V rated insulation voltage
  • IP65 housing protection rating
  • Suitable for industrial automation and machine control applications

Applications

The Lovato KCD1L20 limit switch is suitable for industrial automation applications including machine tools, conveyor systems, packaging machinery, production lines, material handling equipment, and electrical control panels requiring accurate mechanical position monitoring.

Why Choose Lovato KCD1L20?

Lovato Electric K Series limit switches are engineered for durable industrial performance, accurate switching action, and straightforward installation. The KCD1L20 combines a compact design with a roller side push lever mechanism and dual normally open contacts, making it a practical solution for industrial position sensing and automation control.

Technical Specifications

Weight [g] 94
Qty. per package 1
Multiple qty. of packs per order 1
Package dimensions [mm] 065X046X090
Volume [cm³] 269.1
Bar code [EAN13] 8013975126967
Product designation Roller side push lever
Product type designation KCD
Housing Polymer thermoplastic
Roller Metal
Type of contact 2NC Slow action
Thermal current Ith 10
IEC/EN 60947-5-1 designation A600 Q600
Rated insulation voltage Ui [V] 690
Rated impulse withstand voltage Uimp 6
Insulation class II
Short-circuit protection with fuse 10 gG/SC QUICK FUSE
min 16
max 14
IEC Conventional free air thermal current Ith 10
Resistance per pole (average value) <10
Operating head fixing Locking bayonet insert
min [mm²] 1.5
max [mm²] 2.5
Cable connection Self-releasing screw terminal
Cable entry M20 on the sides
Mechanical life <10000000
Mechanical operation 3600
min [°C] -40
max [°C] +70
Terminals IP20
Body housing IP65
Pollution degree 3
ETIM 8.0 EC000030 - End switch
HS Code 85365080
Housing Material Plastic
Connection M20 cable entry

Frequently Asked Questions

What type of actuator does the Lovato KCD1L20 use?

The Lovato KCD1L20 uses a roller side push lever actuator with a plastic roller for smooth mechanical operation.

What contact configuration does the Lovato KCD1L20 have?

The KCD1L20 features two normally open (2NO) slow action contacts.

What protection rating does the Lovato KCD1L20 provide?

The Lovato KCD1L20 provides IP65 protection for the switch housing and IP20 protection for the terminals.
