KCF1A11 – ADJ PLASTIC ROLLER LEV 2ENTR L/S 1NO+1NC

Q: What type of actuator does the Lovato KCF1A11 use?

The Lovato KCF1A11 uses an adjustable roller lever actuator designed for precise mechanical position detection.

Q: What contact configuration does the KCF1A11 have?

The Lovato KCF1A11 features one normally open and one normally closed slow action contact configuration.

Q: What is the protection rating of the Lovato KCF1A11?

The Lovato KCF1A11 has an IP65-rated body housing, providing protection against dust and water ingress in industrial environments.

Lovato Electric KCF1A11 electrical installation component for professional commercial and industrial assemblies, suitable for maintenance, replacement and panel building applications.

SKU: KCF1A11MPN: KCF1A11

List Price £43.67 ex VAT

Your Price (ex VAT)

£43.67

Manufacturer Lead Time Please contact us for a delivery time before you order

Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Quantity:

SUBTOTAL (EX VAT) £43.67

Trade pricing is personalised to your account

Manufacturer Lead Time

£43.67

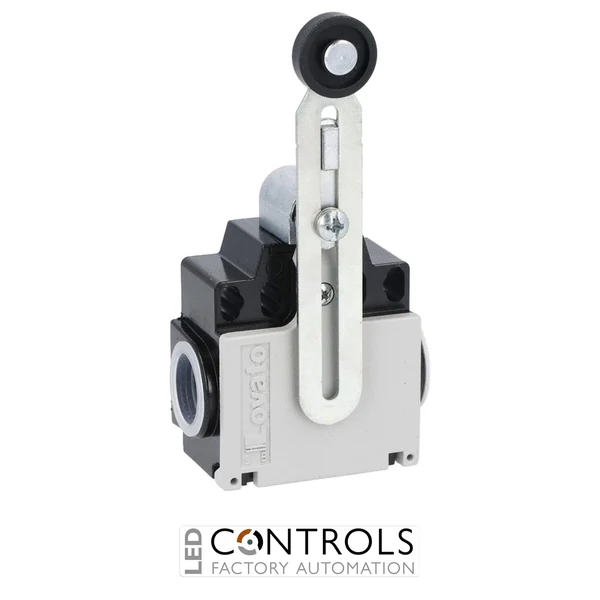

Lovato KCF1A11 Limit Switch – K Series Adjustable Roller Lever 1NO+1NC Slow Action

The Lovato KCF1A11 is a high-quality industrial limit switch from the Lovato Electric K Series, designed for reliable mechanical position detection and automation control applications. Featuring an adjustable roller lever actuator, polymer thermoplastic housing, and 1 normally open (NO) + 1 normally closed (NC) slow action contacts, this limit switch provides accurate and dependable switching performance for industrial machinery and control systems.

Designed with dimensions compatible with EN 50047 standards, the KCF1A11 includes two side M20 cable entries, an IP65-rated enclosure, and a flexible adjustable roller mechanism for precise mechanical actuation. It is suitable for demanding industrial environments requiring consistent operation and long service life.

Lovato KCF1A11 Features

Manufacturer: Lovato Electric
Product Series: K Series Limit Switch
Actuator Type: Adjustable roller lever
Contact Configuration: 1NO + 1NC
Contact Operation: Slow action
Housing Material: Polymer thermoplastic
Cable Entry: M20 side cable entries
Protection Rating: IP65 body housing
Thermal Current Ith: 10A
Rated Insulation Voltage Ui: 690V
Operating Temperature: -25°C to +70°C
Mechanical Life: Up to 10 million operations

Applications

The Lovato KCF1A11 limit switch is suitable for industrial automation systems, conveyor equipment, machine tools, packaging machinery, production lines, access monitoring systems, and mechanical position sensing applications where adjustable roller actuation is required.

Why Choose Lovato KCF1A11?

Adjustable roller lever design for flexible installation
Reliable 1NO+1NC slow action switching contacts
Compact EN 50047 compatible industrial design
IP65 protection against dust and water ingress
High mechanical durability for long operational life
Easy wiring with M20 cable entry connections

Technical Specifications

Weight [g]	124
Qty. per package	1
Multiple qty. of packs per order	1
Package dimensions [mm]	120X045X060
Volume [cm³]	324
Bar code [EAN13]	8013975127230
Product designation	Adjustable roller lever
Product type designation	KCF
Housing	Polymer thermoplastic
Roller	Plastic
Type of contact	1NO+1NC Slow action make before break
Thermal current Ith	10
IEC/EN 60947-5-1 designation	A600 Q600
Rated insulation voltage Ui [V]	690
Rated impulse withstand voltage Uimp	6
Insulation class	II
Short-circuit protection with fuse	10 gG/SC QUICK FUSE
min	16
max	14
IEC Conventional free air thermal current Ith	10
Resistance per pole (average value)	<10
Operating head fixing	Locking bayonet insert
min [mm²]	1.5
max [mm²]	2.5
Cable connection	Self-releasing screw terminal
Cable entry	M20 on the sides
Mechanical life	<10000000
Mechanical operation	3600
min [°C]	-40
max [°C]	+70
Terminals	IP20
Body housing	IP65
Pollution degree	3
ETIM 8.0	EC000030 - End switch
HS Code	85365080
Housing Material	Plastic
Connection	M20 cable entry

Frequently Asked Questions

What type of actuator does the Lovato KCF1A11 use?

The Lovato KCF1A11 uses an adjustable roller lever actuator designed for precise mechanical position detection.

What contact configuration does the KCF1A11 have?

The Lovato KCF1A11 features one normally open and one normally closed slow action contact configuration.

What is the protection rating of the Lovato KCF1A11?

The Lovato KCF1A11 has an IP65-rated body housing, providing protection against dust and water ingress in industrial environments.

Weight [g]	124
Qty. per package	1
Multiple qty. of packs per order	1
Package dimensions [mm]	120X045X060
Volume [cm³]	324
Bar code [EAN13]	8013975127230
Product designation	Adjustable roller lever
Product type designation	KCF
Housing	Polymer thermoplastic
Roller	Plastic
Type of contact	1NO+1NC Slow action make before break
Thermal current Ith	10
IEC/EN 60947-5-1 designation	A600 Q600
Rated insulation voltage Ui [V]	690
Rated impulse withstand voltage Uimp	6
Insulation class	II
Short-circuit protection with fuse	10 gG/SC QUICK FUSE
min	16
max	14
IEC Conventional free air thermal current Ith	10
Resistance per pole (average value)	<10
Operating head fixing	Locking bayonet insert
min [mm²]	1.5
max [mm²]	2.5
Cable connection	Self-releasing screw terminal
Cable entry	M20 on the sides
Mechanical life	<10000000
Mechanical operation	3600
min [°C]	-40
max [°C]	+70
Terminals	IP20
Body housing	IP65
Pollution degree	3
ETIM 8.0	EC000030 - End switch
HS Code	85365080
Housing Material	Plastic
Connection	M20 cable entry
