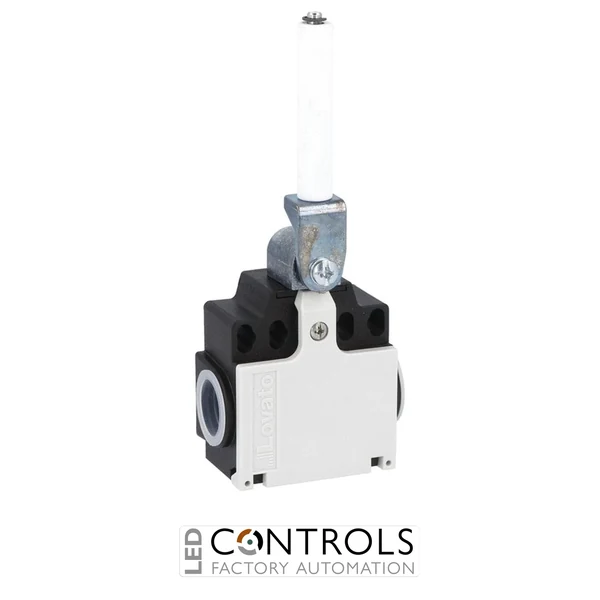

KCH1S02 - CERAMIC ROD LEVER 2 ENTRIES L/S 2NC

KCH1S02 – CERAMIC ROD LEVER 2 ENTRIES L/S 2NC

Lovato Electric KCH1S02 electrical installation component for professional commercial and industrial assemblies, suitable for maintenance, replacement and panel building applications.

SKU: KCH1S02MPN: KCH1S02
Price
List Price £73.06 ex VAT
Your Price (ex VAT)
£73.06
Manufacturer Lead Time Please contact us for a delivery time before you order
Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Sign up for a trade account Quick & easy setup
SUBTOTAL (EX VAT) £73.06
Trade pricing is personalised to your account

Manufacturer Lead Time

£73.06

Lovato KCH1S02 Limit Switch - Ceramic Rod Lever, 2NC Snap Action Contacts

The Lovato KCH1S02 is a K Series industrial limit switch designed for reliable mechanical position detection and automation control applications. Featuring a ceramic rod lever actuator, polymer thermoplastic housing, and two normally closed snap-action contacts, this limit switch provides accurate switching performance and long service life in industrial environments.

Designed with dimensions compatible with EN 50047 standards, the Lovato KCH1S02 includes two side M20 cable entries and a durable plastic body construction. Its ceramic rod actuator makes it suitable for machinery, conveyors, and automation systems requiring dependable end-position sensing.

Lovato KCH1S02 Features

  • K Series industrial limit switch
  • Ceramic rod lever actuator
  • 2NC normally closed snap-action contacts
  • Polymer thermoplastic housing
  • Two side M20 cable entries
  • EN 50047 compatible dimensions
  • IP65 protection rating
  • High mechanical durability up to 10 million operations

Applications

The Lovato KCH1S02 limit switch is ideal for industrial automation equipment, machine tools, conveyors, packaging machinery, material handling systems, and mechanical position monitoring applications where reliable switching is required.

Why Choose Lovato KCH1S02?

The Lovato KCH1S02 combines robust construction, precise mechanical operation, and reliable snap-action switching technology, making it a dependable solution for industrial control and automation applications.

Technical Specifications

Weight [g] 130
Qty. per package 1
Multiple qty. of packs per order 1
Package dimensions [mm] 150X060X036
Volume [cm³] 324
Bar code [EAN13] 8013975127469
Product designation Ceramic rod lever
Product type designation KCH
Housing Polymer thermoplastic
Rod Ceramic
Type of contact 2NC Snap action
Thermal current Ith 10
IEC/EN 60947-5-1 designation A600 Q600
Rated insulation voltage Ui [V] 690
Rated impulse withstand voltage Uimp 6
Insulation class II
Short-circuit protection with fuse 10 gG/SC QUICK FUSE
min 16
max 14
IEC Conventional free air thermal current Ith 10
Resistance per pole (average value) <10
Operating head fixing Locking bayonet insert
min [mm²] 1.5
max [mm²] 2.5
Cable connection Self-releasing screw terminal
Cable entry M20 on the sides
Mechanical life <10000000
Mechanical operation 3600
min [°C] -40
max [°C] +70
Terminals IP20
Body housing IP65
Pollution degree 3
ETIM 8.0 EC000030 - End switch
HS Code 85365080
Housing Material Plastic
Connection M20 cable entry

Frequently Asked Questions

What actuator does the Lovato KCH1S02 use?

The Lovato KCH1S02 uses a ceramic rod lever actuator designed for accurate mechanical position sensing.

How many contacts does the Lovato KCH1S02 have?

The KCH1S02 features two normally closed (2NC) snap-action contacts.

Where is the Lovato KCH1S02 commonly used?

It is commonly used in industrial automation systems, machinery control, conveyors, and equipment position detection applications.
