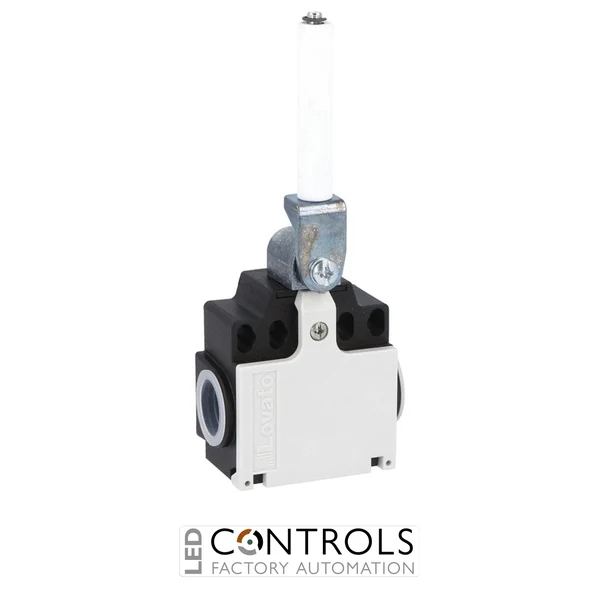

KCH1S11 - CERAMIC ROD LEVER 2 ENTRIES L/S 1NO+1NC

KCH1S11 – CERAMIC ROD LEVER 2 ENTRIES L/S 1NO+1NC

Lovato Electric KCH1S11 electrical installation component for professional commercial and industrial assemblies, suitable for maintenance, replacement and panel building applications.

SKU: KCH1S11MPN: KCH1S11
Price
List Price £63.35 ex VAT
Your Price (ex VAT)
£63.35
Manufacturer Lead Time Please contact us for a delivery time before you order
Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Sign up for a trade account Quick & easy setup
SUBTOTAL (EX VAT) £63.35
Trade pricing is personalised to your account

Manufacturer Lead Time

£63.35

Lovato KCH1S11 Limit Switch - Ceramic Rod Lever, 1NO+1NC Snap Action Contacts

The Lovato KCH1S11 is a K Series industrial limit switch designed for accurate position sensing and reliable machine control applications. Featuring a ceramic rod lever actuator, polymer thermoplastic housing, and 1NO+1NC snap-action contacts, this limit switch provides dependable switching performance for industrial automation environments.

The KCH1S11 is designed with dimensions compatible with EN 50047 standards and includes two side M20 cable entries for flexible installation. Its ceramic rod actuator and robust construction make it suitable for demanding applications where precise mechanical detection and long operational life are required.

Lovato KCH1S11 Features

  • K Series industrial limit switch
  • Ceramic rod lever actuator
  • 1NO + 1NC snap-action contacts
  • Polymer thermoplastic housing
  • Two side M20 cable entries
  • EN 50047 compatible dimensions
  • IP65 protection rating
  • Suitable for industrial automation and machine control applications

Applications

The Lovato KCH1S11 limit switch is commonly used in industrial machinery, conveyors, packaging equipment, automation systems, material handling equipment, and mechanical position monitoring applications.

Why Choose Lovato KCH1S11?

The Lovato KCH1S11 combines precise mechanical operation, durable construction, and reliable snap-action switching technology, making it an effective solution for industrial control systems requiring accurate position detection.

Technical Specifications

Weight [g] 130
Qty. per package 1
Multiple qty. of packs per order 1
Package dimensions [mm] 150X060X036
Volume [cm³] 324
Bar code [EAN13] 8013975127452
Product designation Ceramic rod lever
Product type designation KCH
Housing Polymer thermoplastic
Rod Ceramic
Type of contact 1NO+1NC Snap action
Thermal current Ith 10
IEC/EN 60947-5-1 designation A600 Q600
Rated insulation voltage Ui [V] 690
Rated impulse withstand voltage Uimp 6
Insulation class II
Short-circuit protection with fuse 10 gG/SC QUICK FUSE
min 16
max 14
IEC Conventional free air thermal current Ith 10
Resistance per pole (average value) <10
Operating head fixing Locking bayonet insert
min [mm²] 1.5
max [mm²] 2.5
Cable connection Self-releasing screw terminal
Cable entry M20 on the sides
Mechanical life <10000000
Mechanical operation 3600
min [°C] -40
max [°C] +70
Terminals IP20
Body housing IP65
Pollution degree 3
ETIM 8.0 EC000030 - End switch
HS Code 85365080
Housing Material Plastic
Connection M20 cable entry

Frequently Asked Questions

What actuator does the Lovato KCH1S11 use?

The Lovato KCH1S11 uses a ceramic rod lever actuator designed for accurate mechanical position sensing.

What contact arrangement does the Lovato KCH1S11 have?

The KCH1S11 features one normally open (NO) and one normally closed (NC) snap-action contact arrangement.

Where can the Lovato KCH1S11 be used?

It is suitable for industrial automation, machine tools, conveyors, and equipment monitoring systems requiring reliable limit detection.
