KCL1S02 - ADJ PLASTIC ROD LEVER 2 ENTRIES L/S 2NC

KCL1S02 – ADJ PLASTIC ROD LEVER 2 ENTRIES L/S 2NC

Lovato Electric KCL1S02 electrical installation component for professional commercial and industrial assemblies, suitable for maintenance, replacement and panel building applications.

SKU: KCL1S02MPN: KCL1S02
Price
List Price £57.78 ex VAT
Your Price (ex VAT)
£57.78
Manufacturer Lead Time Please contact us for a delivery time before you order
Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Sign up for a trade account Quick & easy setup
SUBTOTAL (EX VAT) £57.78
Trade pricing is personalised to your account

Manufacturer Lead Time

£57.78

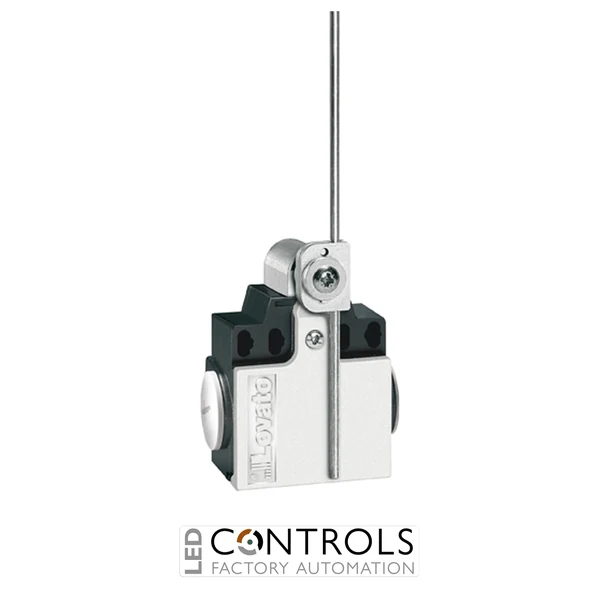

Lovato KCL1S02 Limit Switch - Adjustable Rod Lever, 2NC Snap Action Contacts

The Lovato KCL1S02 is a K Series industrial limit switch designed for accurate mechanical position detection and reliable automation control applications. Featuring an adjustable plastic rod lever actuator, polymer thermoplastic housing, and two normally closed snap-action contacts, this limit switch delivers dependable switching performance for industrial machinery and control systems.

Designed with EN 50047 compatible dimensions, the Lovato KCL1S02 features two side cable entries, M20 connection, IP65 protection, and a 200mm adjustable plastic rod actuator. Its compact and robust construction makes it suitable for conveyors, machine tools, packaging equipment, and industrial automation systems requiring reliable position sensing.

Lovato KCL1S02 Features

  • K Series industrial limit switch
  • Adjustable plastic rod lever actuator
  • 200mm adjustable rod length
  • 2NC normally closed snap-action contacts
  • Polymer thermoplastic housing
  • Two side M20 cable entries
  • EN 50047 compatible dimensions
  • IP65 protection rating
  • Suitable for industrial automation and machine control applications

Applications

The Lovato KCL1S02 limit switch is commonly used in industrial automation equipment, conveyors, packaging machines, machine tools, material handling systems, and mechanical position monitoring applications where accurate and reliable switching is required.

Why Choose Lovato KCL1S02?

The Lovato KCL1S02 combines durable industrial construction, flexible adjustable rod operation, and reliable snap-action contacts. Its compact K Series design provides engineers with a dependable solution for mechanical position detection in automated systems.

Technical Specifications

Weight [g] 134
Qty. per package 1
Multiple qty. of packs per order 1
Package dimensions [mm] 185X041X085
Volume [cm³] 644.725
Bar code [EAN13] 8013975127520
Product designation Adjustable rod lever
Product type designation KCL
Housing Polymer thermoplastic
Rod Aluminium-zinc alloy
Type of contact 2NC Snap action
Thermal current Ith 10
IEC/EN 60947-5-1 designation A600 Q600
Rated insulation voltage Ui [V] 690
Rated impulse withstand voltage Uimp 6
Insulation class II
Short-circuit protection with fuse 10 gG/SC QUICK FUSE
min 16
max 14
IEC Conventional free air thermal current Ith 10
Resistance per pole (average value) <10
Operating head fixing Locking bayonet insert
min [mm²] 1.5
max [mm²] 2.5
Cable connection Self-releasing screw terminal
Cable entry M20 on the sides
Mechanical life <10000000
Mechanical operation 3600
min [°C] -40
max [°C] +70
Terminals IP20
Body housing IP65
Pollution degree 3
ETIM 8.0 EC000030 - End switch
HS Code 85365080
Housing Material Plastic
Connection M20 cable entry

Frequently Asked Questions

What actuator does the Lovato KCL1S02 use?

The Lovato KCL1S02 uses an adjustable plastic rod lever actuator with a 200mm rod length for flexible mechanical position sensing.

What contact arrangement does the Lovato KCL1S02 have?

The KCL1S02 features two normally closed (2NC) snap-action contacts.

Where can the Lovato KCL1S02 be used?

It is suitable for industrial machinery, conveyors, automation systems, and equipment position monitoring applications.
