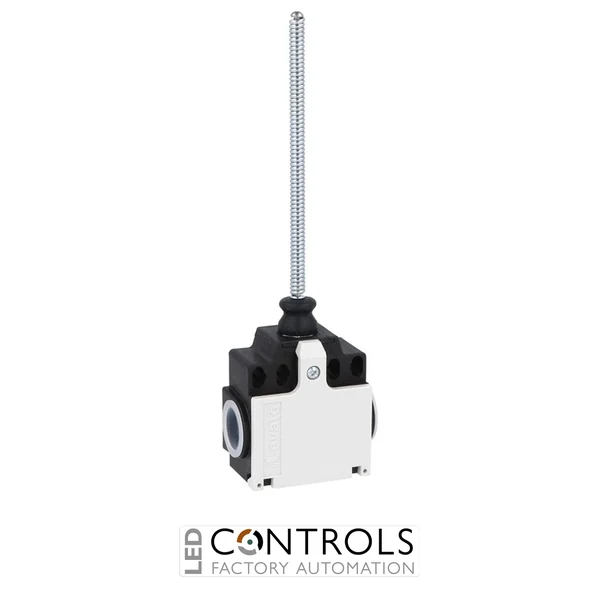

Why Choose the Lovato KCM1S02 Omnidirectional Wobble Stick Limit Switch?
The Lovato KCM1S02 is an industrial K series limit switch with an omnidirectional wobble stick, designed for position, movement and presence detection in machinery and automation systems. Its flexible rod can be actuated from multiple directions, making the switch particularly useful where the direction of mechanical contact can vary during operation.
The KCM1S02 combines a durable polymer thermoplastic housing with a flexible rod actuator and dimensions compatible with EN 50047. Its electrical configuration consists of 2NC snap-action contacts, providing two normally closed contacts with rapid switching action.
With M20 cable entries on the sides and an IP65 body housing protection rating, the KCM1S02 is designed for practical integration into industrial machinery. Self-releasing screw terminals simplify conductor connection, while the locking bayonet operating-head fixing provides a robust mechanical assembly for demanding automation applications.
Key Advantages
- Industrial omnidirectional wobble stick limit switch for machinery applications.
- Flexible rod actuator enables operation from multiple directions.
- 2NC snap-action contacts provide rapid electromechanical switching.
- Dimensions compatible with EN 50047 for standardised machine installations.
- M20 side cable entries provide practical wiring access.
- IP65 body housing provides protection for industrial operating environments.
Key Features
- Lovato Electric K series limit switch.
- Omnidirectional wobble stick product designation.
- Flexible rod actuator.
- 2NC snap-action contact configuration.
- 10 A conventional free-air thermal current (Ith).
- 690 V rated insulation voltage (Ui).
- 6 kV rated impulse withstand voltage (Uimp).
- IP65 body housing protection.
Omnidirectional Position Detection for Industrial Machinery
Wobble stick limit switches are mechanically operated position switches that can respond to contact with their actuator from multiple directions. This makes them useful for detecting moving machine components, materials or objects where the precise direction of contact cannot always be restricted to a single axis.
The Lovato KCM1S02 combines an omnidirectional flexible rod with 2NC snap-action contacts. Its polymer thermoplastic housing, EN 50047-compatible dimensions and M20 side cable entries make it a practical solution for machine builders and automation engineers requiring robust multidirectional mechanical detection.
Typical Applications
- Industrial machinery position and movement detection.
- Conveyor and material handling systems.
- Automated production and assembly equipment.
- Packaging and processing machinery.
- Object and component presence detection.
- OEM automation and machine-building applications.
