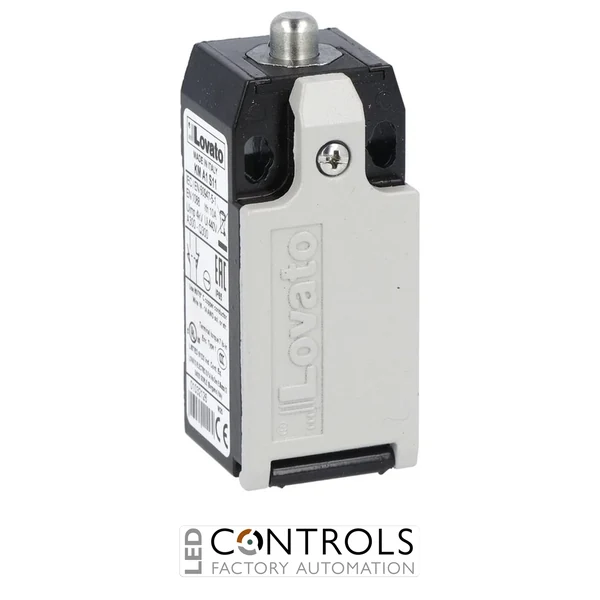

KMA1S02 - TOP PLUNGER METAL LIMIT SWITCH 2NC

KMA1S02 – TOP PLUNGER METAL LIMIT SWITCH 2NC

Lovato Electric KMA1S02 electrical installation component for professional commercial and industrial assemblies, suitable for maintenance, replacement and panel building applications.

SKU: KMA1S02MPN: KMA1S02
Price
List Price £53.68 ex VAT
Your Price (ex VAT)
£53.68
Manufacturer Lead Time Please contact us for a delivery time before you order
Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Sign up for a trade account Quick & easy setup
SUBTOTAL (EX VAT) £53.68
Trade pricing is personalised to your account

Manufacturer Lead Time

£53.68

Lovato KMA1S02 Metal Limit Switch with Top Push Rod Plunger

The Lovato KMA1S02 is a rugged industrial metal limit switch designed for accurate mechanical position detection in automation, machinery, and industrial control applications. Featuring a top push rod plunger actuator, aluminium-zinc alloy construction, and 2NC snap-action contacts, the KMA1S02 provides reliable switching performance in demanding industrial environments.

Part of the Lovato Electric K Series limit switch range, the KMA1S02 features an EN 50047 compliant metal body design, metal plunger actuator, and bottom M20 cable entry. Its compact and durable construction makes it suitable for machine control, automation equipment, and industrial position sensing applications.

Key Features

  • Manufacturer: Lovato Electric
  • Model: KMA1S02
  • Product type: Industrial metal limit switch
  • K Series design
  • Top push rod plunger actuator
  • Contact configuration: 2NC snap action
  • Aluminium-zinc alloy housing
  • Aluminium-zinc alloy metal plunger
  • Bottom M20 cable entry
  • EN 50047 compliant dimensions
  • Suitable for industrial position detection applications

Applications

The Lovato KMA1S02 limit switch is suitable for industrial machinery, conveyor systems, production equipment, automation panels, and control applications where reliable mechanical position sensing and fast switching response are required.

Why Choose Lovato KMA1S02?

With its robust metal construction, precise plunger actuator, snap-action normally closed contacts, and industrial-grade protection, the Lovato KMA1S02 delivers dependable operation and long service life for professional automation systems.

Technical Specifications

Weight [g] 150
Qty. per package 1
Multiple qty. of packs per order 1
Package dimensions [mm] 100X044X032
Volume [cm³] 140.8
Bar code [EAN13] 8013975115572
Product designation Top push rod plunger
Product type designation KMA
Housing Aluminium-zinc alloy
Rod Aluminium-zinc alloy
Type of contact 2NC Snap action
Thermal current Ith 10
IEC/EN 60947-5-1 designation A300 Q300
Rated insulation voltage Ui [V] 440
Rated impulse withstand voltage Uimp 4
Insulation class II
Short-circuit protection with fuse 10 gG/SC QUICK FUSE
min 16
max 14
IEC Conventional free air thermal current Ith 10
Resistance per pole (average value) <10
Operating head fixing Locking bayonet insert
min [mm²] 1.5
max [mm²] 2.5
Cable connection Self-releasing screw terminal
Cable entry M20 on the bottom
Mechanical life <10000000
Mechanical operation 3600
min [°C] -40
max [°C] +70
Terminals IP20
Body housing IP65
Pollution degree 3
ETIM 8.0 EC000030 - End switch
HS Code 85365080
Housing Material Metal
Connection M20 cable entry

Frequently Asked Questions

What is the Lovato KMA1S02 used for?

The Lovato KMA1S02 is used for mechanical position detection in industrial automation, machinery, and control systems.

What type of actuator does the KMA1S02 use?

The Lovato KMA1S02 uses a top push rod plunger actuator with a metal plunger.

What contacts are fitted on the Lovato KMA1S02?

The Lovato KMA1S02 features two normally closed (2NC) snap-action contacts.
