KMC2S11 – METAL ROLLER CENTRE LEVER 1NO+1NC SNAP A

Q: What type of actuator does the Lovato KMC2S11 use?

The Lovato KMC2S11 uses a metal roller centre push lever actuator for industrial position detection applications.

Q: What contact configuration does the KMC2S11 have?

The Lovato KMC2S11 features 1 normally open and 1 normally closed snap-action contact configuration.

Q: What cable entry does the Lovato KMC2S11 use?

The KMC2S11 uses an M20 cable entry located at the bottom of the housing.

Q: Is the Lovato KMC2S11 suitable for industrial environments?

Yes. The KMC2S11 features an aluminium-zinc alloy housing and IP65 protection for reliable operation in industrial applications.

Lovato Electric KMC2S11 electrical installation component for professional commercial and industrial assemblies, suitable for maintenance, replacement and panel building applications.

SKU: KMC2S11MPN: KMC2S11

List Price £50.78 ex VAT

Your Price (ex VAT)

£50.78

Manufacturer Lead Time Please contact us for a delivery time before you order

Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Quantity:

SUBTOTAL (EX VAT) £50.78

Trade pricing is personalised to your account

Manufacturer Lead Time

£50.78

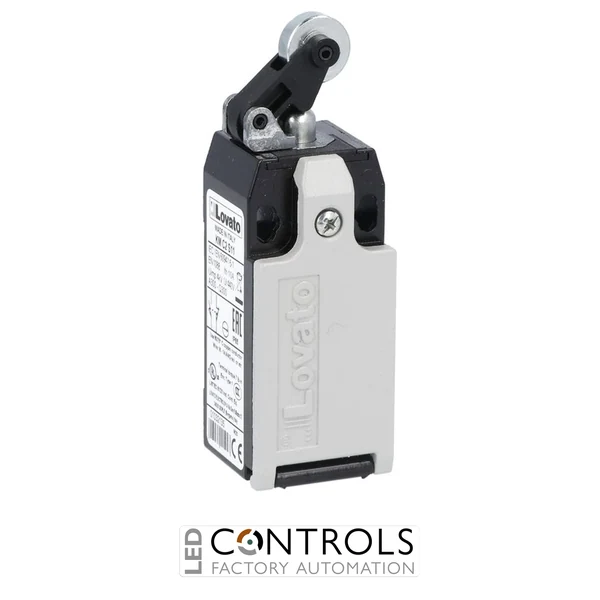

Lovato KMC2S11 Limit Switch | K Series Metal Roller Centre Push Lever 1NO+1NC Snap Action

Lovato KMC2S11 Limit Switch – K Series Metal Roller Centre Push Lever, 1NO+1NC Snap Action

The Lovato KMC2S11 is a durable industrial limit switch from the Lovato Electric K Series, designed for accurate position detection and reliable machine control applications. Featuring a metal roller centre push lever actuator, aluminium-zinc alloy housing, and 1NO+1NC snap-action contacts, the KMC2S11 provides fast and dependable switching performance in industrial environments.

The KMC2S11 is manufactured to EN 50047 dimensional standards and features a rugged metal body, M20 bottom cable entry, and IP65 protection. Its compact design and reliable snap-action mechanism make it suitable for automation systems, manufacturing machinery, conveyors, and industrial control applications.

Product Features

Manufacturer: Lovato Electric
Part Number: KMC2S11
Product Type: K Series Metal Limit Switch
Actuator Type: Metal roller centre push lever
Contact Configuration: 1NO + 1NC snap action contacts
Housing Material: Aluminium-zinc alloy
Roller Material: Metal
Cable Entry: M20 bottom entry
Protection Rating: IP65
Thermal Current: 10A
Rated Insulation Voltage: 440V
Operating Temperature: -25°C to +70°C
Certifications: cULus, EAC, CCC

Applications

Industrial automation equipment
Machine position sensing
Manufacturing machinery
Conveyor systems
Material handling equipment
Industrial control circuits
Mechanical end-position detection

Why Choose Lovato KMC2S11?

The Lovato KMC2S11 offers reliable snap-action switching with a robust aluminium-zinc alloy housing, metal roller actuator, and IP65 protection. Its 1NO+1NC contact arrangement provides flexible switching options for industrial automation and control applications where dependable position monitoring is required.

Technical Specifications

Weight [g]	160
Qty. per package	1
Multiple qty. of packs per order	1
Package dimensions [mm]	100X044X032
Volume [cm³]	140.8
Bar code [EAN13]	8013975115947
Product designation	Roller centre push lever
Product type designation	KMC
Housing	Aluminium-zinc alloy
Roller	Metal
Type of contact	1NO+1NC Snap action
Thermal current Ith	10
IEC/EN 60947-5-1 designation	A300 Q300
Rated insulation voltage Ui [V]	440
Rated impulse withstand voltage Uimp	4
Short-circuit protection with fuse	10 gG/SC QUICK FUSE
min	16
max	14
IEC Conventional free air thermal current Ith	10
Resistance per pole (average value)	<10
Operating head fixing	Locking bayonet insert
min [mm²]	1.5
max [mm²]	2.5
Cable connection	Self-releasing screw terminal
Cable entry	M20 on the bottom
Mechanical life	<10000000
Mechanical operation	3600
min [°C]	-40
max [°C]	+70
Terminals	IP20
Body housing	IP65
Pollution degree	3
ETIM 8.0	EC000030 - End switch
HS Code	85365080
Housing Material	Metal
Connection	M20 cable entry

Frequently Asked Questions

What type of actuator does the Lovato KMC2S11 use?

The Lovato KMC2S11 uses a metal roller centre push lever actuator for industrial position detection applications.

What contact configuration does the KMC2S11 have?

The Lovato KMC2S11 features 1 normally open and 1 normally closed snap-action contact configuration.

What cable entry does the Lovato KMC2S11 use?

The KMC2S11 uses an M20 cable entry located at the bottom of the housing.

Is the Lovato KMC2S11 suitable for industrial environments?

Yes. The KMC2S11 features an aluminium-zinc alloy housing and IP65 protection for reliable operation in industrial applications.

Weight [g]	160
Qty. per package	1
Multiple qty. of packs per order	1
Package dimensions [mm]	100X044X032
Volume [cm³]	140.8
Bar code [EAN13]	8013975115947
Product designation	Roller centre push lever
Product type designation	KMC
Housing	Aluminium-zinc alloy
Roller	Metal
Type of contact	1NO+1NC Snap action
Thermal current Ith	10
IEC/EN 60947-5-1 designation	A300 Q300
Rated insulation voltage Ui [V]	440
Rated impulse withstand voltage Uimp	4
Short-circuit protection with fuse	10 gG/SC QUICK FUSE
min	16
max	14
IEC Conventional free air thermal current Ith	10
Resistance per pole (average value)	<10
Operating head fixing	Locking bayonet insert
min [mm²]	1.5
max [mm²]	2.5
Cable connection	Self-releasing screw terminal
Cable entry	M20 on the bottom
Mechanical life	<10000000
Mechanical operation	3600
min [°C]	-40
max [°C]	+70
Terminals	IP20
Body housing	IP65
Pollution degree	3
ETIM 8.0	EC000030 - End switch
HS Code	85365080
Housing Material	Metal
Connection	M20 cable entry
