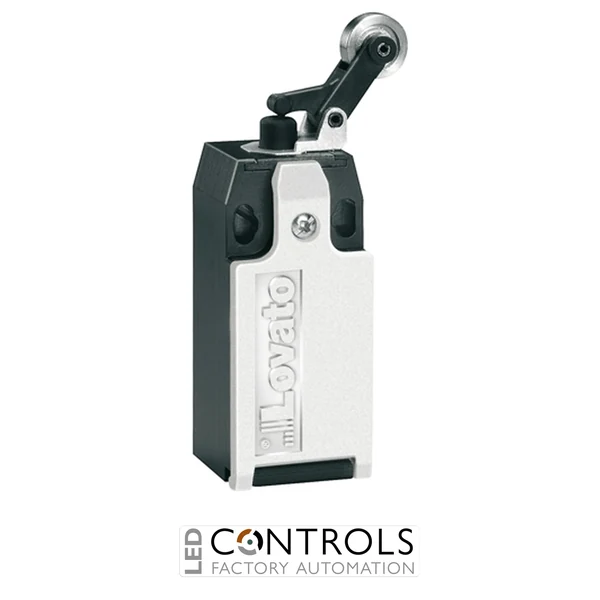

KMD1L12 – ROLLER SIDE PUSH LEVER 1NO+2NC SLOW BR.

Q: What type of actuator does the Lovato KMD1L12 use?

The Lovato KMD1L12 uses a plastic roller side push lever actuator designed for industrial position detection applications.

Q: What contact configuration does the KMD1L12 have?

The Lovato KMD1L12 features one normally open and two normally closed slow-action contacts.

Q: What cable entry does the Lovato KMD1L12 use?

The KMD1L12 uses an M20 cable entry located at the bottom of the housing.

Q: Is the Lovato KMD1L12 suitable for industrial environments?

Yes. The KMD1L12 features an aluminium-zinc alloy housing and IP65 protection for reliable operation in industrial applications.

Lovato Electric KMD1L12 electrical installation component for professional commercial and industrial assemblies, suitable for maintenance, replacement and panel building applications.

SKU: KMD1L12MPN: KMD1L12

List Price £61.98 ex VAT

Your Price (ex VAT)

£61.98

Manufacturer Lead Time Please contact us for a delivery time before you order

Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Quantity:

SUBTOTAL (EX VAT) £61.98

Trade pricing is personalised to your account

Manufacturer Lead Time

£61.98

Lovato KMD1L12 Limit Switch | K Series Plastic Roller Side Push Lever 1NO+2NC Slow Action

Lovato KMD1L12 Limit Switch – K Series Plastic Roller Side Push Lever, 1NO+2NC Slow Action

The Lovato KMD1L12 is a rugged industrial limit switch from the Lovato Electric K Series, designed for accurate position detection and reliable machine control applications. Featuring a plastic roller side push lever actuator, aluminium-zinc alloy housing, and 1NO+2NC slow-action contacts, the KMD1L12 provides dependable switching performance in demanding industrial environments.

Manufactured to EN 50047 dimensional standards, the Lovato KMD1L12 combines a durable metal body with a plastic roller actuator, M20 bottom cable entry, and IP65 protection. It is suitable for automation systems, manufacturing equipment, conveyors, and industrial control applications requiring reliable mechanical position sensing.

Product Features

Manufacturer: Lovato Electric
Part Number: KMD1L12
Product Type: K Series Metal Limit Switch
Actuator Type: Plastic roller side push lever
Contact Configuration: 1NO + 2NC slow action contacts
Housing Material: Aluminium-zinc alloy
Roller Material: Plastic
Roller Diameter: 14mm
Cable Entry: M20 bottom entry
Protection Rating: IP65
Thermal Current: 10A
Rated Insulation Voltage: 440V
Operating Temperature: -25°C to +70°C
Standards: EN 50047, IEC/EN 60947-1, IEC/EN 60947-5-1

Applications

Industrial automation equipment
Machine position monitoring
Manufacturing machinery
Conveyor systems
Material handling equipment
Industrial control circuits
Mechanical end-position detection

Why Choose Lovato KMD1L12?

The Lovato KMD1L12 provides reliable industrial switching with a strong aluminium-zinc alloy housing, plastic roller actuator, and IP65 protection. Its 1NO+2NC slow-action contact arrangement provides flexible switching options for automation and machinery applications requiring multiple contact outputs.

Technical Specifications

Weight [g]	166
Qty. per package	1
Multiple qty. of packs per order	1
Package dimensions [mm]	100X044X032
Volume [cm³]	140.8
Bar code [EAN13]	8013975115992
Product designation	Roller side push lever
Product type designation	KMD
Housing	Aluminium-zinc alloy
Roller	Plastic
Type of contact	1NO+1NC Slow action
Thermal current Ith	10
IEC/EN 60947-5-1 designation	A300 Q300
Rated insulation voltage Ui [V]	440
Rated impulse withstand voltage Uimp	4
Short-circuit protection with fuse	10 gG/SC QUICK FUSE
min	16
max	14
IEC Conventional free air thermal current Ith	10
Resistance per pole (average value)	<10
Operating head fixing	Locking bayonet insert
min [mm²]	1.5
max [mm²]	2.5
Cable connection	Self-releasing screw terminal
Cable entry	M20 on the bottom
Mechanical life	<10000000
Mechanical operation	3600
min [°C]	-40
max [°C]	+70
Terminals	IP20
Body housing	IP65
Pollution degree	3
ETIM 8.0	EC000030 - End switch
HS Code	85365080
Housing Material	Metal
Connection	M20 cable entry

Frequently Asked Questions

What type of actuator does the Lovato KMD1L12 use?

The Lovato KMD1L12 uses a plastic roller side push lever actuator designed for industrial position detection applications.

What contact configuration does the KMD1L12 have?

The Lovato KMD1L12 features one normally open and two normally closed slow-action contacts.

What cable entry does the Lovato KMD1L12 use?

The KMD1L12 uses an M20 cable entry located at the bottom of the housing.

Is the Lovato KMD1L12 suitable for industrial environments?

Yes. The KMD1L12 features an aluminium-zinc alloy housing and IP65 protection for reliable operation in industrial applications.

Weight [g]	166
Qty. per package	1
Multiple qty. of packs per order	1
Package dimensions [mm]	100X044X032
Volume [cm³]	140.8
Bar code [EAN13]	8013975115992
Product designation	Roller side push lever
Product type designation	KMD
Housing	Aluminium-zinc alloy
Roller	Plastic
Type of contact	1NO+1NC Slow action
Thermal current Ith	10
IEC/EN 60947-5-1 designation	A300 Q300
Rated insulation voltage Ui [V]	440
Rated impulse withstand voltage Uimp	4
Short-circuit protection with fuse	10 gG/SC QUICK FUSE
min	16
max	14
IEC Conventional free air thermal current Ith	10
Resistance per pole (average value)	<10
Operating head fixing	Locking bayonet insert
min [mm²]	1.5
max [mm²]	2.5
Cable connection	Self-releasing screw terminal
Cable entry	M20 on the bottom
Mechanical life	<10000000
Mechanical operation	3600
min [°C]	-40
max [°C]	+70
Terminals	IP20
Body housing	IP65
Pollution degree	3
ETIM 8.0	EC000030 - End switch
HS Code	85365080
Housing Material	Metal
Connection	M20 cable entry
