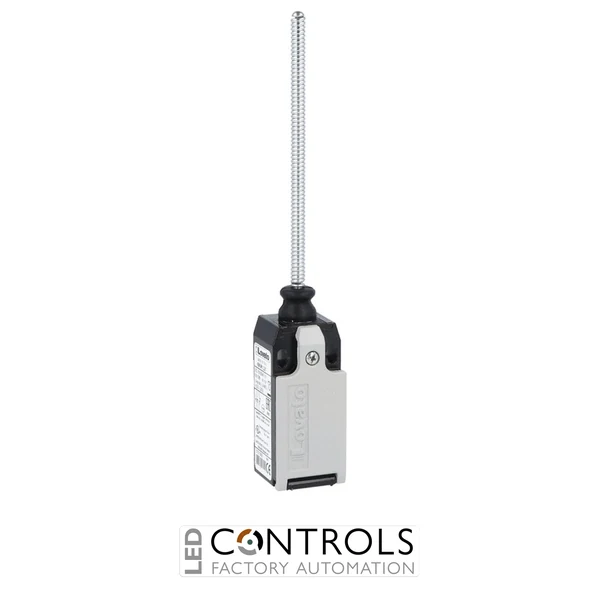

Why Choose the Lovato KMM1A11 Omnidirectional Wobble Stick Limit Switch?
The Lovato KMM1A11 is an industrial omnidirectional wobble stick limit switch designed for position, movement and presence detection in machinery and automation systems. Its flexible rod actuator can be operated from multiple directions, making it particularly suitable for applications where mechanical contact may approach the switch from different angles.
The KMM1A11 combines a robust aluminium-zinc alloy housing with a flexible rod actuator and 1NO + 1NC slow-action make-before-break contacts. This overlapping contact arrangement provides one normally open and one normally closed contact with defined slow-action switching behaviour for industrial control applications.
With an M20 bottom cable entry, self-releasing screw terminals and an IP65 body housing protection rating, the KMM1A11 is designed for dependable installation in industrial environments. Its metal construction and multidirectional actuator make it a practical solution for machine builders and automation engineers requiring robust mechanical position detection.
Key Advantages
- Industrial omnidirectional wobble stick limit switch for machinery applications.
- Flexible rod actuator enables operation from multiple directions.
- 1NO + 1NC slow-action make-before-break contacts.
- Robust aluminium-zinc alloy housing for industrial installations.
- M20 bottom cable entry for straightforward wiring.
- IP65 body housing protection for demanding operating environments.
Key Features
- Lovato Electric K series limit switch.
- Omnidirectional wobble stick actuator design.
- Flexible rod.
- 1NO + 1NC slow-action make-before-break contacts.
- 10 A conventional free-air thermal current (Ith).
- 440 V rated insulation voltage (Ui).
- 4 kV rated impulse withstand voltage (Uimp).
- IP65 body housing protection.
Omnidirectional Position Detection for Industrial Machinery
Wobble stick limit switches provide mechanical detection where an actuator may be contacted from different directions. Movement of the flexible rod operates the internal electrical contacts, allowing machinery and control systems to detect the presence, position or movement of compatible mechanical components and materials.
The Lovato KMM1A11 combines a flexible omnidirectional actuator with a metal aluminium-zinc alloy housing and 1NO + 1NC slow-action make-before-break contacts. Its IP65 housing and M20 bottom cable entry make it well suited to industrial automation and machine-control installations requiring multidirectional mechanical detection.
Typical Applications
- Industrial machinery position and movement detection.
- Conveyor and material handling systems.
- Automated production and assembly equipment.
- Packaging and processing machinery.
- Object and component presence detection.
- OEM automation and machine-building applications.
