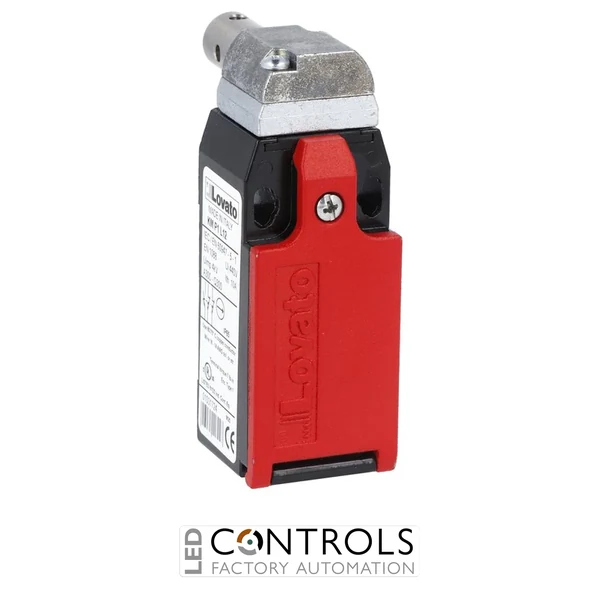

KMP1L12 – HINGE METAL SAFETY SWITCH 1NO+ 2NC SLOW

Q: What is the Lovato KMP1L12 used for?

The Lovato KMP1L12 is used for monitoring machine positions, safety guards and mechanical movement in industrial automation systems.

Q: What contact arrangement does the KMP1L12 have?

The KMP1L12 features one normally open contact and two normally closed contacts with slow action switching.

Q: Is the Lovato KMP1L12 suitable for safety applications?

Yes. The KMP1L12 includes forced opening contacts and is designed for industrial safety monitoring applications.

Q: What cable connection does the KMP1L12 use?

The switch uses an M20 cable entry located on the bottom of the enclosure.

Q: What environments can the KMP1L12 operate in?

The KMP1L12 is suitable for industrial environments with an operating temperature range from -25°C to +70°C and IP65 protection.

Lovato Electric KMP1L12 electrical installation component for professional commercial and industrial assemblies, suitable for maintenance, replacement and panel building applications.

SKU: KMP1L12MPN: KMP1L12

List Price £106.12 ex VAT

Your Price (ex VAT)

£106.12

Manufacturer Lead Time Please contact us for a delivery time before you order

Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Quantity:

SUBTOTAL (EX VAT) £106.12

Trade pricing is personalised to your account

Manufacturer Lead Time

£106.12

Lovato KMP1L12 Metal Safety Limit Switch 1NO+2NC Slow Action

The Lovato Electric KMP1L12 is a high-quality metal safety limit switch designed for industrial automation, machinery monitoring and safety control applications. Featuring a robust aluminium-zinc alloy housing, forced opening contacts and a 1NO + 2NC slow action contact configuration, the KMP1L12 provides reliable position detection and machine safety switching performance in demanding industrial environments.

Part of the Lovato K series range, the KMP1L12 is designed with EN 50047 compliant dimensions, M20 bottom cable entry and IP65 protection, making it suitable for industrial equipment, safety guards, automation systems and OEM machinery applications.

Why Choose the Lovato Electric KMP1L12?

Industrial metal construction: Durable aluminium-zinc alloy housing for demanding applications.
Safety contact configuration: Includes 1NO + 2NC slow action contacts for flexible control circuits.
Forced opening operation: Suitable for machine safety monitoring applications.
Reliable protection: IP65 enclosure rating helps protect against dust and water ingress.
Compact installation: EN 50047 dimensions with M20 bottom cable entry for easy integration.

Applications

Machine guard monitoring
Industrial safety circuits
Automation equipment
Manufacturing machinery
Control panel installations
OEM machine building projects

Technical Specifications

Weight [g]	250
Qty. per package	1
Multiple qty. of packs per order	1
Package dimensions [mm]	065X046X090
Volume [cm³]	269.1
Bar code [EAN13]	8013975117248
Product designation	Hinge operating
Product type designation	KMP
Housing Material	Aluminium-zinc alloy
Rod material	Short cylinder hinge
Type of contact	1NO+2NC Slow action
Thermal current Ith	10
IEC/EN 60947-5-1 designation	A300 Q300
Rated insulation voltage Ui [V]	440
Rated impulse withstand voltage Uimp	4
Short-circuit protection with fuse	10 gG/SC QUICK FUSE
min	16
max	14
IEC Conventional free air thermal current Ith	10
Resistance per pole (average value)	<10
Mechanical life	100000
B10d	100000
Mechanical operation	3600
Operating head fixing	Locking bayonet insert
min [mm²]	1.5
max [mm²]	2.5
Cable connection	Self-releasing screw terminal
Cable entry	M20 on the bottom
Pollution degree	3
min [°C]	-40
max [°C]	+70
ETIM 8.0	EC000030 - End switch
HS Code	85365080
Housing Material	Metal
Connection	M20 cable entry

Frequently Asked Questions

What is the Lovato KMP1L12 used for?

The Lovato KMP1L12 is used for monitoring machine positions, safety guards and mechanical movement in industrial automation systems.

What contact arrangement does the KMP1L12 have?

The KMP1L12 features one normally open contact and two normally closed contacts with slow action switching.

Is the Lovato KMP1L12 suitable for safety applications?

Yes. The KMP1L12 includes forced opening contacts and is designed for industrial safety monitoring applications.

What cable connection does the KMP1L12 use?

The switch uses an M20 cable entry located on the bottom of the enclosure.

What environments can the KMP1L12 operate in?

The KMP1L12 is suitable for industrial environments with an operating temperature range from -25°C to +70°C and IP65 protection.

Common Search Terms

Lovato KMP1L12, Lovato Electric KMP1L12, KMP1L12 safety limit switch, Lovato K series limit switch, metal safety switch 1NO 2NC, industrial limit switch Lovato.

Weight [g]	250
Qty. per package	1
Multiple qty. of packs per order	1
Package dimensions [mm]	065X046X090
Volume [cm³]	269.1
Bar code [EAN13]	8013975117248
Product designation	Hinge operating
Product type designation	KMP
Housing Material	Aluminium-zinc alloy
Rod material	Short cylinder hinge
Type of contact	1NO+2NC Slow action
Thermal current Ith	10
IEC/EN 60947-5-1 designation	A300 Q300
Rated insulation voltage Ui [V]	440
Rated impulse withstand voltage Uimp	4
Short-circuit protection with fuse	10 gG/SC QUICK FUSE
min	16
max	14
IEC Conventional free air thermal current Ith	10
Resistance per pole (average value)	<10
Mechanical life	100000
B10d	100000
Mechanical operation	3600
Operating head fixing	Locking bayonet insert
min [mm²]	1.5
max [mm²]	2.5
Cable connection	Self-releasing screw terminal
Cable entry	M20 on the bottom
Pollution degree	3
min [°C]	-40
max [°C]	+70
ETIM 8.0	EC000030 - End switch
HS Code	85365080
Housing Material	Metal
Connection	M20 cable entry
